1300 degree high temperature box type resistance furnace series

NegotiableUpdate on 02/27

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The 1300 degree box type high-temperature resistance furnace is divided into electric furnace wire muffle furnace, silicon carbon rod muffle furnace, and silicon molybdenum rod muffle furnace according to heating elements; According to the rated temperature, there are 900 degree series muffle furnaces, 1000 degree muffle furnaces, 1200 degree muffle furnaces, and 1300 degree muffle furnaces

Product Details

1300Box type high-temperature resistance furnace

Resistance furnaces are divided into electric furnace wire muffle furnace, silicon carbon rod muffle furnace, and silicon molybdenum rod muffle furnace according to heating elements; According to the rated temperature, there are 900 degree series muffle furnaces, 1000 degree muffle furnaces, 1200 degree muffle furnaces, and 1300 degree muffle furnaces. This product is heated with a silicon carbon rod at 1300 degrees.

Application scope

Resistance furnaces are widely used in the inspection of drugs, pre-treatment of medical samples, thermal processing of small workpieces in the cement and building materials industries, as well as sample processing in fields such as water quality analysis, environmental analysis, petroleum analysis, and coal quality analysis.

Product advantages

The resistance furnace produced by our company adopts a digital temperature controller, which has precise temperature control, intuitive display, and beautiful appearance.

Technical Parameter

model Model	Studio size (mm) Height * Width * Depth	Dimensions (mm) Height * Width * Depth	rated temperature （℃）	power （KW）	voltage （V）
SRJX-4-13	100×150×250	540×530×580	1300℃	4	220
SRJX-6-13	100×150×250	600×640×627		6	380
SRJX-8-13	160×250×400	660×555×800		8	380

If the customer requests an over temperature alarm function, temperature setting, and digital display of furnace temperature, the following options can be provided:“D”Resistance Furnace Series:

model Model	Studio size (mm) Height * Width * Depth	Dimensions (mm) Height * Width * Depth	rated temperature （℃）	power （KW）	voltage （V）
SRJX-4-13D	100×150×250	540×530×580	1300℃	4	220
SRJX-6-13D	100×150×250	600×640×627		6	380
SRJX-8-13D	160×250×400	660×555×800		8	380

SX2-6-13 (D) and SRJX-8-13 (D) images:

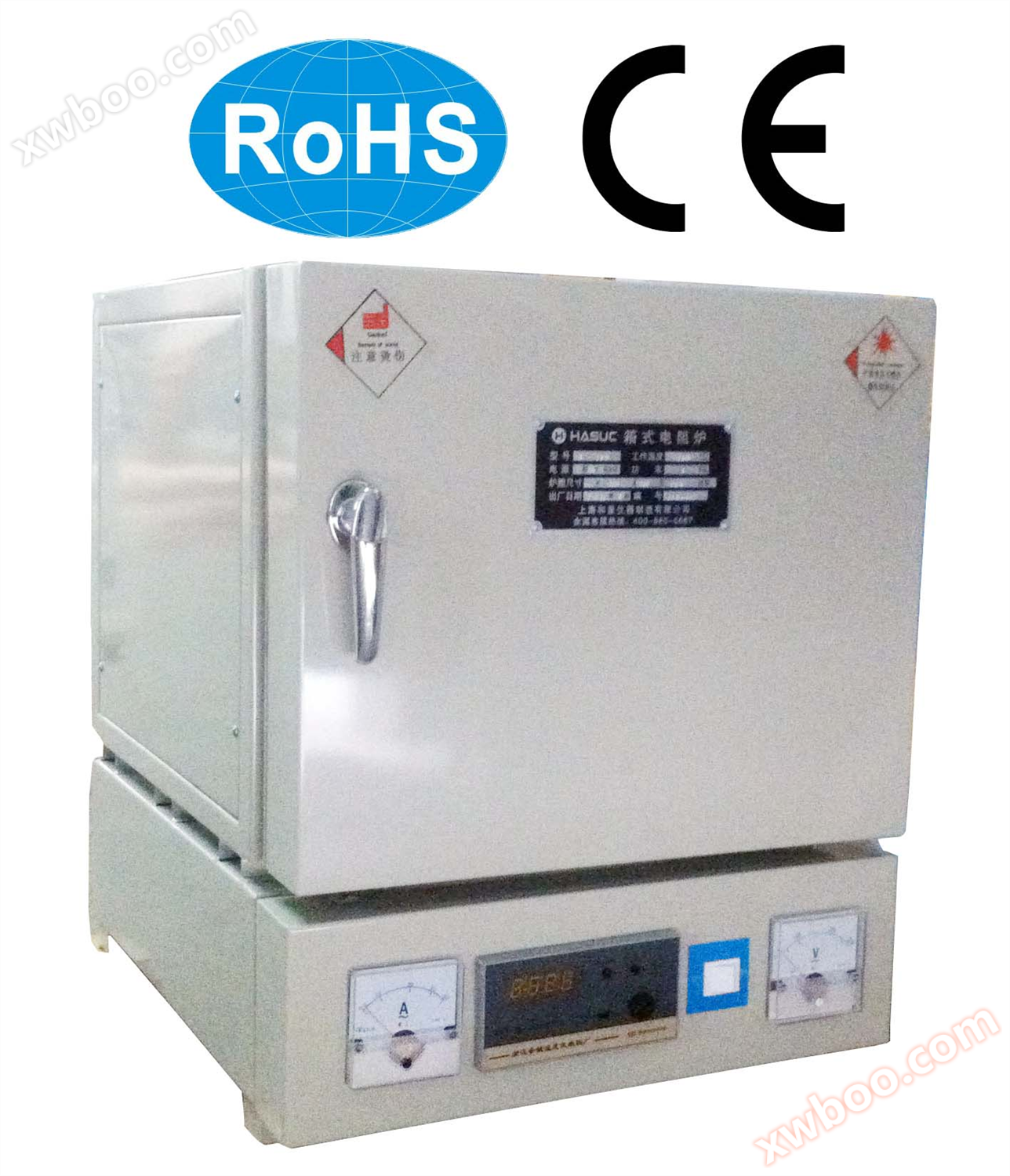

SRJX-4-13 (D) image:

Temperature control instrument:The product adopts comprehensive electromagnetic compatibility design and humanized menu design, and adopts industrial PID self-tuning control technology to solve the problems of temperature overshoot and improve temperature control effect. High brightness wide window digital display, clear and intuitive indication. Microcomputer intelligent control, after setting the temperature, the instrument automatically controls the heating power and displays the heating status, with precise and stable temperature control. Overtemperature alarm and automatic cut-off of heating power supply.

remarks:Customers can also choose Fuji instruments according to their requirements to achieve eight stage programmed temperature control, precise temperature control through non-contact transmission, set temperature, and digital display of furnace temperature simultaneously.(Additional charges apply when ordering)
