3220 fully automatic bagged chili sauce filling machine

3220 fully automatic bagged chili sauce filling machine

Product Overview:
1. Touchscreen display in both Chinese and English, with intuitive and simple operation.
2. The PLC computer control system runs more stably and can adjust any parameters without stopping the machine.
3. It can store ten sets of parameters, making it more accurate to change varieties.
4. Adopting dual servo motor control, film pulling is more accurate and faster.
5. Independent temperature control system with an accuracy of ± 1 ℃.
6. The horizontal and vertical sealing temperatures are independently controlled, which can be well applied to packaging materials such as film and PE film.
7. Diversified packaging styles (three sided sealing, four sided sealing, triangular packaging, handbag), back sealing, corner insertion, continuous bag, punching, etc
8. The production of bags, sealing, packaging, and printing of dates is completed in one go.
Packaging samples:

Application scope:
Widely applicable to liquid, semi fluid, paste, sauce, viscous and other products in multiple industries such as food, seasoning, agricultural products, pharmaceuticals, and daily chemical products.

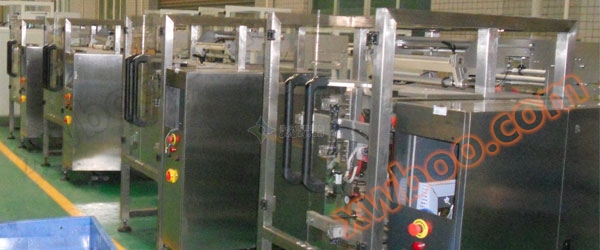

3220 fully automatic bagged chili sauce filling machine factory 1:

Main reference parameters:
Model DBIV-3220
Bag making length 50-200mm (L)
Bag width 50-150mm (W)
Film width 320mm
Packaging speed 8-60bags/min
Measurement range 20-500m
Air pressure 0.65Mpa
Gas consumption 0.6m3/min
Voltage 220VAC/50Hz
Power 1.5KW
Dimensions 1067 (L) X1026 (W) X1288 (H) mm
Machine weight 290Kg
3220 fully automatic bagged chili sauce filling machine factory 2:
