5000KN coupler horizontal tensile testing machine

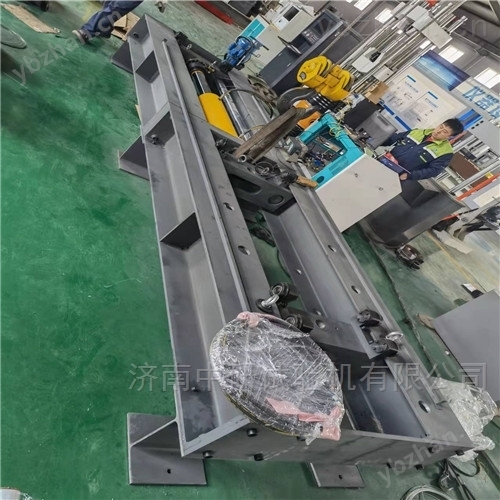

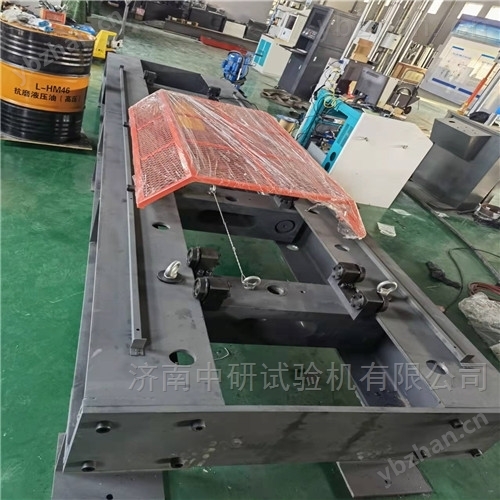

5000KN coupler horizontal tensile testing machineThe main simulation is that the maximum deformation of the hook body under a load of 3115KN is not more than 0.8mm, and the minimum failure load of the hook body is not less than 4005KN. The frame structure is welded with a whole steel plate, and the test force is applied by a single rod double acting piston cylinder. The load sensor measures the force, and the tensile space can be adjusted step by step according to the sample specification length. The computer screen displays the test force and test curve, and automatically processes the test data according to the requirements of the test method. This machine is an ideal inspection equipment for coal power enterprises, coal mine machinery equipment, safety production inspection institutes, technical supervision and other industries. It is suitable for tensile load and failure tests of products such as power lines and cables, porcelain bottles, double hooks, steel strands, safety belts, waist ropes, foot buckles, etc. It requires flexible and convenient operation, slow and stable loading, and Strong abilities and other advantages.

5000KN coupler horizontal tensile testing machineTechnical Indicators:

1. Maximum load: 5000kN

2. Structural form: Single output rod double acting oil cylinder frame structure

3. Test operation height: 700mm

4. Drive control mode: microcomputer controlled electro-hydraulic servo

5. Test type: ambient temperature metal stretching, etc

6. Overload protection: 105% overload protection (no deformation, no mechanical damage)

7. Whole machine noise: not exceeding 70dB

8. Accuracy of load indication: better than ± 1% of indication

9. Load resolution: 500000 yards, with constant resolution throughout the entire process

10. Force measurement range: 2% to 100% F · S (full range without grading)

11. Load control accuracy: better than ± 1% of the indicated value

12. Stress control accuracy: better than ± 1% of the indicated value

13. Accuracy of displacement indication: better than ± 1% of the indication

14. Displacement resolution: 0.001mm

15. Displacement control accuracy (speed): better than ± 1% of the indicated value

16. Piston movement speed range: 0-50mm/min, full load infinite speed regulation

17. Maximum movement speed of piston under no-load: not less than 100mm/min, and can be adjusted arbitrarily

18. Piston stroke: 500 mm

19. Stretching space: 1500mm

20. Equipment width: 900mm

21. Center height of stretching space: 700 mm

22. Maximum external dimensions of the host: approximately 5000 x 1900 x 1200 (length x width x height)

23. Dimensions of the control cabinet (mm): approximately 1100 × 700 × 930
