After the installation of the axial compound corrugated compensator on site, the nuts on both sides behind the ears must be retracted to the limit position ..

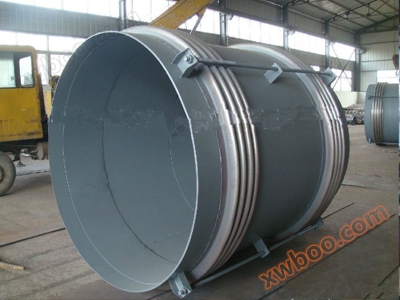

The FSL type compound pull rod corrugated compensator is composed of two or three sections of corrugated pipes, a short middle connecting pipe, and a long pull rod. The long pull rod is not a load-bearing component, has a simple structure, and a large compensation amount. It is generally used for pipelines with low fatigue cycles that require large compensation amounts

Example of axial type compound tension rod corrugated compensator:

Example: 0.6TFL200 * 12J

Indicating: The working pressure is 0.6Mpa, the diameter is DN=200mm, the wave number is 12, and the axial type compound tension rod corrugated compensator is connected to the connecting pipe.

After the installation of the axial compound corrugated compensator on site, the nuts on both sides behind the ears must be retracted to the limit nuts. This compensator can absorb large axial displacements. For compensators with a large number of corrugated pipes, the outer cover serves as a protective device to ensure that the compensator is not damaged during transportation or installation. Moreover, it ensures the stability of the compensator during operation, and due to the presence of the outer cover, the insulation operation of the compensator becomes simple and easy to implement.

Production parameters of axial type compound tension rod corrugated compensator:

Caliber: DN32-DN3000

Pressure level: 0.1Mpa -2.5Mpa

Connection method: 1. Flange connection (flanges are supplied according to the machine standard JB81-59, or can be supplied according to national standards, chemical standards, or other standards according to user requirements); 2. Take over the connection

Product axial compensation: 72mm-500mm
