BMC50 series biological microscope

The BMC50 biological microscope adopts ergonomic design, with smooth lines, beautiful appearance, and lightweight structure. Easy to observe and use, long-term observation is not easy to fatigue. The built-in handle allows for easy access and movement.

The BMC50 biological microscope can be used for teaching, research, clinical experiments, and scientific analysis in biology, pathology, bacteriology, and many other fields such as universities, medical and health institutions, laboratories, and research institutes.

Product features:

●Observation head rotates 360 °, hinge rotates 360 °

●Coarse micro coaxial focusing handwheel, easy to operate

●Built in upper light source, high brightness LED cold light source

●Push button for adjusting light source

●Choose between adapter power and dry battery power

●Light source brightness information display, battery level information display

●Wide voltage circuit design, compatible with 5-18V power adapters, to avoid users connecting the wrong adapter and causing circuit components to burn out

Product details:

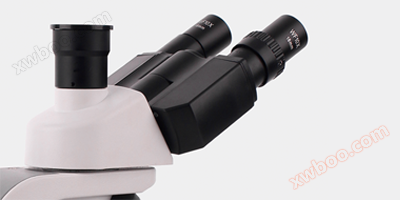

●Observation tube/eyepiece

Articulated wide field binocular (three eye) tube, tilted at an angle of 30 °, pupillary distance: 48-76mm.

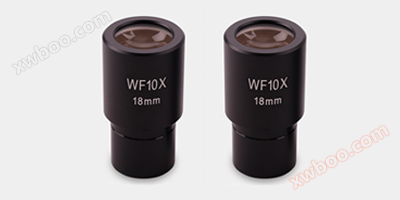

Standard WF10X/18mm wide-angle eyepiece, eyepiece interface: 23.2mm, defocus distance: 10mm, can meet the needs of different scenarios.

WF16X/WF20X/WF25X (optional).

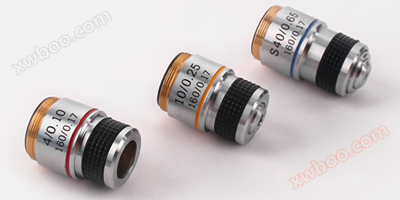

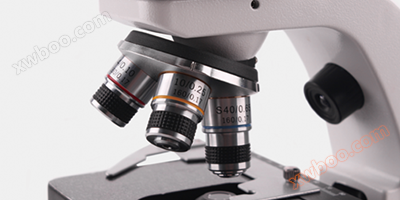

●objective

Professional grade pure copper objective lens, made of pure copper material, durable and not deformed.

Equipped with 4X, 10X, and 40X (S) objective lenses.

Comfortable field of view, higher magnification, and convenient operation.

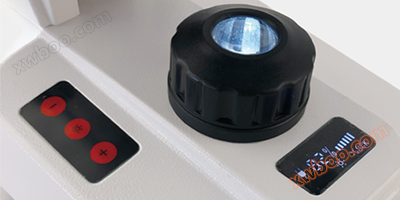

●lighting source

Light source adjustment knob:-Reduce the brightness of the light source

⊕ Switch up and down light sources

+Enhance the brightness of the light source

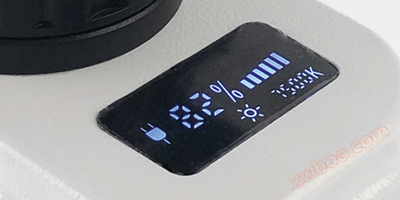

When operating the light source adjustment button, the status display window will synchronously display the status change, and the color temperature of the LED light is 7500K.

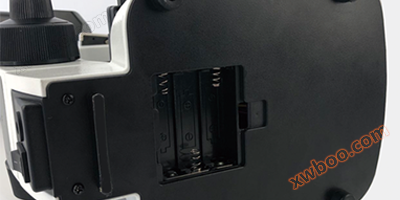

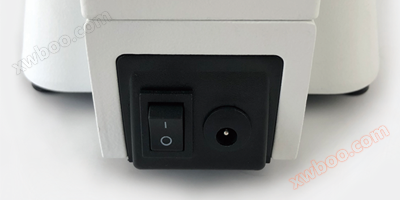

●Replace battery module

In addition to being powered by an external power source, the microscope has a built-in replaceable battery module at the bottom, making it easy to deal with sudden power outages or awkward situations where there is no AC power outdoors. It is not afraid of environmental influences and can conduct experiments anytime, anywhere.

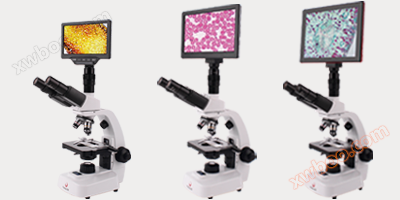

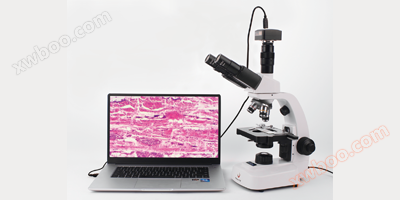

●Connect the biological demonstration device

BMC50 connected to 7-inch display screen (HDMI+USB dual output)

BMC50 connected to 9-inch display screen (USB, TF card dual output)

BMC50 connected to 9.7-inch display screen (HDMI, WIFI wireless dual output)

●Performance characteristics

① Rich digital imaging system with optional pixels.

② High sensitivity and accurate color reproduction CMOS chip.

③ Professional microscopic image analysis software that supports automatic image stitching and depth of field fusion.

④ There are various data interfaces that support USB 2.0, USB 3.0, HDMI, WIFI, and SD card.

⑤ The SDK supports native C/C++, Directshow, and Twain APIs, and can be connected to exam systems for networking.
