Clamp on fiber optic transceiver COE7001J/COE7011J

NegotiableUpdate on 12/29

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The clamp type fiber optic transceiver COE7001J/COE7011J comes with a clamp for easy fixation and multiple working modes can be set to USB power supply, making it easy to work with laptops. Please consult the national hotline online for more information

Product Details

product description

Support the transmission of 1 channel 10/100M or 1 channel 10/100/1000M Ethernet electrical signal through 1 pair of optical fibers; USB port power supply, low-power design; Equipped with a dip switch, multiple working modes can be set; Compact in size and easy to carry, the clamping type can be flexibly fixed on a laptop, suitable for mobile debugging in industrial sites. If no clamping is required, a mini model without clamping components can also be customized.

Product Features

USB power supply, easy to work with laptops
Compact in size and easy to carry
Customizable mini models without clamps
Equipped with AC220 to USB adapter, it can work on mains power
Optoelectronic conversion mode with extremely low latency
Parallel/cross self identification of electrical ports
Electrical port speed and full/half duplex adaptive
Profile shell, high protection level

Technical Parameter

Optical interface	Default ST dual fiber, SC/FC and single fiber types are optional
optical wavelength	Multi mode 850nm, 1310nm/Single mode 1310nm
optical transmission	100Mbps (COE7001J): multimode ≤ 2km, single-mode ≤ 20km; Gigabit (COE7011J): multimode ≤ 550m, single-mode ≤ 5km
Speed of light	100M (COE7001J): 100M full duplex; Gigabit (COE7011J): 1000M full duplex
electrical interface	RJ45 socket, parallel (MDI)/cross (MDIX) automatic recognition
Electrical transmission	Category 5 (or Category 5e and above) twisted pair cable within 100m
Electric velocity	10/100M half/full duplex adaptive, 10/100/1000M half/full duplex adaptive
electricity source	USB 5V power supply
work consume	Less than 1.75W
pilot lamp	100MB (COE7001J): 5 units (PWR, FXL, 100M, F/H, TXL); Gigabit (COE7011J): 3 (PWR, FXL, TXL)
chi cun	Based on the indicator light surface, 100MB (COE7001J) width x height x depth=75 x 68 (including clamp 39mm) x 48 (mm)
chi cun	Gigabit (COE7011J) width x height x depth=75 x 68 (including clamp 39mm) x 58 (mm)
weight measure	0.12kg (clamp type)

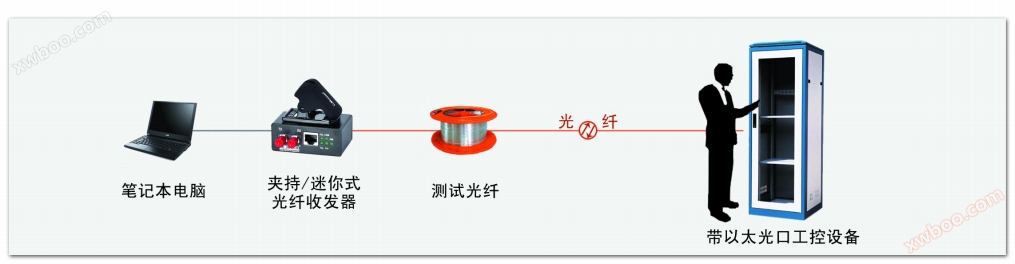

Application method

夹持式光纤收发器COE7001J-COE7011J应用方式

Order model

Product code	product name	Order model	have pour
COE7001JA	Clamp on 100Mbps multimode transceiver	COE-10/100M-J (default/optional)	Default ST, 1310, dual fiber 2km; SC/FC/850/single fiber optional
COE7001JB	Clamp on 100Mbps single-mode transceiver	COE-10/100S-J (default/optional)	Default ST, 1310, dual fiber 20km; SC/FC/1550/single fiber/40/60/80/100km optional
COE7001NA	Mini 100Mbps multimode transceiver	COE-10/100M-N (default/optional)	Default ST, 1310, dual fiber 2km; SC/FC/850/single fiber optional
COE7001NB	Mini 100Mbps single-mode transceiver	COE-10/100S-N (default/optional)	Default ST, 1310, dual fiber 20km; SC/FC/1550/single fiber/40/60/80/100km optional
COE7011JA	Clamp on Gigabit Multimode Transceiver	COE-10/100/1000M-J (default/optional)	Default ST, 850nm, dual fiber 550m; SC/FC/1310nm/single fiber optional
COE7011JB	Clamp type gigabit single-mode transceiver	COE-10/100/1000S-J (default/optional)	Default ST, 1310nm, dual fiber 5km; SC/FC/1550nm/single fiber optional
COE7011NA	Mini Gigabit Multimode Transceiver	COE-10/100/1000M-N (default/optional)	Default ST, 850nm, dual fiber 550km; SC/FC/1310nm/single fiber optional
COE7011NB	Mini Gigabit Single Mode Transceiver	COE-10/100/1000S-N (default/optional)	Default ST, 1310nm, dual fiber 5km; SC/FC/1550nm/single fiber optional
