DFUSS-30 Double Scale Four Head Filling Machine

Product Name:Double scale four head quantitative filling machine

model:DFUSS-30

Product Description:

This filling machine is suitable for filling various oils and viscous liquids. For example: lubricating oil, antifreeze, chemical raw materials, etc

Technical parameters:

Filling capacity:1-30KG(Applicable bottle type450*410*460, beyond customization)

Filling speed:130-240barrel/Hour by hour20LCalculation)

Filling accuracy:±≤0.1％

Power supply:380V

Filling scale:Double scale

Mpa:0.4-0.7Mpa

Equipment size:1250*860*1650

Host weight: approximately200KG

Product features:

1. By combining electronic sensing technology with single head, single pump, and single frequency conversion technology, the filling accuracy is high and the speed is fast;

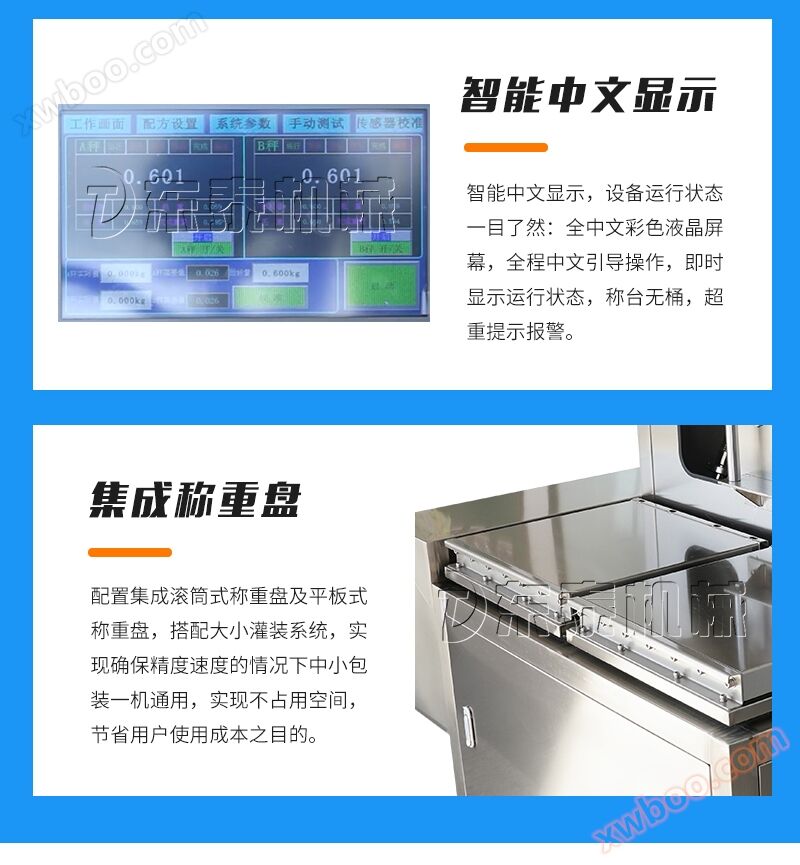

2. Utilizing digital display and touch technology, the entire process is guided in Chinese for more intuitive and easy to learn operation;

3. The weighing platform is prohibited from filling without a bucket, with differential pressure zero time collision bucket protection, automatic peeling, automatic detection of starting filling, intelligent error prevention, fault detection, etc. It can achieve single person simultaneous filling and locking operations;

4. The filling range is large, including drum type weighing plates (suitable for 5-30KG) and flat plate weighing plates (suitable for 1-5KG). The system automatically detects the barrel positioning and starts filling automatically; The height of the gun can be adjusted, and different specifications of barrels can be quickly switched;

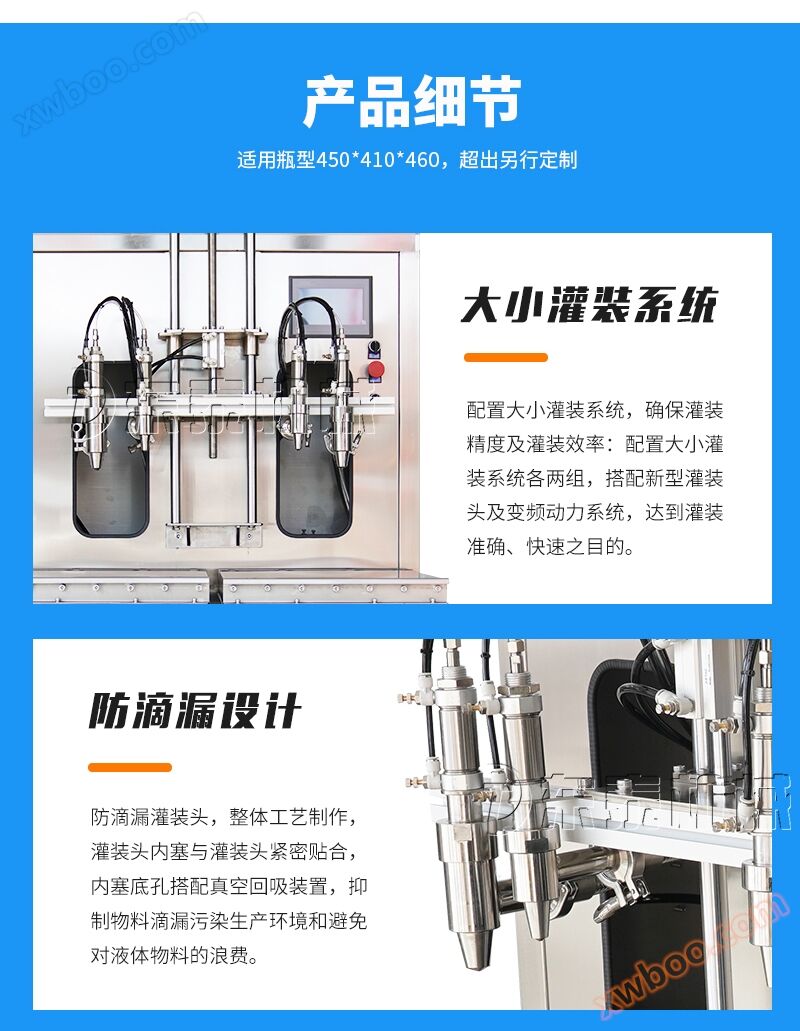

5. The device is equipped with four heads (two sets of sizes) of dual pumps, with one click switching between net weight/gross weight and automatic/manual functions, further meeting customers' needs for accuracy, speed, and low investmentPlease.
