DJI FlyCart100- a long-range/heavy-duty air transport drone, equipped with C12000 intelligent charger. It only takes 9 minutes to charge a single battery from 30% to 95%, which is three times more efficient than the previous generation product in terms of energy replenishment

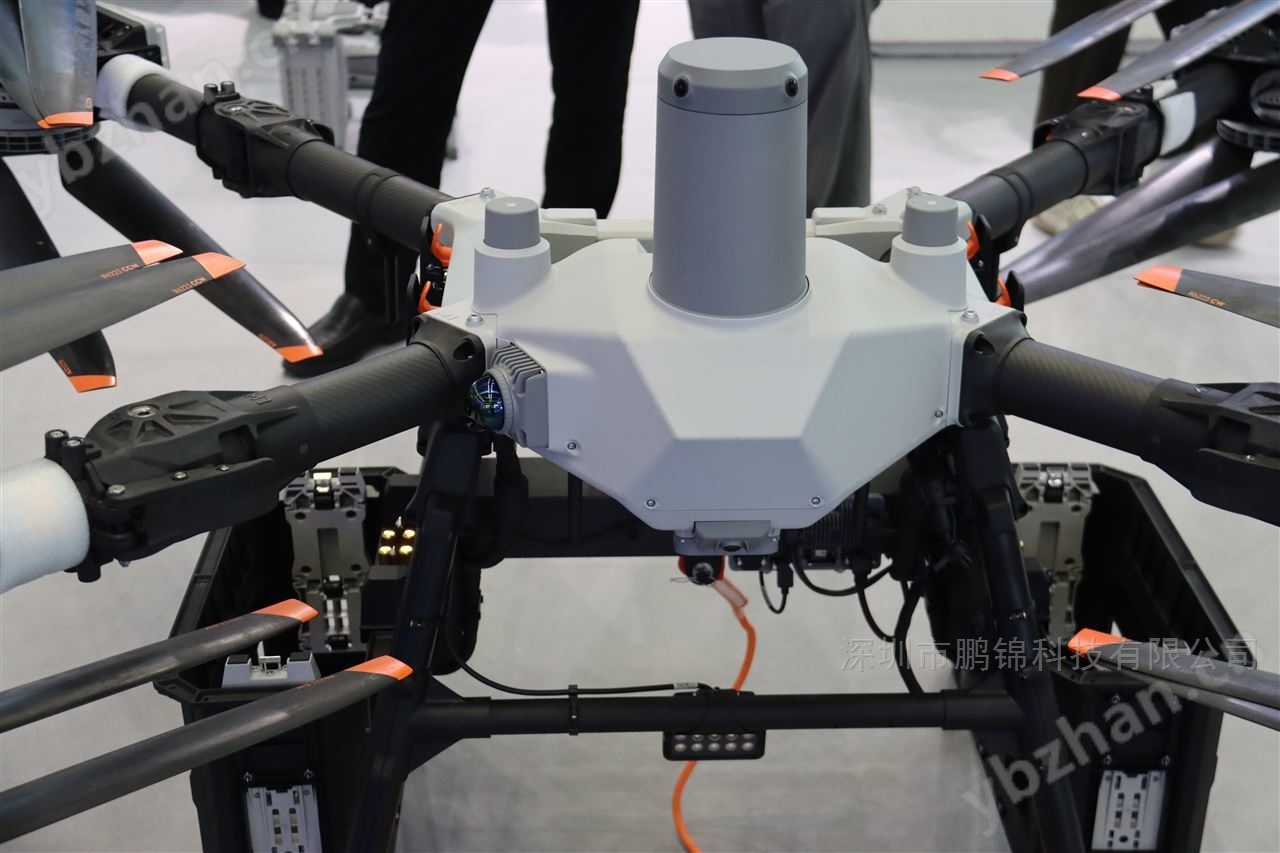

DJI FlyCart100- Long Range/Heavy Duty Air Transport Drone
80kg flagship level load capacityAdopting a coaxial twin rotor structure and carbon fiber blade design, the maximum takeoff weight is 149.9kg, which can stably lift 80kg of materials (single electric mode), equivalent to transporting 4 full-size tires or 16 boxes of standard medical supplies at the same timeIn power engineering, a single flight can complete the high-altitude lifting of large equipment such as tower components and lightning rods, replacing traditional manual climbing operations.
Flexible load solution: Supports two types of professional load systems:
Flagship version of aerial suspension systemEquipped with a 30 meter high strength suspension rope, it supports high-speed retraction and automatic anti sway at a speed of 1.2 meters per second. The cargo automatically decelerates near the ground and supports remote electric hook opening and closing, achieving "contactless" loading and unloading.
Dual electric version of lifting systemBy using a circuit breaker mechanism to deal with unexpected entanglements, it is suitable for precise deployment in high-risk environments such as cliffs and canyons.
Multi sensor fusion obstacle avoidanceEquipped with laser radar (300000 points/second point cloud acquisition), millimeter wave radar (5000 vertical scans/second), and five eye fisheye vision, it can perceive obstacles within 60 meters in all directions and achieve centimeter level accuracy in complex terrain obstacle avoidanceThe cargo obstacle avoidance algorithm is optimized for lifting scenarios, effectively reducing the risk of cable entanglement.
Multi redundant security design：
Dual battery hot backupAutomatic switching within 0.3 seconds in case of single electrical failure to ensure emergency return; Support power free battery replacement to achieve uninterrupted operation.
Standard parachute systemSquare nylon umbrella cover can open the umbrella at a low altitude of 100 meters, with a ground contact speed of ≤ 6 meters/second. Combined with a paddle stop protection mechanism, it reduces equipment and cargo damage.
IP55 protection level: The fuselage can withstand rainstorm (24h precipitation ≤ 24.9mm) and dust intrusion, and can operate stably at -20 ℃ to 40 ℃.
Plateau transportation capacityAt an altitude of 6000 meters, it was able to maintain a 32% improvement in power efficiency and successfully completed the material transportation test from the Everest base camp to the 6191.8 meter assault camp.
Complex terrain coverageBy using roll free flight technology to improve crosswind stability (with a wind resistance of 12 meters per second), autonomous route planning can be achieved in traditional transportation blind spots such as canyons and water bodies. For example, in the construction of Yunnan hydropower stations, a 2-day transportation volume of mule and horse teams can be completed in 3 hours.
24/7 homework supportThe battery can automatically heat up to the optimal working temperature in low temperature environments, and is equipped with front view high and low beam headlights and bottom view fill lights to support night and low light environment operations.
DJI FlyCart 100 PassedTechnological innovation and deep cultivation of scenariosThe deep integration not only breaks through the physical boundaries of low altitude transportation, but also provides a cost-effective and efficient option for industries such as logistics, energy, and emergency response with a "safe, efficient, and intelligent" full chain solution.
