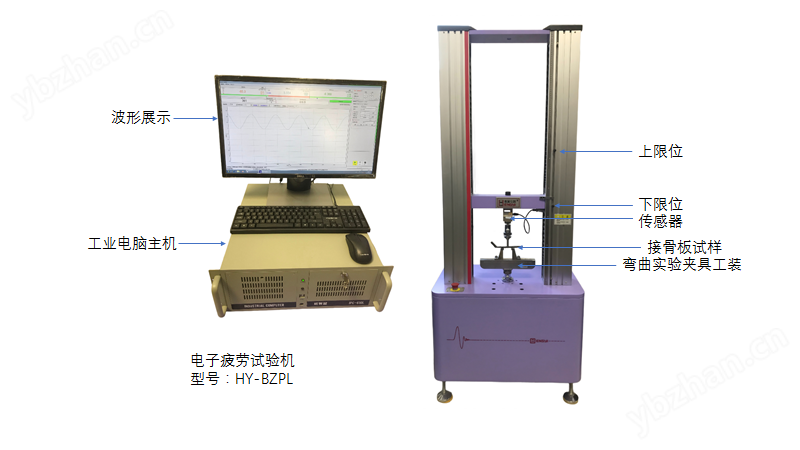

Dynamic fatigue testing machine for biomaterials

Electronic fatigue testing machine is a precision instrument used to evaluate the fatigue characteristics of materials under dynamic or static loads. It adopts servo motor drive technology to achieve multi axis composite loading function. It can perform basic mechanical tests such as tension, compression, bending, and torsion, and supports multi waveform cyclic loading modes such as sine wave/triangular wave/square wave,

Dynamic fatigue testing machine for biomaterialsMain technical parameters

Model: HY (DP) -0120

1. Force measurement range: ± 1000N

2. Force measurement accuracy: Level 1 (e.g. 100N measurement, with an error of 100 ± 1N)

3. Force variation rate: 0.1N

4. Force measurement range: 1N~1000N

5. Displacement measurement accuracy: Level 1

6. Relative error of indication: 1%

7. Control accuracy: ± 1%

8. Test frequency: 0.1-20Hz

9. Waveform: sine wave, cosine wave, square wave, triangular wave, sawtooth wave, etc

10. actuator displacement: (0-200 or ± 100mm, actuator displacement accuracy of ± 1%, resolution of 0.01mm)

11. Left and right space: 400mm

12. Test height space: 300mm

13. Testing space (stretching space 300mm, compression space 400mm) Due to the large stretching fixture and small compression fixture, the above are standard spaces and can also be customized according to customer requirements

14. Dimensions (length x width x height): Approximately 620x500x2000mm

15. Power Supply Voltage: 380V Power: 3000W

16. Weight: 400kg
