Explosion proof meteorological monitoring station system

1Explosion proof meteorological monitoring station systemProduct Introduction

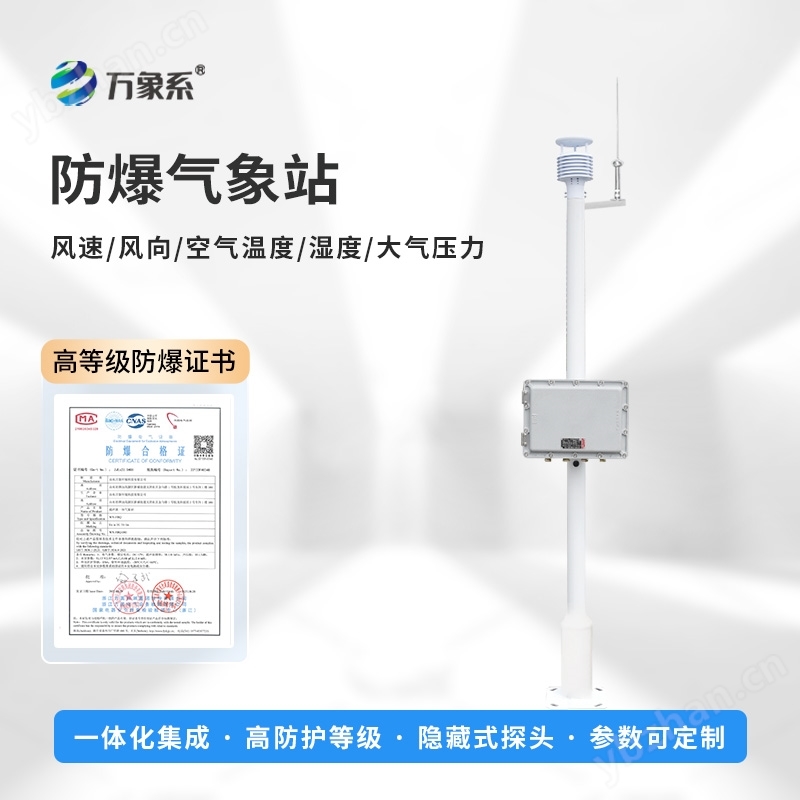

The FB01 explosion-proof meteorological station is an integrated meteorological station developed and produced by our company based on market demand for special places such as chemical plants and oil depots. It integrates data collection, storage, and communication upload, and is connected to the backend upper computer management software or central control room PLC and DCS through wired communication for data processing and analysis.

This explosion-proof weather station adopts the design concept of high protection levels such as anti-corrosion, explosion-proof, waterproof, shockproof, and dustproof, which can meet the usage needs of chemical plants, oil depots, tunnels, mines, and other scenarios.

IIExplosion proof meteorological monitoring station systemProduct Features

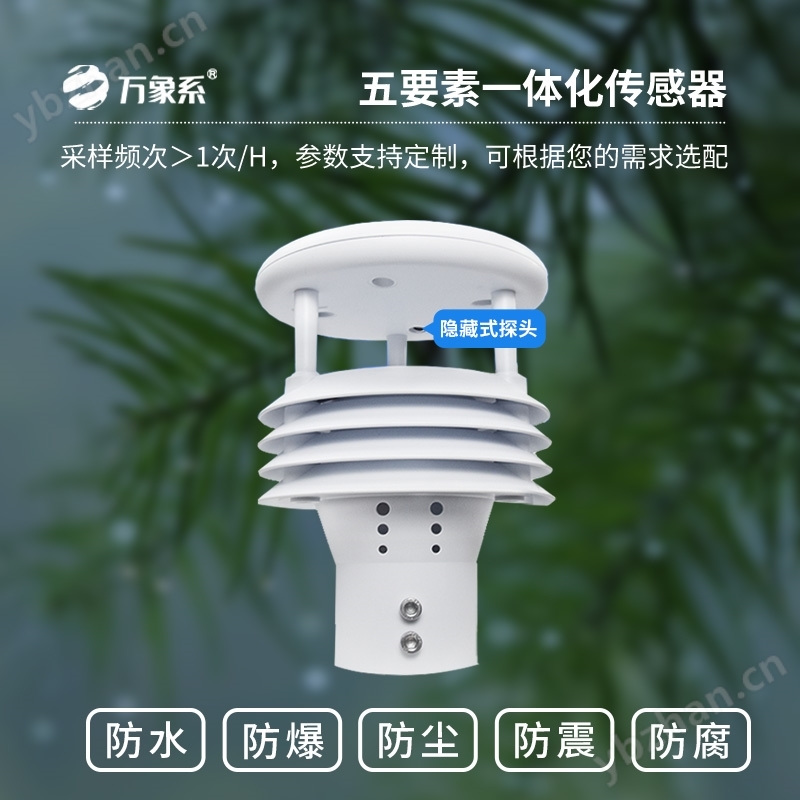

1. Hidden ultrasonic probe on the top cover to avoid interference from accumulated rain and snow, and to prevent natural wind from blocking it

2. The principle is to emit continuous variable frequency ultrasonic signals and detect wind speed and direction by measuring relative phase

3. Wind speed, wind direction, air temperature, humidity, and atmospheric pressure integrated sensor ☆

4.485 connected to DCS transmission

3、 Technical parameters

1. Wind speed: Measurement principle ultrasonic, 0-60m/s (± 0.1m/s+0.01V) resolution 0.01m/s;

2. Wind direction: Measurement principle ultrasonic, 0-360 ° (± 2 °); Resolution: 1 °;

3. Air temperature: Measurement principle: diode junction voltage method, -40-80 ℃ (± 0.3 ℃ (25 ℃)), resolution 0.01 ℃;

4. Air humidity: Measurement principle capacitive, 0-100% RH (± 3% RH (20%~80%)), resolution: 0.01% RH;

5. Atmospheric pressure: Measurement principle pressure resistance type, 300-1100Hpa (± 0.25%), resolution 0.1hpa;

6. Single machine version data storage: no less than 500000 records;

7. Power consumption: 1.75W

8. Production enterprises have ISO quality management system, environmental management system, and occupational health management system certifications

9. The production enterprise has a computer software registration certificate

10. The manufacturing enterprise has an Ex ia IIC T6 Ga high-grade explosion-proof certificate

11. The production enterprise is a 3Aji credit enterprise

12. Equipment passing through GB3836.1-2010 Explosive Atmosphere Part 1: General Requirements for Equipment

13. Equipment passing through GB3836.4-2010 Explosive Atmosphere Part 4: Equipment protected by intrinsic safety type "i"

4、 Functional Features

1. Integrated structural design, easy installation and disassembly;

2. The sensor housing is made of ASA material, which is corrosion-resistant and anti-oxidation;

3. Support customization and flexible configuration of monitoring elements according to user needs;

4. PC/LED explosion-proof screen with multiple monitoring modes and wired transmission

5. Five proof design: waterproof, explosion-proof, dustproof, shockproof, and anti-corrosion;

6. Standard Modbus protocol, supporting multiple backend protocol docking, providing convenience for customers;

7. Low power design, powered by AC220V;

5、 Introduction to upper computer software

1. PC standalone version data receiving, storage, viewing, and analysis software

2. Support serial data reception, processing, and display

3. Supports communication methods such as JSON strings and Modbus 485

4. The storage time can be set by oneself, and the collection time can be set by oneself in modbus485 collection mode

5. Support self-service addition, deletion, and modification of monitoring parameter protocols, names, icons, etc

6. Support data post-processing function

7. Support external running of JavaScript scripts

6、 Equipment installation

1. Confirm the on-site working conditions and set the installation plan by our company

2. Easy installation, no need for professional personnel to operate, remote guidance is available for installation

3. The user does not need to provide their own parts, and our company will refine the configuration. The equipment will be installed and used immediately upon arrival
