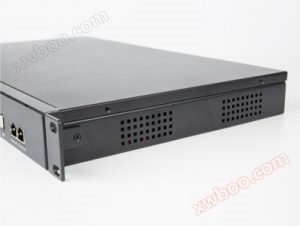

FY5600 integrated intelligent host for operation and maintenance environment monitoring

Product Details

The integrated intelligent host for operation and maintenance environment monitoring is widely used in various occasions with high environmental requirements, such as data centers, communication rooms, intelligent factories, important data storage rooms, etc. This platform can effectively perform real-time monitoring, real-time alarms, real-time switching of on-site video viewing, and also record the processing status of current alarms for easy management by monitoring personnel. In the later stage, alarm queries and data analysis can be performed on historical data. Adopting the latest multi-layer open architecture and component-based design. Adopting many latest technologies, the interface data is open based on various IT and industrial standards, making it easy to integrate with various upper level platforms. The display adopts pure web-based components, which are simple and elegant, integrating intelligence and integration into one. The operation is user-friendly, and the training requirements for operators are extremely low. It can basically be used immediately, and the interface is completely freely defined. The electronic map and point layout can achieve WYSIWYG operation and automatic ranking. Related operations such as alarm viewing, video viewing, remote control, and detailed device operating parameters can be completed in one main interface without the need for menu function switching.

1. Support electronic map function, which can intuitively display various operational data and status, facilitate customized personalized display effects, support 3D floor plan, webpage configuration, template display, floor plan visualization, data center temperature and heat value map, and 3D visualization (3D optional);

2. It is possible to summarize alarms for various regions or devices on the main interface, display summary indicators for each region or device, customize important parameters for the entire system, and gain a more intuitive understanding of the global dynamics of data; You can also enter the area or device to view the detailed real-time operating status, which can be displayed in a table view or a graphical template. While viewing various environmental variables, it supports directly clicking on the video on the electronic map to view the on-site situation, access control information, and meet various visualization needs;

3. The main interface dashboard displays the system's health status, making it convenient to monitor the real-time status of the data center. It also supports easy customization of various dashboards to be inserted into the main interface, such as displaying important parameters such as PUE of the display system;

4. The system has a self checking and self-healing function, which automatically detects the communication status of all devices in the system. It also has the ability to monitor the on/off status of third-party network devices and has a disconnection alarm capability;

5. There are various ways of system alarm, including interface alarm, client alarm, on-site sound and light alarm, on-site automatic voice alarm, SMS alarm, phone alarm, email alarm, mobile APP alarm, LED large screen display, etc;

6. The platform provides multiple interfaces to the outside world, supporting integration and interoperability with various systems. It supports SOCKET interface, WEBService interface, database interface, OPC interface, SNMP, MODBUS and other interfaces, and provides various operation and maintenance management development capabilities based on ITIL process management, which facilitates the secondary development of other comprehensive network management platforms;

7. Support heterogeneous network networking (supporting 2M convergence, VPN, GPRS, etc.);

8. Can quickly form a mobile management system with our company's mobile app, perform mobile operation and maintenance, mobile asset management, and mobile inspection;

9. 2 10/100MBase-T Ethernet ports;

10. Onboard integrated 2-channel RS-485/422 serial port server, which can be used to access multiple RS485/422 smart devices, with multiple protections such as lightning protection and overcurrent reverse connection, and can be expanded in multiple ways;

11. 16 channel dry contact/switch input, overcurrent reverse protection, all-optical safety isolation;

12. 8-channel analog input, 12 bit high-precision A/D conversion chip, measurement range of 0-5V, 0-10V, or interval voltage can be freely set according to the actual sensor, with strong compatibility between various types of sensors;

13. 8-channel control output, can be used as a remote intelligent switch, with full optical electrical safety isolation;

14. 4 USB interfaces for external expansion of USB devices;

15. Built in 30GB solid-state storage, with a long storage time for historical data and a freely adjustable storage period;

16. The front panel is equipped with a LCD screen display, which includes information on the collection and operation of various channels, as well as input and output control status;

17. Built in software and hardware watchdog;

18. The built-in software can support remote upgrades;

19. Working temperature: -10~55 ℃;

20. Environmental temperature: 10-90% relative temperature;
