Fire resistance test furnace for fire exhaust fan

Product Name: Fire Exhaust Fan Fire Resistance Test Furnace Product Model: ZY6248B-SV-PC Product Purpose: Used for high temperature resistance testing of fire exhaust fans, suitable for high temperature resistance testing of axial flow (corresponding centrifugal) fire exhaust fans with machine numbers N0.3 to N0.18 in the laboratory. Manufacturer prices: Non standard customization prices vary, welcome to choose and quote!

1、 Application scenarios:

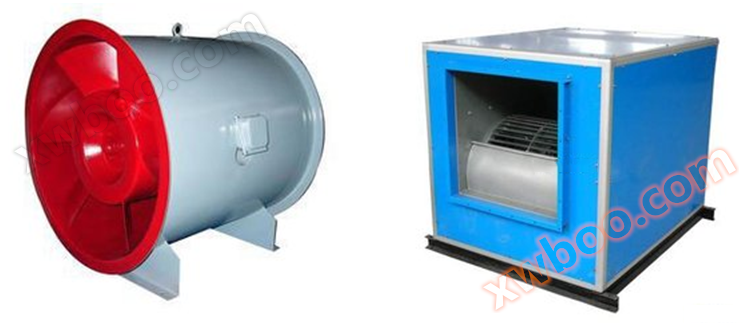

The fire resistance test furnace for fire smoke exhaust fans is used for high temperature resistance testing of fire smoke exhaust fans: it is suitable for high temperature resistance testing of axial flow (and corresponding centrifugal) fire smoke exhaust fans with machine numbers N0.3 to N0.18 in the laboratory. As shown in the picture:

2、 Meet the standards:

1. Meet the test standards of GA 211-2009 "Test Method for High Temperature Resistance of Fire Exhaust Fans".

2. Meet the performance testing standards of GB/T 1236-2000 "Standardized Ducts for Industrial Ventilators".

3. Meet the GB/T9978.1-2008 test standard "Fire resistance test methods for building components, Part 1: General requirements".

3、 Product features:

1. One furnace can be used for multiple purposes and is compatible with multiple standards. Add a set of equipment for the GB15930-2007 "Fire Valves for Ventilation and Smoke Exhaust Systems in Buildings" test. This device needs to be purchased separately. If you have any requirements, you can consult the manufacturer for free.

2. Use a 16 bit high-precision acquisition card to collect data on temperature, pressure, flow rate, and other aspects. Real time reproduction of the true information during combustion is generated through microcomputer analysis, processing, and control, and the results are directly obtained through microcomputer analysis and judgment.

The whole machine is equipped with high-quality components to ensure a higher quality, high-speed operation and progressiveness system.

3. Adopting a 16 bit board, multi-channel module, and microcomputer, implementing PID fully automatic control mode, with better stability, repeatability, and reproducibility.

4. Adopting WINDOWS XP operating interface and LabView development software for precision equipment, the interface style is fresh, beautiful, and simple.

During the testing period, real-time measurement results are displayed and perfect curves are dynamically drawn. The data can be permanently saved, accessed, and printed out, and reports can be directly printed.

Featuring high intelligence, guided menu operation, and simple and intuitive features, the experimental results are more accurate.

5. Furnace construction:

The construction of the fire-resistant test furnace for the fire exhaust fan adopts the GOVMARK technology from the United States. Five layer structure, with the inner layer at 1300 ℃ and the outer layer at room temperature; Long service life, the insulation material (vulnerable parts) in the inner layer is easy to replace.
