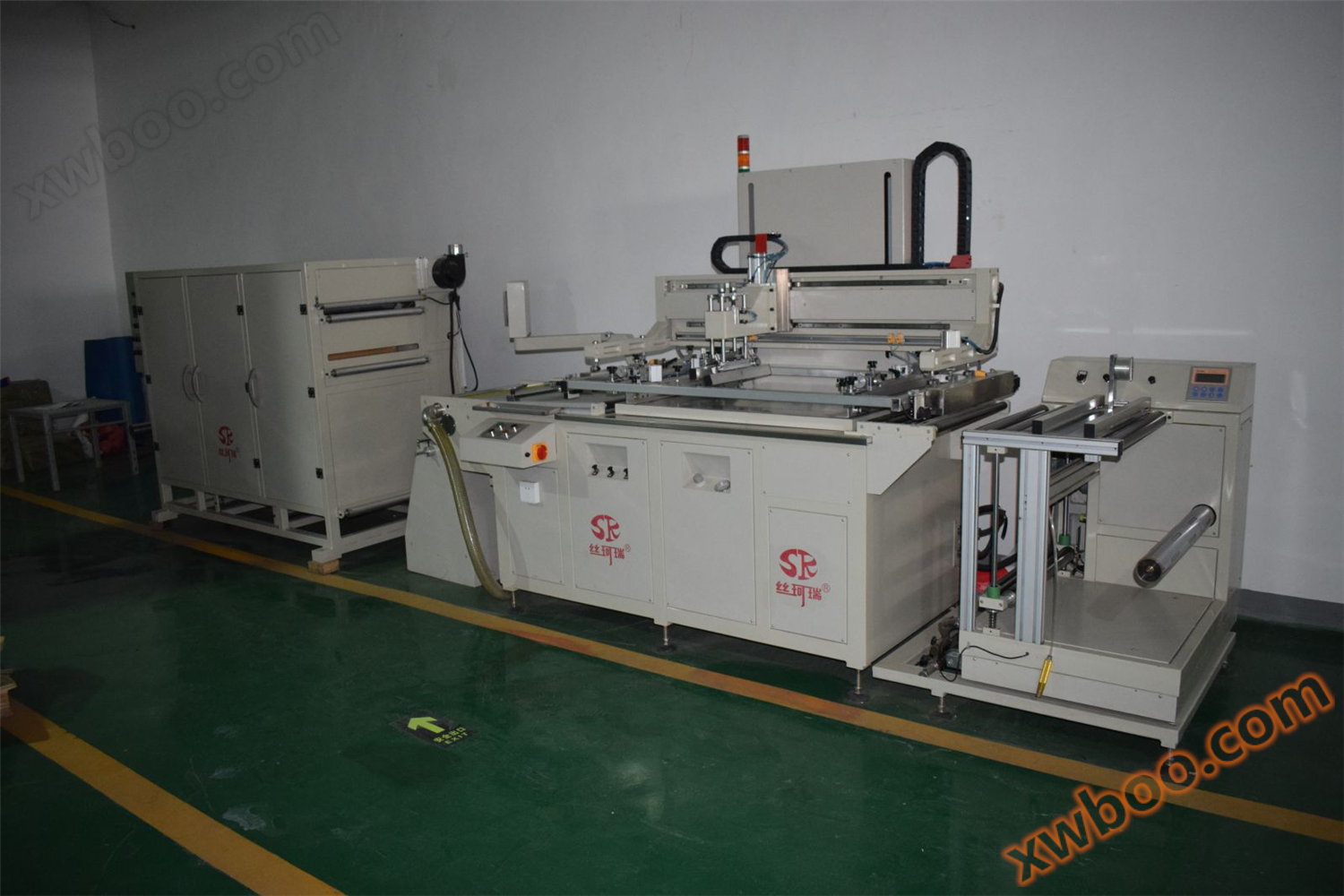

Fully automatic screen printing machine for flexible circuit boards

Product Introduction Host Features: 1. Automatic feeding, printing, drying, and receiving, saving labor and overcoming the constraints of weather conditions; 2. Multi color printing with fully automatic electric eye alignment, computer-controlled, automatic color code detection, and automatic fault detection

Host characteristics

1. Automatic feeding, printing, drying, and receiving save labor and overcome the constraints of weather conditions;

2. Multi color printing with fully automatic electric eye alignment, computer-controlled, automatic color code detection, and automatic fault detection.

3. Pressure balance, thick ink layer, printing and ink return distance can be set according to data

4. Photoelectric control feeding Collecting materials, equipped with dust removal devices to avoid surface damage to the substrate and improve quality.

5. Circulating hot air drying, automatic constant temperature. Wind speed adjustment can be carried out according to the requirements of printing materials.

6. Multiple sizes of screen printing can be used, and large format printing can simultaneously print multiple patterns, greatly improving work efficiency;

7. The minimum effective pattern gap before and after full page printing can reach lcm, effectively reducing material loss;

Scope of application: The fully automatic roll to roll screen printing machine is a high-speed, high-precision fully automatic roll to roll screen printing machine successfully developed by our company. Its printing range is wide, with a printing thickness of 0.2-3mm for monochrome printing of PVC, PET, PP, PC, PE and other rolls.

Technical Specifications:

model	SKR Fully Automatic Screen Printing Machine
Maximum printing area (mm ²)	900*500
Maximum screen installation (mm ²)	1200*600
Platform size (mm ²)	900*590
Substrate thickness (mm)	0.2-3
Material core (mm)	70
Printing speed (cycle/h)	1500-400
Mechanical dimensions (mm ³)	5500*1200*1700
Mechanical weight (kg)	1500
