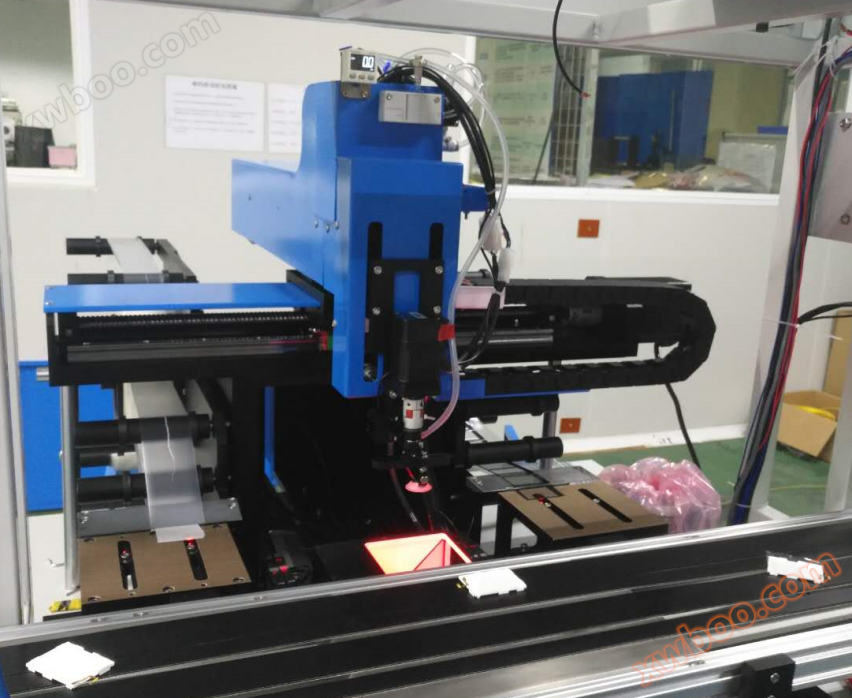

Fully automatic single station dual-mode visual bonding machine

Product details:

Product Features:

·Divided into two parts: automatic alignment and bonding, the two systems are closely integrated, greatly improving efficiency.

·Dual station film application, and multiple materials can be placed in one station by adding sensors.

·No need to align the mold, automatic loading and unloading.

·CCD automatic alignment system ensures production accuracy.

·You can save product formulas of different models freely for easy use next time.

·An upper computer operation interface combined with a touch screen operation interface can simulate various production actions and is easy to operate.

·The compensation in all directions can be adjusted, effectively saving machine adjustment time and facilitating fine adjustments.

Principle of adhesion:

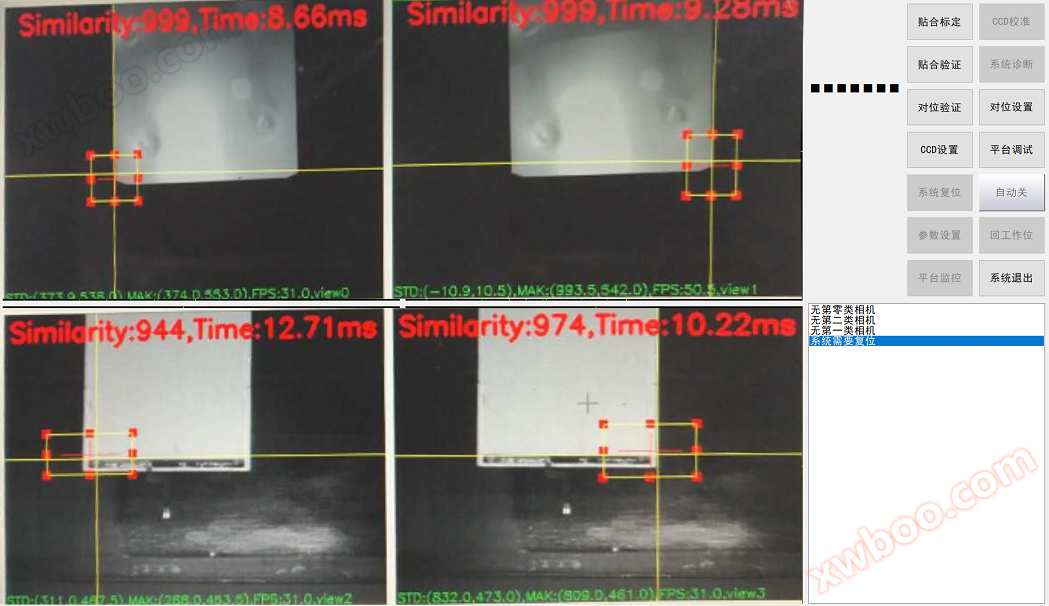

The upper two images were captured by one camera, sucking onto a robotic arm, while the lower two images were captured by another camera, on a belt.

Our software establishes a unique connection between two cameras through calibration between them, and then adjusts compensation to ensure that the film and shell are fully adhered. This way, before each material is adhered, a robotic arm is controlled to adjust the position based on the recognition of the camera to ensure the accuracy of the adhesion.

Product parameters：

·Hardware platform: Industrial grade industrial computer+Quaternion controller+Gigabit Ethernet camera

·Alignment accuracy: ± 0.05mm.

·Number of CCDs: 2/4/6/8. (Choose according to requirements, the more cameras there are, the higher the accuracy)

·Fitting method: The shell is automatically conveyed to the designated position through a belt, and the mechanical arm grabs the material, takes photos, aligns and fits it.
