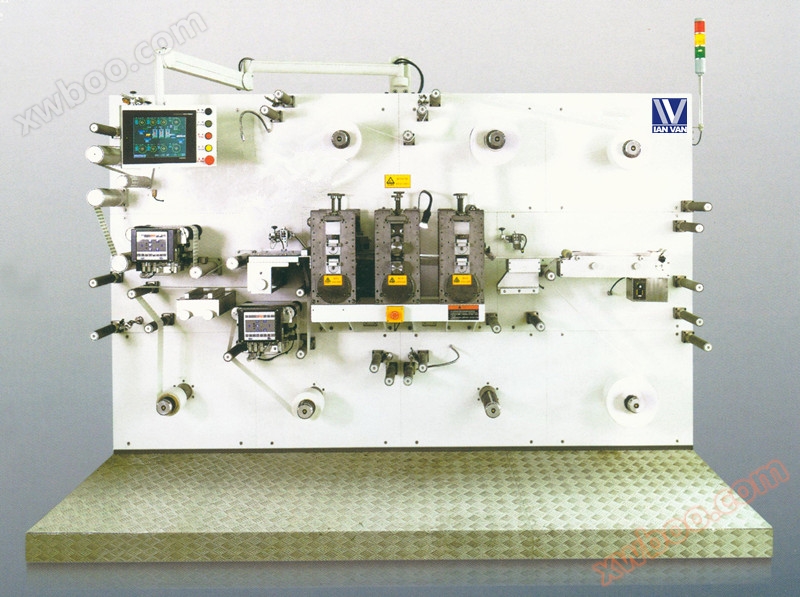

Fully automatic three seat round knife die-cutting machine

Online Consult

Overview

Product Details

Product Features

Equipped with tag tracking function, it can perform high-precision repetitive die cutting and die cutting of electronic label products
Machine speed: 0-50M/MIN, maximum width of raw material 250MM
模切精度 ±0.03MM. 分条精度 ±0.03MM
The maximum size of the die cut product is 400MM * 250MM, and the minimum width of the strip is 0.8MM
Can perform stable full and half cutting operations without the need for manual adjustment or bottom filling
Reliable implementation of a minimum thickness of 0.025MM for the bottom paper of a half cut operation
It can count meters and has the functions of stopping at meters to numbers and stopping without materials

Model: TRD3-250
project	unit	parameter content
Feed width	mm	250
running speed	m	50
Circular blade pitch	-	1/8'
Number of circular blade teeth	tooth	60-120
Roll diameter	mm	400
Scroll tension	N/M	0-25
Retractable scroll	article	7
workstation	seat	3
Equipment power	KW	12
frequency	Hz	50
power supply	AC	380
Equipment weight	KG	1600
Equipment appearance	mm	2000 (length) * 1200 (width) * 1900 (height)
