GIR310 infrared thermal imager

NegotiableUpdate on 05/25

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

GIR310 infrared thermal imager, with a resolution of 640512, captures images by receiving infrared radiation; Applied to preventive maintenance, mechanical and electrical inspections of systems and equipment, temperature distribution research, building energy consumption assessment, etc; The application of upper computer software can complete the analysis of infrared images, with built-in WIFI transmission function.

Product Details

GIR310infrared thermal imager, resolution 640 × 512, imaging through receiving infrared radiation；Applied to preventive maintenance，Mechanical and electrical inspection of systems and equipment，Research on Temperature Distribution，Building energy consumption assessment, etc；The application of upper computer software can complete the analysis of infrared images,selfEquipped with WIFI transmission function.

GIR310infrared thermal imagerProduct Features

Dual band fusion mode

adjustableorMobile infrared region

OLED high-resolution (1024 × 600) viewfinder display screen

High precision（+1 c/+1%，40-100℃When)

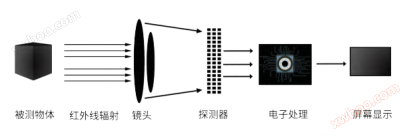

Imaging principle

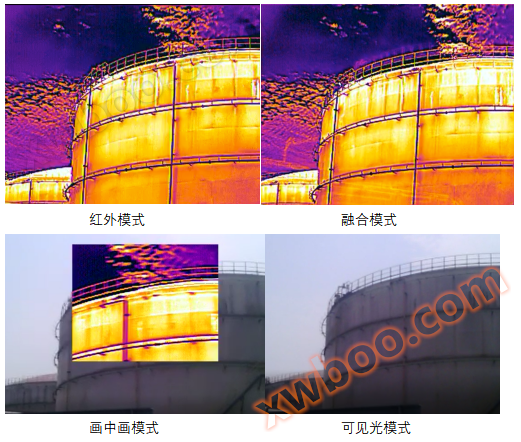

imaging mode

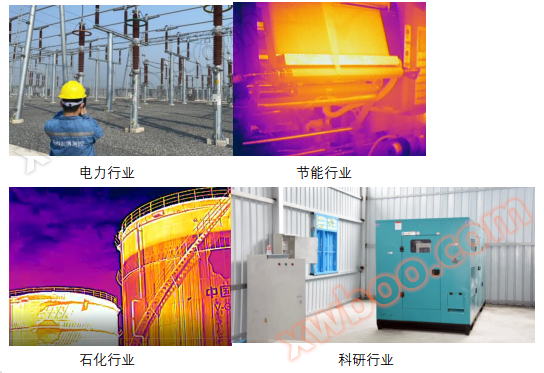

Application field

Main parameters

Detector and lens
infrared detector	640 × 512, 17 µ m, operating band 7-14 µ m	Operating Temperature	-15°C~+50°C
Thermal sensitivity/NETD	<0.04 °C@30 °C	Storage temperature	-40°C~+70°C
Camera selection	Standard lens 25 °× 20 ° focal length is 25mm. Optional: telephoto 15 °× 12 °, wide-angle 45 °× 36 °	Protection level	IP54
spatial resolution	0.68mrad		power supply
Image frequency	50 Hz	battery	Rechargeable lithium-ion polymer battery, working continuously for 3 hours at 25 ° C
focusing	Automatic	external power supply	AC adapter (90-260VAC power input 50/60Hz) or 12V car power supply

file storage		temperature measurement
storage medium	32GB TF card, recommended class 10 or highertall	Temperature measurement range	-20 ~ +150°C/100 ~ +650°C
Image file format	Standard JPEG, including digital photos and total radiation measurement data	Temperature measurement accuracy	± 1 ° C or ± 1% (from 40 to 100 ° C) ± 2 ° C or ± 2% (over the full range)
video storage	Radiation/H.264 non radiation infrared/H.264 visible light video, stored on TF card	Temperature measurement analysis	Analysis of Temperature Difference between Point Area Line Isothermal Line
time-lapse photography	3s~4hr

appearance		other
weight	<1.7 kg (including battery)	canVisible light camera	Field of view matched with infrared lens, built-in LED light
size	180 mm × 143 mm × 150 mm (including standard lens)	laser type	Level 2, 1mW/635nm red
		interface type	USB/WiFi/HDMI
