Grassland Ecological Meteorological Station

one、Grassland Ecological Meteorological StationProduct Introduction

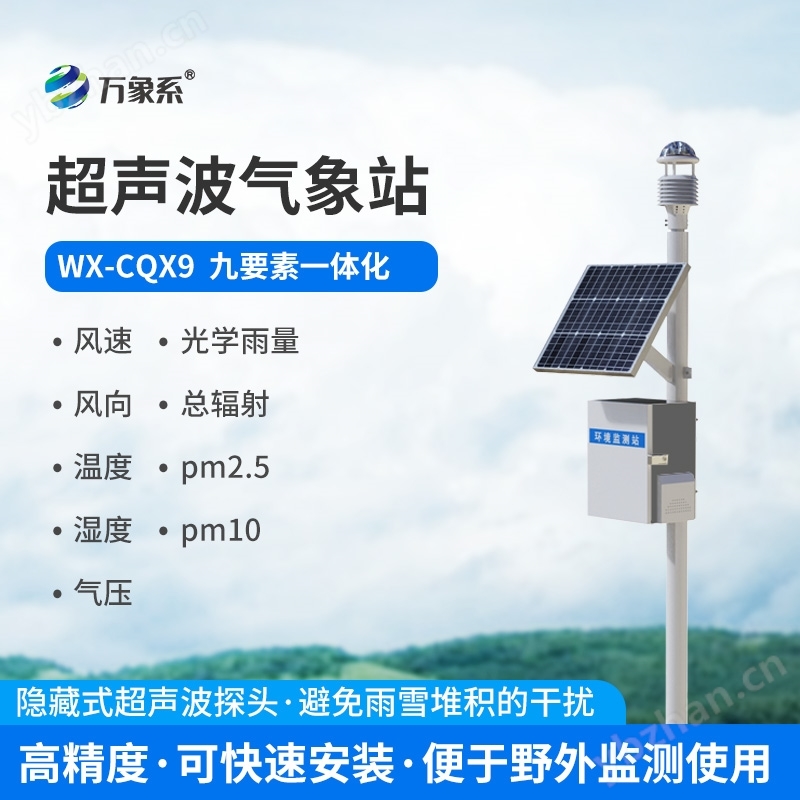

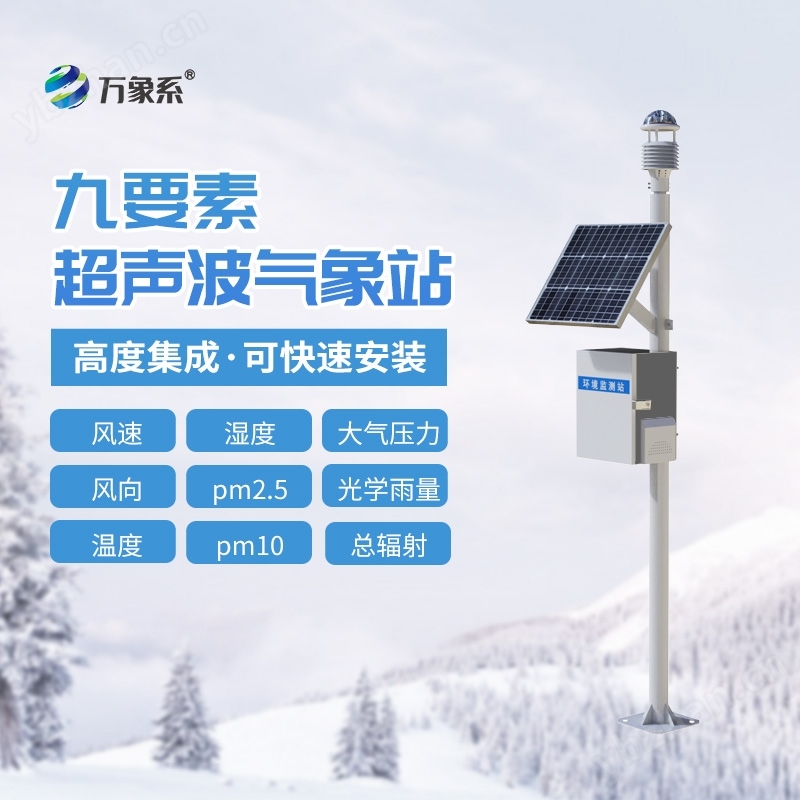

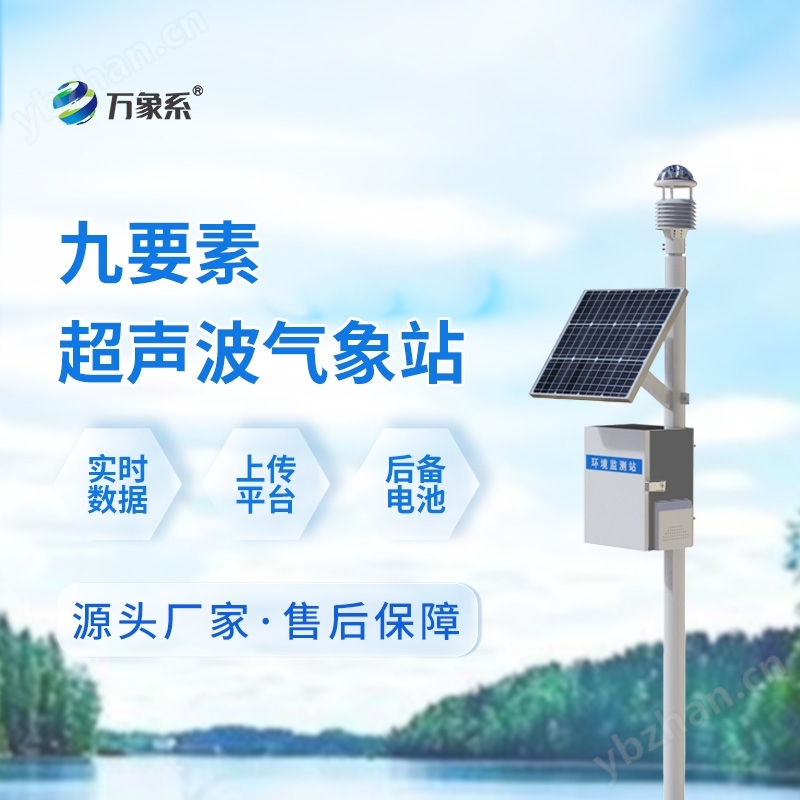

CQX9Ultrasonic weather stationIt is a highly integrated, low-power, quick to install, and easy to use high-precision automatic meteorological observation equipment for field monitoring.

This device is debugging free and can be quickly deployed. It is widely used in fields such as meteorology, agriculture, forestry, environmental protection, oceanography, airports, ports, scientific research, and campus education.

traditionalUltrasonic weather stationCompared to other products, our company's products have overcome the demand for high-precision timers and avoided measurement inaccuracies caused by sensor startup delays, demodulation circuit delays, and temperature changes.

This device innovatively adopts a nine element integrated sensor, which can detect wind speed, wind direction, temperature, humidity, air pressure, optical rainfall, total radiation pm2.5、pm10、 Real time observation of meteorological elements can achieve 24-hour continuous online monitoring of outdoor meteorological parameters, and nine parameters can be output to users at once through a digital communication interface.

IIGrassland Ecological Meteorological StationProduct Features

1. Hidden ultrasonic probe on the top cover to avoid interference from accumulated rain and snow, and to prevent natural wind from blocking it

2. The principle is to emit continuous variable frequency ultrasonic signals and detect wind speed and direction by measuring relative phase

3. Wind speed, wind direction, temperature, humidity, air pressure, optical rainfall, total radiation, PM2.5, PM10 nine element integrated sensor ☆

4. Standard configuration of GPRS; Optional RJ45, Ethernet, 4-20mA, Lora transparent transmission, 4G transparent transmission, Bluetooth, 485 to USB and other transmission methods

5. Two meter carbon steel bracket, the top does not require a flange and can be directly fitted with sensors

6. The sensor housing is made of imported ASA material, which effectively resists salt spray and other environments, with a protection level of IP65 or above

4、 Introduction to upper computer software

1. PC standalone version data receiving, storage, viewing, and analysis software

2. Support serial data reception, processing, and display

3. Supports communication methods such as JSON strings and Modbus 485

4. The storage time can be set by oneself, and the collection time can be set by oneself in modbus485 collection mode

5. Support self-service addition, deletion, and modification of monitoring parameter protocols, names, icons, etc

6. Support data post-processing function

7. Support external running of JavaScript scripts

5、 Introduction to Android APP

1. Android standalone version data receiving, storage, viewing, and analysis software

2. Supports Bluetooth data reception

3. After the phone goes into sleep mode, the software backend receives and processes it

4. JSON data automatically adds devices, Modbus devices support scanning to add devices

5. Support viewing, analyzing, and exporting historical data tables, as well as displaying curves and viewing odd numbered sites

6. Support data post-processing function

7. Support external running of JavaScript scripts

6、 Introduction to Cloud Platform

1. CS architecture software platform, supporting direct observation through mobile and PC browsers without the need for additional software installation

2. Support multi account and multi device login

3. Support real-time data display and historical data display dashboard

4. Cloud servers, cloud data storage, stable and reliable, easy to expand, load balancing

5. Support SMS alarm and threshold setting

6. Support map display and viewing device information.

7. Support data curve analysis

8. Support data export in tabular format

9. Support data forwarding, HJ-212 protocol, TCP forwarding, HTTP protocol, etc

10. Support data post-processing function

11. Support external running of JavaScript scripts
