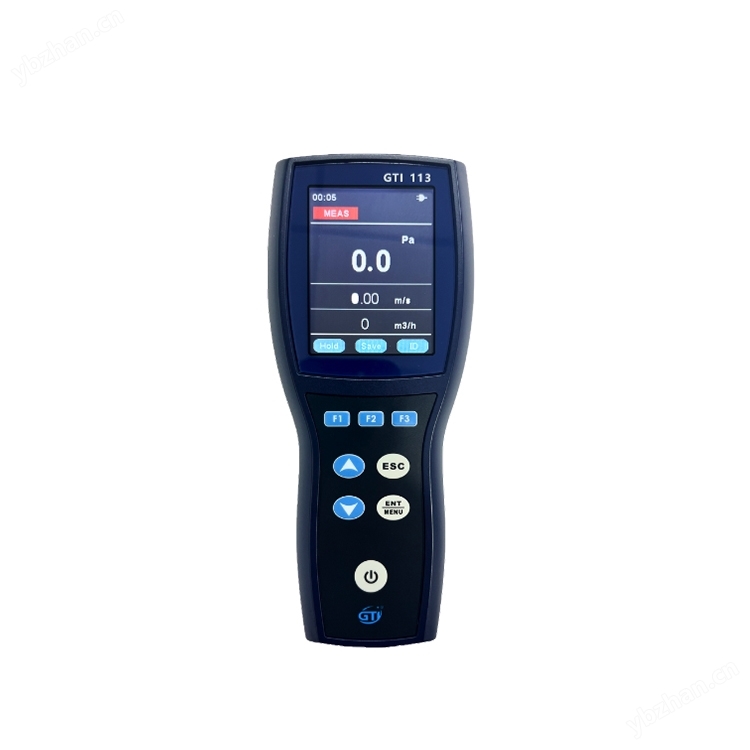

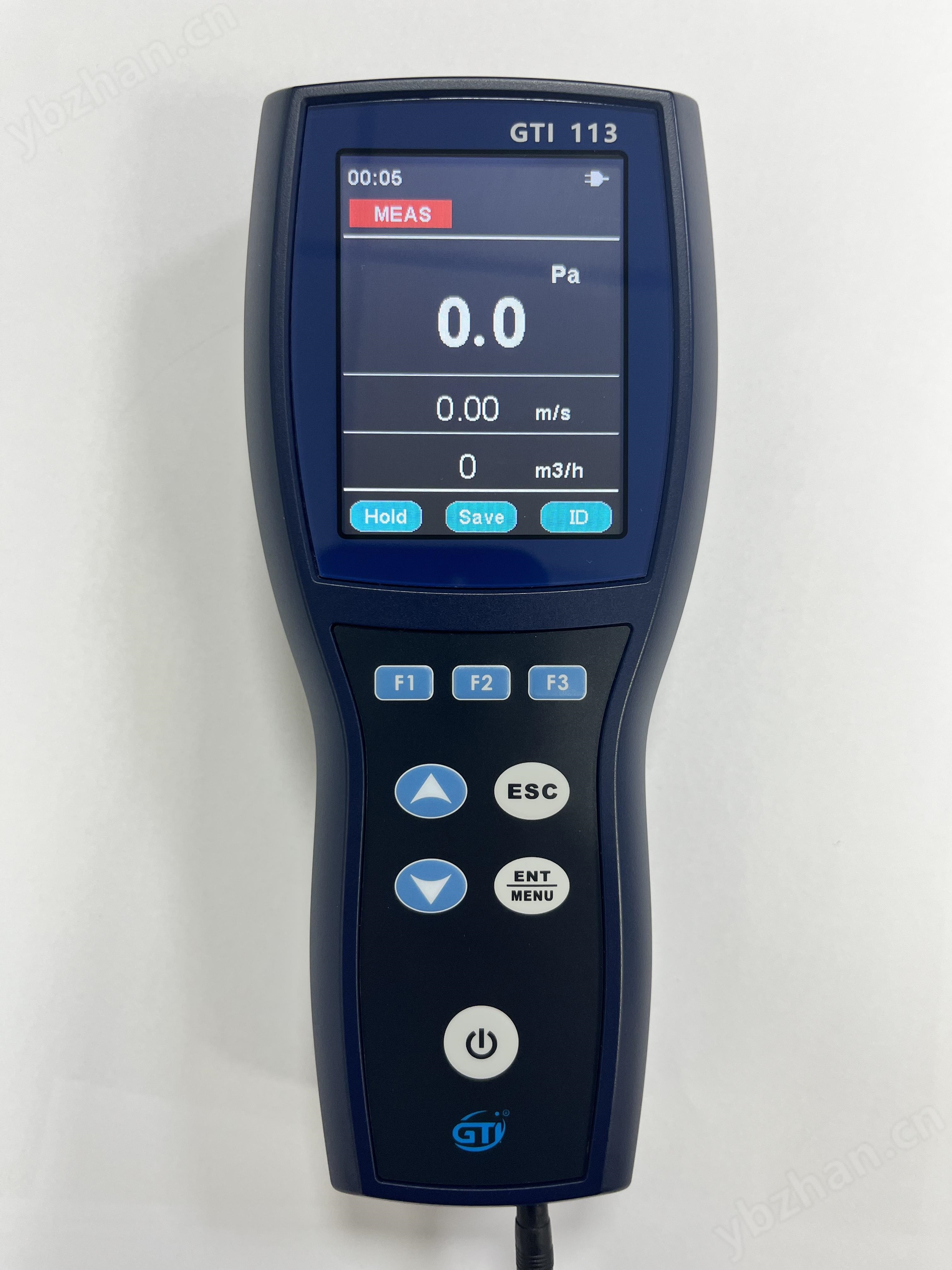

High precision digital differential pressure gauge GTI113

NegotiableUpdate on 01/17

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

High precision digital differential pressure gauge GTI113 handheld micro differential pressure gauge with an accuracy of& #177; 0.5%& #177; 0.5Pa， Resolution of 0.1Pa, integrated differential pressure measurement, wind speed calculation, and temperature monitoring functions, supporting positive pressure, negative pressure, and bidirectional pressure difference detection, range& #177; 500Pa. The body is lightweight, weighing only 363g, equipped with a high-definition LCD color screen, supports multi unit switching, and has a battery life of over 15 hours, suitable for various industrial scenarios.

Product Details

High precision digital differential pressure gauge GTI113The handheld micro differential pressure gauge has an accuracy of ± 0.5% ± 0.5Pa and a resolution of 0.1Pa. It integrates differential pressure measurement, wind speed calculation, and temperature monitoring functions, supports positive pressure, negative pressure, and bidirectional differential pressure detection, with a range of ± 500Pa. The body is lightweight, weighing only 363g, equipped with a high-definition LCD color screen, supports multi unit switching, and has a battery life of over 15 hours, suitable for various industrial scenarios.

The accuracy can achieve a reading of ± 0.5% ± 0.5Pa, with a resolution of up to 0.1Pa

Integrated with three major functions of "differential pressure measurement+wind speed calculation+temperature monitoring" to meet diverse scene requirements

Support positive pressure, negative pressure, and bidirectional pressure difference detection, with a range coverage of ± 500Pa

The body weighs only 363g and is compact in size

High definition LCD color LCD screen, multiple pressure units can be switched

Can be used continuously for more than 15 hours when fully charged, meeting the needs of all-weather operations

High precision digital differential pressure gauge GTI113Technical parameters of handheld micro differential pressure gauge

Model number		GTI 113 (New Product)	GTI115
differential pressure	test scope	-500~500Pa	-2500~2500Pa
	Accuracy	± 0.5% ± 0.5Pa of reading	± 0.5% ± 1Pa of reading
	resolution	0.1Pa
	overvoltage	±10kPa
wind speed	test scope	0.2～25m/s	0.2～60 m/s
	Accuracy	± 1.5% of reading (at 10.0m/s)
	resolution	0.01 m/s
air volume	test scope	0～999999 m3/h
	resolution	1 m3/h
Operating temperature		0~60 ℃ (no condensation)
Storage temperature		-20~70 ℃ (no condensation)
Power supply		4-cell No. 5 battery/AC adapter (DC 5V)
Battery lifespan		More than 15 hours
Weight (including battery)		About 363g

In case of any changes in product design, specifications, or parameters, the latest data provided by our company shall prevail without further notice
