IP video intercom extension (exclusively for prisons/detention centers)
NegotiableUpdate on 05/08
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Guangdong Shenzhou IP video intercom extension (for prisons/detention centers), high-performance ARM main control chip, 2-megapixel high-definition camera, H.265 encoding, supports 1080P high-definition video transmission, high fidelity high volume communication, GB28181 standard protocol, Internet of Things technology, supports cross platform intercom, supports call transfer to police terminals, mobile phones, fixed telephones, and supports off network intercom.
Product Details

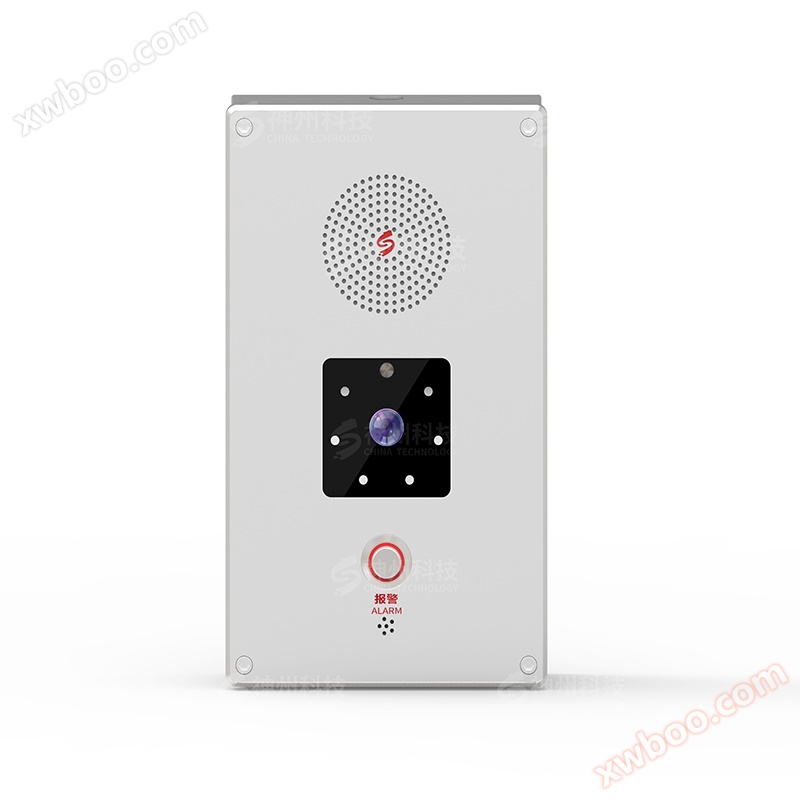

IP video intercom extension (exclusively for prisons/detention centers)
Guangdong Shenzhou IP video intercom extension (for prisons/detention centers), high-performance ARM main control chip, 2-megapixel high-definition camera, H.265 encoding, supports 1080P high-definition video transmission, high fidelity high volume communication, GB28181 standard protocol, Internet of Things technology, supports cross platform intercom, supports call transfer to police terminals, mobile phones, fixed telephones, and supports off network intercom.
Product features
video intercom
Cross platform intercom
Broadcast function
Facial roll call
video linkage
Information Release
Call hold
Offline use
Audio and video recording
Call Forwarding
Product advantages
One-click alarm
In case of danger or emergency in any usage scenario, one click call and alarm can be sent to the duty room intercom host, achieving full duplex intercom.
public broadcasting
The on duty police officer broadcasts and educates the extension units in the management area on the video intercom host, and can also provide emergency broadcast notifications in case of emergencies.
Noise alarm
When continuous noise is detected in a certain environment and exceeds the decibel threshold, it will automatically alert the host and collect on-site images.
monitoring alarm
When the extension camera detects a concentration of people, frequent movements, climbing, or other dangerous events in the surrounding environment, it automatically pushes alarm information to the host.
Product Parameters
Basic functions Single key, equipped with infrared camera, sensor, and one key alarm
other models SZ-IPS2 (double bond separation, one key call, one key alarm, equipped with infrared camera, sensor)
Processor core ARM926@ 800MHz，32KB I-Cache，32KB D-Cache
memory DDR3 SDRAM，128MB
storage Standard 32MB (upgradable and expandable storage space)
network interface Standard RJ45 interface
audio mode 16 bit noise reduction sound quality
output frequency 20Hz～20KHz
harmonic distortion <0.5%
Overall dimensions 173x95x45.5mm (including installation of bottom shell)
Protection level IP65
Installation method Wall mounted and embedded, with the bottom of the device about 1.4 meters above the ground
Note: The same model of product may have multiple versions, and there may be differences between different versions of the product (including functional parameters, logo design, appearance details, product information, etc.). Please refer to the actual product.
Application scenarios
prison
Public places (banks)
park
