Guangdong Shenzhou Technology Co., Ltd
IP video intercom extension
NegotiableUpdate on 05/08
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Shenzhou IP video intercom extension, high-performance ARM main control chip, 2-megapixel high-definition camera, H.265 encoding, supports 1080P high-definition video transmission, high fidelity high volume calling, national standard GB28181 protocol, Internet of Things technology, supports cross platform intercom, supports call transfer to police terminals, mobile phones, fixed telephones, and supports off network intercom.
Product Details

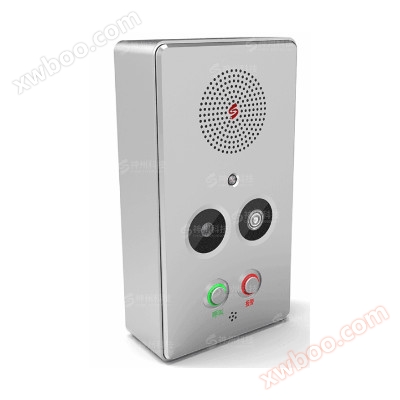

IP video intercom extension
Shenzhou IP video intercom extension, high-performance ARM main control chip, 2-megapixel high-definition camera, H.265 encoding, supports 1080P high-definition video transmission, high fidelity high volume calling, national standard GB28181 protocol, Internet of Things technology, supports cross platform intercom, supports call transfer to police terminals, mobile phones, fixed telephones, and supports off network intercom.
Product features
Call Forwarding
Cross platform intercom
Broadcast function
Audio and video recording
video intercom
voice broadcast
video conference
access control
Offline use
online detection
Product advantages
Duplex pairing
Duplex intercom is supported between the video intercom host and the IP video intercom extension.
public broadcasting
The on duty police officer broadcasts and educates the extension units in the management area on the video intercom host, and can also provide emergency broadcast notifications in case of emergencies.
Noise alarm
When continuous noise is detected in a certain environment and exceeds the decibel threshold, it will automatically alert the host and collect on-site images.
monitoring alarm
When the extension camera detects a concentration of people, frequent movements, climbing, or other dangerous events in the surrounding environment, it automatically pushes alarm information to the host.
Product Parameters
Basic functions Double key, equipped with infrared camera, sensor, one key call, long press alarm
model SZ-IPS1、SZ-IPS2
storage Standard 32MB (upgradable and expandable storage space)
camera 2 million pixel full HD CMOS sensor
video encoding Supports multiple bitstreams of H264/H265 1080P@30fps Hardware coding
video bitstream 128Kbps～2Mbps
network protocol TCP/IP、UDP、IGMP、RTP
network interface Standard RJ45 interface 100M/1000Mbps adaptive
External expansion interface 1 RS485 serial communication, 6 IO level or switch input, 2 IO level or DC12V power output
Protection level IP65
Riot control level IK10
Installation method Wall mounted and embedded, with the bottom of the device about 1.4 meters above the ground
Overall dimensions 173x95x45.5mm (including installation bottom shell) 173x95x42.5mm (bottom shell size)
Note: The same model of product may have multiple versions, and there may be differences between different versions of the product (including functional parameters, logo design, appearance details, product information, etc.). Please refer to the actual product.
Application scenarios
prison
Public places (banks)
park
