1、 Product Introduction CYB603 Industrial Digital High Temperature Pressure Transmitter adopts imported sapphire high temperature pressure sensor, which is processed by temperature compensation and amplification circuit to transmit and output standard industrial signals

Product Details

Brief introduction

CYB603 Industrial Digital High Temperature Pressure TransmitterAdopting importedSapphire high temperatureThe pressure sensor, after temperature compensation and amplification circuit processing, transmits and outputs standard industrial signals.Sapphire has excellent elasticity and insulation properties, and is insensitive to temperature changes. Even under high temperature conditions, it has good working characteristicsCombined with the special structural design of the product, it can withstand high temperatures up to 200 ℃ and is suitable for situations where the medium temperature is high in industrial control processes.

This product has an industrial explosion-proof shell, on-siteLEDDisplay, suitable for high-temperature industrial sites. The product'sStable and reliable performance, easy installation, widely used for pressure measurement of high-temperature gases, liquids, fluids, colloids, steam and other media in petroleum, chemical, metallurgical, power and other fieldsgiveControl.

IITechnical performance

Range of measurement	-100…0～35…100(KPa)	accuracy	±0.3%F.S ±0.5%F.S
Range of measurement	0~1, 2, 20... 200 (MPa)	Long term stability	≤± 0.2% F.S/year
Overload pressure	≤ 200%FS	Medium temperature	-40～+200℃
Measurement medium	Suitable for various liquids and gases of titanium alloy and stainless steel	Response time	≤1ms
Output signal	4-20mA two-wire system	Pressure interface	M20 × 1.5 or user-defined
Output signal	4-20mA two-wire system	Electrical interface	connecting terminal
Supply voltage	12-36VDC (calibrated value is+24VDC)	Protection level	IP65

3、 Product Features

●Wide temperature measurement range－40～+200℃

●high-precision、High stability

●titanium/Silicon sapphire film,Good corrosion resistance

●Strong anti-interference ability and good long-term stability

●Suitable for high temperature pressure measurement

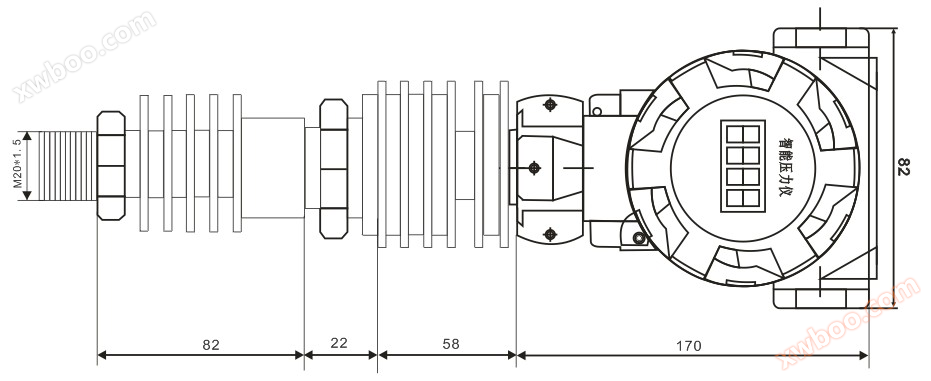

4、 Exterior structure

5、 Product selection

CYB603							Industrial digital high temperature pressure transmitter
	G						gauge pressure
	A						Absolute pressure
		0~X (KPa or MPa)					range
			J03				±0.3%FS
			J05				±0.5%FS
				C1			4~20mA output
				C0			special
					M1		M20 × 1.5 external thread
					M0		special
						F5	Wiring terminal outgoing line
						F0	special
