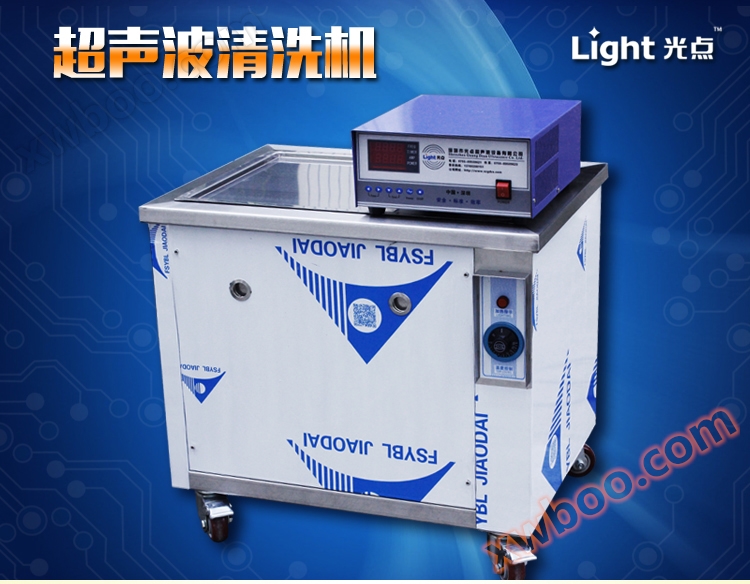

Industrial single slot ultrasonic cleaning machine 1200W28K factory direct sales hardware oil removal equipment

Ultrasonic Cleaning Machinean introduction to:

Ultrasonic Cleaning MachineIt has shown great superiority, especially in specialized and group production enterprises, where ultrasonic cleaning has gradually replaced traditional processes such as immersion, rinsing, pressure washing, vibration cleaning, and steam cleaning; The high efficiency and high cleanliness of ultrasonic cleaning machines are due to the penetrability and cavitation impact force generated by the propagation of ultrasonic waves in the medium, making it easy to clean components with complex shapes, inner cavities, and fine voids; For general processes such as oil removal, rust prevention, phosphating, etc., it only takes two to three minutes to complete under the action of ultrasonic waves. Its speed can be several times or even dozens of times faster than traditional cleaning methods, and the cleanliness can also reach high standards. This highlights the use of other treatments to achieve or cannot be replaced in many situations where high requirements are placed on product surface quality and productivity. Therefore, it is absolutely suitable for cleaning clock parts.

Main features of ultrasonic cleaning machine:
1. Use regular tap water, alcohol, or solvents as cleaning solutions.

2. The cleaning effect of high-power transducers is significant and can be observed with the naked eye.
3. After cleaning, the object shines brightly.
4. Digital LCD controls the startup time.
5. The all stainless steel shell, inner liner, and lid make it look more upscale.
6. The waterproof performance has been greatly improved, making the product safer and more durable.
7. Equipped with heating and constant temperature system.

Ultrasonic Cleaning MachineFeatures:

SUS304/SUS316L/titanium plate, strong corrosion-resistant stainless steel plate, waterproof packaging welding.
2. The radiation surface can be plated with hard chromium to increase hardness and mitigate the effects of weathering corrosion.
3. High Q-value PZT transducer with stable and strong ultrasonic power.
4. The globally unique advanced and stable "KAMSON" digital ultrasonic generator. Shenzhen Spot Ultrasonic Equipment Factory
5．The ultrasonic generatorConnected to the vibration board using fiber optic high-frequency shielded wires to prevent skin effect.
6. Customized according to customer requirements, light spotUltrasonic Cleaning MachineManufacture non-standard equipment with special specifications, different sizes, powers, and frequencies (25KHZ-300KHZ, 1MHz).
7．Ultrasonic Cleaning MachineDifferent control methods can be implemented according to customer requirements, such as ordinary switch control, PLC weak current control, closure control, remote control, etc.

---------------------------------------------------------------------------------------------------------------------------------------------

Ultrasonic Cleaning MachineWorking Principle:

Ultrasonic Cleaning MachineBy using an ultrasonic generator, the oscillating signal with a frequency higher than 20kHz is amplified and vibrated through the sound radiation in a clear medium. The instantaneous high-pressure explosion that causes the cleaning solution molecules to vibrate and generate countless tiny bubbles, resulting in thousands of atmospheres of pressure on the surface of the object, is known as cavitation effect. The dirt attached to the surface automatically peels off. Comprehensive cleaning without blind spots is unparalleled by other cleaning methods. And it does not damage the surface of the workpiece.
Ultrasonic Cleaning MachineCleaning advantages:
Efficient accuracy
Due to the fact that the acoustic energy of ultrasound can penetrate tiny gaps, small holes, and blind holes, it can be applied for cleaning any component or assembly. When the cleaned parts are precision components or assemblies, ultrasonic cleaning often becomes the only cleaning method that can meet their special technical requirements.
Efficient and fast
Ultrasonic cleaningWashing machineCompared to conventional cleaning methods, it is much faster in terms of dust and scale removal for workpieces. The assembly parts can be cleaned without disassembly.Ultrasonic cleaningWashing machineThe advantages of saving labor and replacing manual hand washing often make it the most economical cleaning method.
Consistent wide coverage
Whether the cleaned item is large or small, of any material, simple or complex, single or batch, or in automatic flow line, ultrasonic cleaning can achieve unparalleled uniform cleanliness compared to manual cleaning.

---------------------------------------------------------------------------------------------------------------------------------------------
Ultrasonic Cleaning MachineProduct Features
Adopting bottom vibration or opposite vibration ultrasonic cleaning methods: Each ultrasonic transducer has a power of 60W, 100W, and can be selected from different frequencies such as 20KHz/25KHz/28KHz/40KHz/68KHz/80KHz/120K. The ultrasonic transducer is a Japanese "NTK" brand high-Q piezoelectric crystal transducer, and the ultrasonic cleaning machine has strong power.
Heating power: optional and customizable, heating method: plate electric heating or 304 tube immersion heating. Temperature control range: RT-110 ℃. Using mechanical control or digital display is more precise and accurate.

---------------------------------------------------------------------------------------------------------------------------------------------
Ultrasonic cleaning machine material and structure:
*Adopting fully imported thickened stainless steel (designed and manufactured with different materials such as 304, 316, titanium plate, etc.), it is acid and alkali resistant, beautiful and durable.
*Imported high-Q piezoelectric crystal transducers and powerful ultrasonic cleaning machines. The cleaning effect is obvious.
*The automatic constant temperature system is adjustable from 30-110 ℃.
*24-hour continuous work, suitable for large-scale production.
Ultrasonic cleaning machine warranty and after-sales service:
All equipment sold by the Light Spot Ultrasonic Cleaning Equipment Factory is covered by a one-year nationwide warranty and lifetime maintenance.

---------------------------------------------------------------------------------------------------------------------------------------------

Electroplating products, stainless steel products, brass products, aluminum products

Cleaning of automotive and motorcycle parts, metal stamping parts, electronic and electrical components, oil pumps and nozzles, compressor parts, semiconductor silicon wafers, pre-treatment in the electroplating industry, and spray nozzles and filter elements in the chemical fiber industry.
