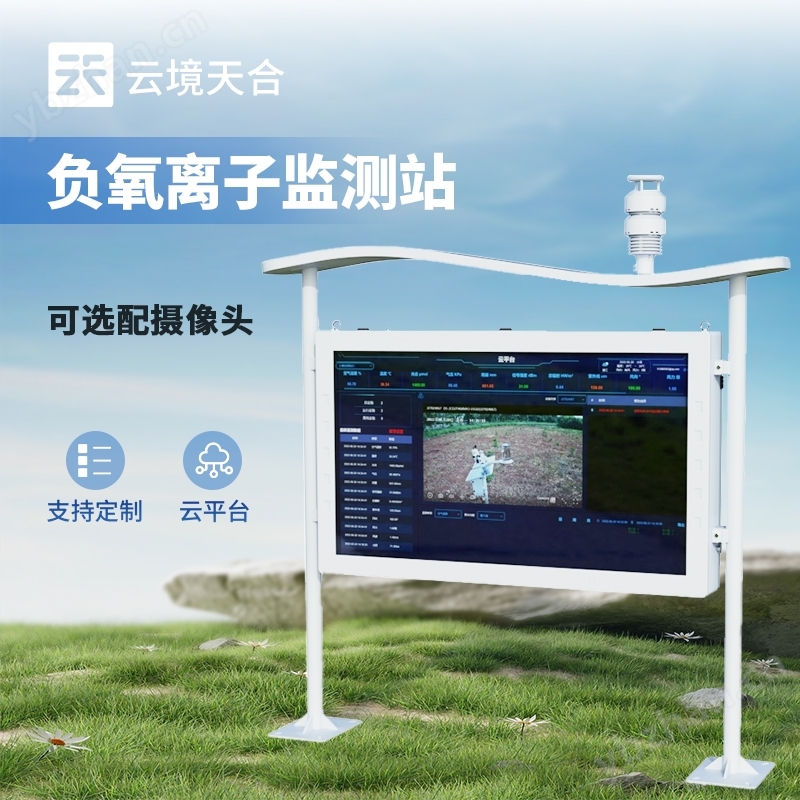

Integrated high intelligence negative oxygen ion monitoring station

Integrated high intelligence negative oxygen ion monitoring stationIt is a highly specialized environmental monitoring device that features multi parameter monitoring, high-precision measurement, full color screen intuitive display, intelligent warning and remote management, high integration and easy maintenance, and adaptability to complex environments. It is widely used in various fields such as tourist attractions, ecological reserves, urban parks, health and wellness industries, smart cities, schools, and hospitals. Synchronized monitoring of air temperature, humidity, and other meteorological elements PM2.5、PM10、 Comprehensive assessment of environmental quality based on parameters such as atmospheric pressure, oxygen content, noise, wind speed, and direction.

1、 Product Introduction

Integrated high intelligence negative oxygen ion monitoring stationIt can monitor the concentration of negative oxygen ions in the air 24/7, and can also expand monitoring items according to user needs, such as air temperature, air humidity, etc PM2.5、PM10、 Meteorological factors such as atmospheric pressure, oxygen content, noise, wind speed, and direction. Integrated sensor design, no mechanical displacement, high accuracy, long service life

On site data can be read through the full-color LCD screen, and can also be viewed in real-time on the remote cloud platform/WEB/WeChat official account

On site users can customize and add songs, as well as exceed the standard voice broadcast

2、 Application scope

Tourist attractions, ecological estates, wetland parks, waterfall parks, forest parks, nature reserves, sales offices, schools

3、 Technical parameters

1. Wind speed: Measurement principle ultrasonic, 0-60m/s (± 0.1m/s) resolution 0.01m/s

2. Wind direction: Measurement principle ultrasonic, 0-360 ° (± 2 °) resolution 1 °

3. Air temperature: Measurement principle - diode junction voltage method, -40-60 ℃ (± 0.3 ℃) resolution 0.01 ° C

4. Air humidity: Measurement principle capacitive, 0-100% RH (± 0.3% RH) resolution 0.1% RH

5. Atmospheric pressure: Measurement principle pressure resistance type, 300-1100hPa (± 0.25%), resolution 0.1hPa

6. PM2.5: Measurement principle: light scattering, 0-1000ug/m3 (± 10%) resolution: 1ug/m3

7. PM10: Measurement principle: light scattering, 0-1000ug/m3 (± 10%) resolution: 1ug/m3

8. Noise: Measurement principle capacitive, 30-120dB (± 1.5dB) resolution 0.1dB

9. Negative oxygen ions: Measurement principle: cylindrical electrode suction type, 0-100000/cm ³ (± 10%) resolution 1/cm ³

10. Oxygen content: Measurement principle electrochemical, 0~25% Vol (± 3% FS) resolution 0.1%

11. Screen: Resolution 1920 (RGB) × 1080 (FHD), operating frequency 120Hz, brightness 1500-2500 cd/m2

12. Pole: Carbon steel double column, capable of withstanding 15 level strong typhoons

13. Working environment: temperature -40 ℃ -60 ℃, humidity 0% -100%

14. Data storage: can store raw monitoring data for one year

15. Data transmission: 4G/fiber optic

16. Power supply mode: 220V mains power

17. Power consumption: 500W

4、 Product Features

1. The whole machine adopts a highly integrated modular design, standardized electrical design, and clear working status, which can achieve rapid maintenance

2. Waterproof: The main structure is made of 2-3mm carbon steel, combined with composite sealing strips, to achieve multi angle waterproofing

3. Dust prevention: The bottom of the equipment is equipped with a filtering device that can filter dust particles larger than 5 μ m. At the same time, the filtering cotton can be quickly replaced from the outside without the need for professional personnel to operate

4. Lightning protection and leakage prevention: There are lightning protection devices and leakage protectors inside to protect the safety of the machine and surrounding personnel

5. Adopting high transparency, high temperature resistance, and high-strength tempered glass, it is fire-resistant, scratch resistant, and explosion-proof

6. Speaker: Outdoor high-power waterproof speaker, dual channel design, clear and three-dimensional sound

7. Built in photosensitive probe can effectively identify changes in lighting and automatically adjust screen brightness

8. The display screen adopts LCD liquid crystal display, with a lifespan of up to 50000 hours, environmentally friendly and energy-saving, high dynamic contrast, and clearer display screen

9. The cooling system adopts industrial grade eddy current centrifugal fans with high air volume, high speed, and low noise. It is equipped with built-in temperature sensing probes to effectively identify internal temperature changes. At the same time, the response temperature and response speed can be adjusted according to the on-site environment to achieve low energy consumption and precise temperature control

10. Built in time control switch, can set predetermined opening and closing time

11. Full color display interface, the device automatically enters the meteorological monitoring platform when turned on (the display screen supports limited customization)

12. Optional camera, display interface can synchronize camera images

13. Integrated sensor, sensor integration, easy installation, simple maintenance

5、 Introduction to Cloud Platform

1. CS architecture software platform, supporting direct observation through mobile and PC browsers without the need for additional software installation.

2. Support multi account and multi device login

3. Support real-time data display and historical data display dashboard

4. Cloud servers and cloud data storage are stable, reliable, easy to scale, and load balanced.

5. Support SMS alarm and threshold setting

6. Support map display and viewing device information.

7. Support data curve analysis

8. Support data export in tabular format

9. Support data forwarding, HJ-212 protocol, TCP forwarding, HTTP protocol, etc.

10. Support data post-processing function

11. Support external running of JavaScript scripts

12. Support synchronizing local weather forecasts
