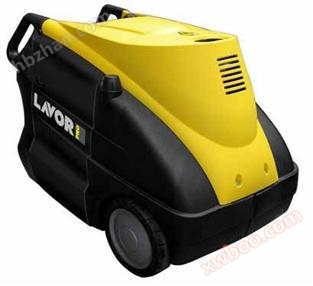

Italian LAVOR high-pressure water heater

Instructions for Cold/Hot Water High Pressure Cleaning Machine

• Four motor (1450 rpm) with temperature sensitive overload protection device. The "three piston" radial reciprocating high-pressure pump is equipped with a brass material pump head and an external (replaceable seat) side pressure relief valve.
• High pressure and low-pressure valve components made of stainless steel material. The maximum allowable inlet water temperature is 40 ℃. Safety relief valve.
• The independent motor drives the blower and fuel booster pump.
• Stainless steel vertical boiler with high thermal conversion efficiency.
• Equipped with a waterproof scaling agent tank and an automatic control and addition system.
• Integrated device type cleaning agent cylinder, cleaning agent water dilution regulator, high-pressure spray cleaning solution. Oil filled (glycerin) pressure gauge.
• 7-meter-long power lead.
• Numerical control thermostat can accurately regulate the working temperature.
• The spray gun is equipped with an anti twist hose connector and an output water regulator, so it can be used in conjunction with the steam working mode.
• Prevent excessive power supply drop insurance circuit breaker.
• Data display table, displaying records of working hours, inspecting the working conditions of motors and boilers, and information on fuel shortage supply; It has also been equipped with a power-off function to prevent high-voltage system leakage.
• A sturdy backbone structure.
• Alternative accessories:
  High pressure hose drum with locking device. The length of the wrapped hose can reach 40 meters/43.6 yards

Standard configuration:

Brass material inlet joint

The trigger spray gun is equipped with an output water regulator, which can perform steam mode cleaning work

High pressure spray bar (700mm)

Application: High pressure nozzle

Quick high pressure hose connector

High pressure hose (10 meters)
