LED display waterproof testing equipment IPX4 rain testing machine Yuexin brand 2-year warranty

NegotiableUpdate on 03/22

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Compliance with execution standards IEC60529:1989+A1:1999+A2：2013《Degreesofprotectionprovidedbyenclosures(IPCode)》、GB4208-2017《 Clause 14.2.3 and 14.2.4 of the "Protection Class of Enclosures (IP Code)" and Figure 4, as well as Clause 9.2.4 and 9.2.5 of GB7000.1 "Luminaires Part: General Requirements and Tests" and Figure 9.4 requirements

Product Details

lExecution standards

conform toIEC60529:1989+A1:1999 +A2：2013《Degrees of protection provided by enclosures(IP Code)》TheGB4208-2017The Protection Level of the Shell(IPcode)》14.2.3、14.2.4Terms and figures 4 reachGB7000.1Lighting fixtures Part: General Requirements and Tests9.2.4、9.2.5Terms and figures 9.4 requirement.

lProduct Details

lEquipment parameters

brand	Yuexin YUEXIN (Guangzhou Yuexin Testing Equipment Co., Ltd.)
Equipment model	YX-IPX34C-R600
after-sale service	National two-year warranty special vehicle delivery
Pipe size	R600mm (R400mm, R200mm can be added)
Equipment external dimensions	Approximately 2400mm in length, 1800mm in depth, and 2000mm in height
Rotation mode of turntable	Alternating between forward and reverse rotation
Turntable lifting height	750-1350mm
Rotating platform load-bearing capacity	50KG
Pipe angle	120 º (IPX3), 350 º (IPX4) or custom settings
Equipment power supply	220V
Test sample power supply	220V
Power	1.0KW
Protection function	Leakage protection, water shortage protection, short circuit protection

lProduct characteristics

1. Suitable for conducting IPX3 and IPX4 waterproof rating tests on products.

2. Model structure: Adopting a double column structure, easy to install, and the swing tube rotates smoothly.

3. The equipment casing and turntable are all made ofSUS304 # stainless steel plateManufacturing, long-term use without rusting.

4. in-boxInstalled with water storage tankThe water tank is equipped with a water level float ball valve to automatically control the water inlet, and has high and low water level alarm detection, effectively preventing the water pump from being damaged due to water shortage.

5. Swing tube drive: using imported Panasonic servo motors (which have low noise,swing pipeAdvantages such as speed.

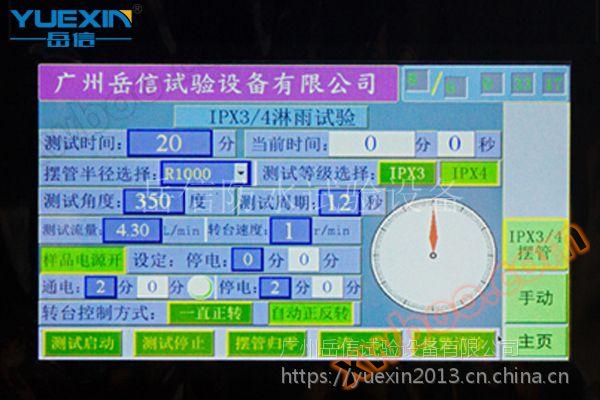

6. Rotary table drive: using domestically produced stepper motors, the speed and angle can be set and adjusted on the touch screen, infinitely adjustable within the standard range, and can automatically control the forward and reverse rotation (suitable for sample power on testing to prevent winding).

7. The testing time can be set from 0-999min (adjustable); The sample power supply can be powered on or off for a certain period of timepass throughProgram control: power outage（0-999 min）—power on（0-999min）—power failure（0-999min），Applicable to samplesPower on and off are required during testing.
