DM1096F Intelligent Device Running Time Recorder

I. Overview

DM1096F seriesMonitoring Equipment Operation Time Record TableTo determine whether the user's equipment is running on or off, the switch status, current measurement, or instrument power supply can be used. The instrument displays, stores, and communicates the status and accumulated time length, and can be connected to on-site industrial equipment such as computers through an RS485 communication interface to form an industrial measurement and control system; Record the running time and stop time of the device based on the internal clock, which can be queried through buttons and exported as an EXCEL file through a USB drive. It can record 20000 sets of data (starting and stopping 50 times a day, recording full memory in 400 days), including the time (year, month, day) and status of the switch action. The data recording adopts a first in first out cyclic recording method.

Simple description of function: Instrument power supplyDC24VCompatible adapterAC85-265VPower supply, input judgment can be set as switch quantityACDCvoltage Current size (AC/DC current or shunt transformer, etc.), instrument power supply, with isolation and lightning protectionRS485Interface, plug inUAutomatically export data from the disk and generate itExcelDocument.

2、 Functional Features

Wide temperature LCD intuitive display: status, working time, total accumulation, Chinese and English operation interface.

Record the time of each action, count the length of working time per day, and record the power on and power-off of the instrument.

Large capacity storage, capable of recording 20000 sets of data, with first in first out loop recording.

Judging the operating status of user equipment through switch status, measurement of current magnitude, or instrument power supply.

Built in rechargeable nickel hydrogen battery, hardware clock, power outage does not affect clock operation.

Equipped with isolated RS485 communication function, it can be connected to a computer.

Wide range power supply voltage supply.

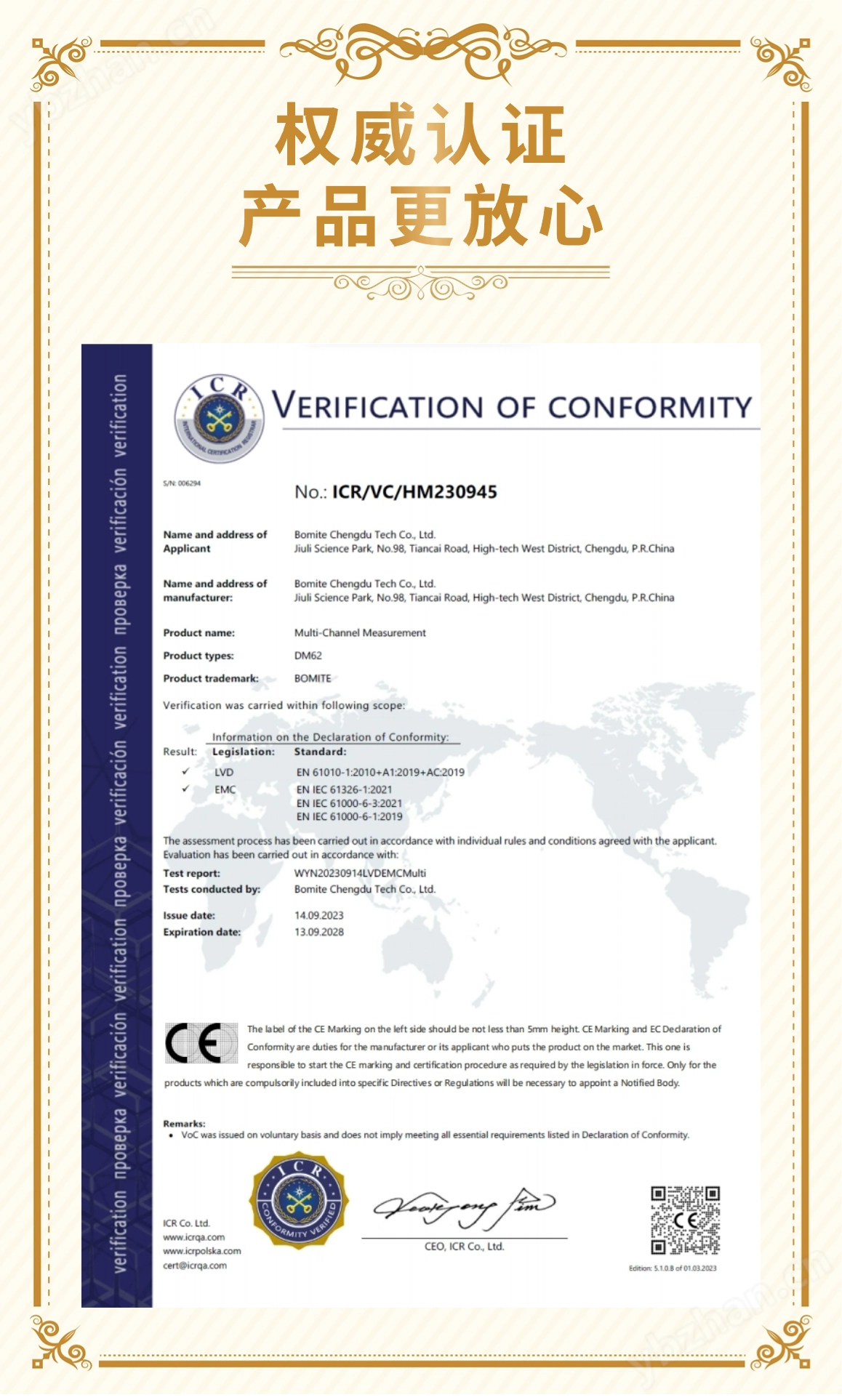

The product has obtained CE certification.

3、 Main technical indicators

4Monitoring Equipment Operation Time Record TableProduct wiring

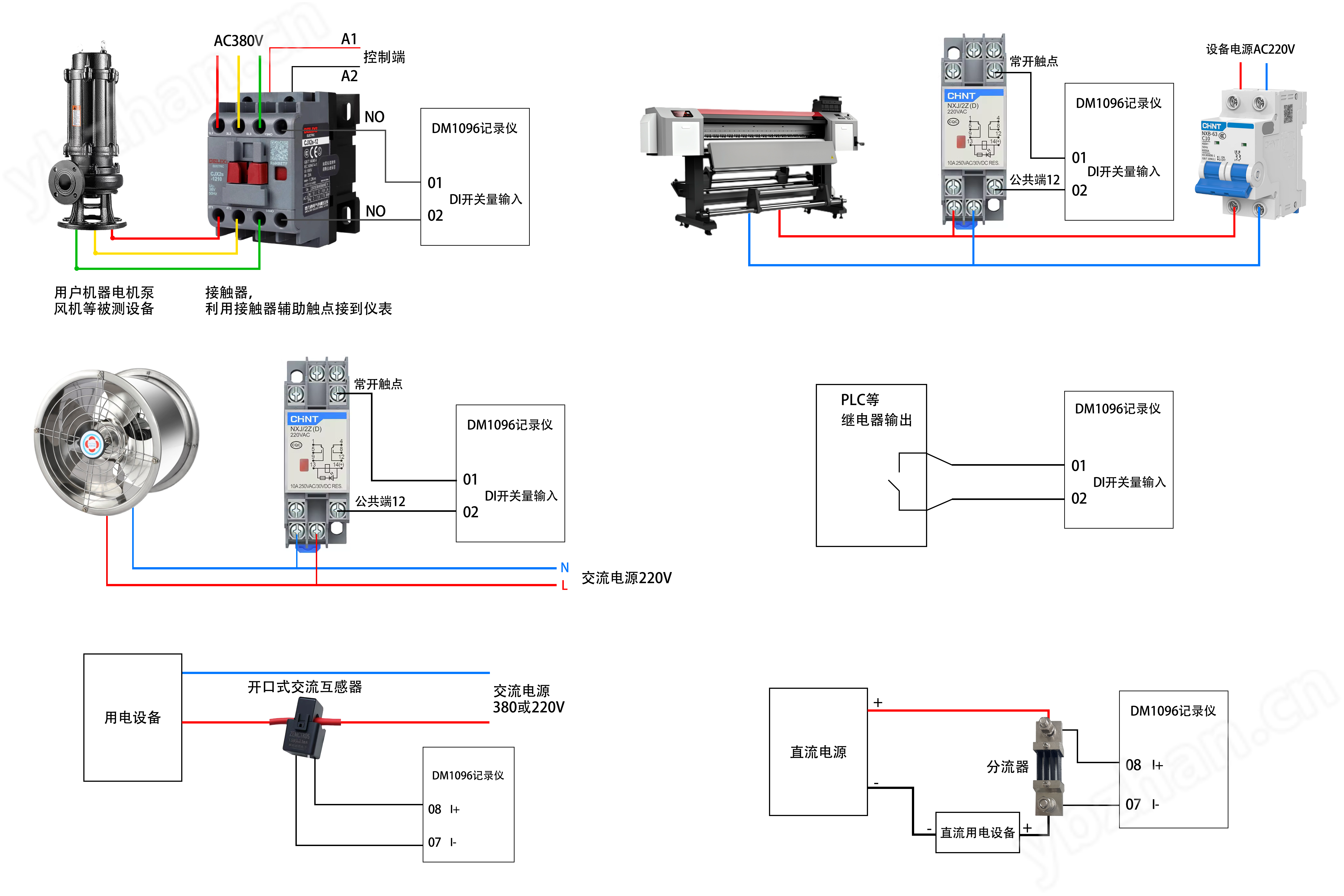

The current input terminals 07 and 08 are compatible with AC and DC. When ordering, the default input range is AC/DC0-5A. Input splitters ranging from 0-75/100mV or transmitters ranging from 4-20mA or 0-100mA can be ordered; Only one specification can be selected for terminal 01, 02 switch input, 5-24V level input, or AC85-265V. The instrument power supply can be used as an input timing signal and set as a parameter to achieve it.

5、 Product selection

Intelligent device runtime recorder DM1096F-□□□-□()

① ②③ ④⑤

Note: 1. The selection must be complete, and any functions not selected must also be filled in with code.

2. The input signal can be set to be powered by the local instrument, that is, it can be recorded by only connecting the instrument power supply.

3. Other current ranges can be set as 4-20mA, 0-100mA, 0-75/100mV shunt, etc.

Selection example: DM1096F-KAS-A, input compatible switch/0-5A/instrument power supply, with RS485, equipped with adapter AC85-265V power supply.

DM1096F-NN-A， Instrument power supply is used as input timing signal, without communication, equipped with adapter AC85-260V power supply.

DM1096F-KAN-D(DC200mA)， Input compatible switch quantity/DC200mA/instrument power supply, without RS485, DC12/24V power supply.

6、 Operating instructions

（1） The key functions of the instrument panel are touch sensitive keys, please do not press them hard when using.

4. Record clearing

Clearing records refers to clearing all start and stop record files. The data recording adopts a first in first out loop recording method, where the earliest record is overwritten when the record is full. Start and stop 50 times a day, record full memory in 400 days.

Accumulated records refer to resetting the current accumulated time duration to zero.

7、 Data export

（UThe disk is inserted when data needs to be exportedUSBInterface, usually not plugged into the interface)

The data records are stored in the internal memory of the instrument. When exporting data, insert the USB flash drive into the screen to prompt the USB flash drive symbol. Export the data from the recorder to a USB drive to generate an Excel spreadsheet file, which can be opened using Excel in Office software.

The USB flash drive needs to be formatted in FAT or FAT32 format. If there is a failure in exporting the USB flash drive, it is necessary to format the USB flash drive and try again. Generate two files for each channel and record the instrument power on/off time. For example, the file name ABCD-AL2.CSV, where ABCD - is the data for parameter settings, A represents the first export (to ensure that multiple exports to the USB drive are not overwritten), L represents the input action record list, and 2 represents the second channel. The file name ABCD-AS2.CSV represents the daily running time length of the second channel statistics. The file name PD.CSV is the power on/off record file of the instrument.

8、 Communication Printing Instructions

(1) This product can come with two independent communication interfaces, one for communication and the other for connecting to a micro printer. The RS485 standard communication distance is 1.5km and can be connected to multiple instruments. The data format consists of 1 start bit, 8 data bits, and 1 stop bit, and the checksum can be set. To avoid communication conflicts, the instruments are all in listening mode. The computer sends a command to a certain instrument at a specified address, and then waits for a period of time for the instrument to respond. After the instrument receives the correct command, it sends out the data. After sending, the instrument is in listening mode again. In the same system, instrument addresses cannot be the same, and baud rates must be consistent.

(2) Adopting the standard Modbus RTU communication protocol, using the 03, 04, and 06 function numbers. When using configuration software, standard Modbus or Modicon (XX Kang) PLCs can be selected, Modbus RTU address type, function number 3X or 4X can be used, register address starts from the first, data is integer 16 bits, and using configuration software registers starts from 4x001 or 4x000 (or 3x001 3x000). The communication transmission data is signed integer data, and the decimal places need to be processed according to the actual situation. When the data is greater than 0X8000, the actual negative value is obtained by adding 1 in reverse. For example, if the communication transmission data is 0XFFFF, the corresponding data value is -1, and if the communication transmission data is 0XF012, the corresponding data value is -4078. For long integer data such as cumulants, the data value is equal to the high-order x 65536+low order; During configuration, users can also choose the data type as long integer (Long), and the system will automatically calculate the cumulative amount. Register 4x1024/25 is a 32-bit single precision floating-point number type for current measurement values, following standard IEEE754, such as 0x42CAFBCF corresponding to 101.4918.

9、 Warranty
If it is a quality issue caused by the manufacturer's manufacturing, the instrument will be repaired free of charge by the manufacturer from the date of manufacture. If it is due to storage and use
Damage caused by improper handling will incur repair costs. The warranty period is eighteen months.
