Model: BMT-KM3S1

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

BMT-KM3S1 is a multi master one slave serial converter that supports communication between three RS485 master stations and data exchange between one RS485/232 slave station. This device is mainly used to solve the problem of data timing conflicts caused by communication between multiple master stations and slave stations, thereby achieving simultaneous communication between multiple master stations; For example, PLC, computer, and touch screen human-machine interface all need to collect temperature measurement data from multi-channel temperature inspection instruments.

Product Details

BMT-KM3S1 Intelligent Communication Converter

1、 Functional Features

l Support threeRS485The host device and the slave device communicate simultaneously.

l Transparent transmission, no communication protocol restrictions required.

l Set the baud rate checksum and other serial port formats for each serial port.

l Number of slave machines in real-time working mode/The number of command data strings is not limited, exceeding8A suggestion to useRS485Hub isolators improve reliability.

l Cache based working mode responds quickly, and it is recommended that the slave not exceed4One.

l DCDCIsolation, optocoupler isolation, lightning protectionRS485Interfaces, each interface is isolated from each other.

l wide voltageDC9-36VPower supply, reverse power protection design.

l DIN35Installation method of guide rail.

2、 Main technical indicators

Host Interface	COM2/3/4: 3 RS485 ports	surge protection	5KA
Slave interface	COM1：RS485、RS232	Isolation voltage	400V
Baud rate	1.20-57.60Kbps ports can be configured	power supply voltage	DC9～36V， Terminal wiring/DC-022 socket
Serial port format	8 data bits 1 stop bit checksum can be set	Power	<2W
Communication Protocol	Transparent transmission, no protocol restrictions	Working environment	Temperature -20~60 ℃ Humidity<85% RH
ESD protection	15KV	Size installation	L125 × W72 × H35mm, DIN35 rail

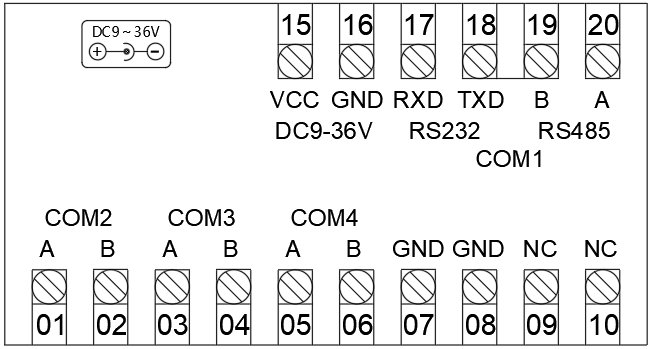

3、 Multi master one slave serial converter terminal wiring

4、 Application scenarios
