Multi purpose new electronic pressure gauge calibration table manufacturer price

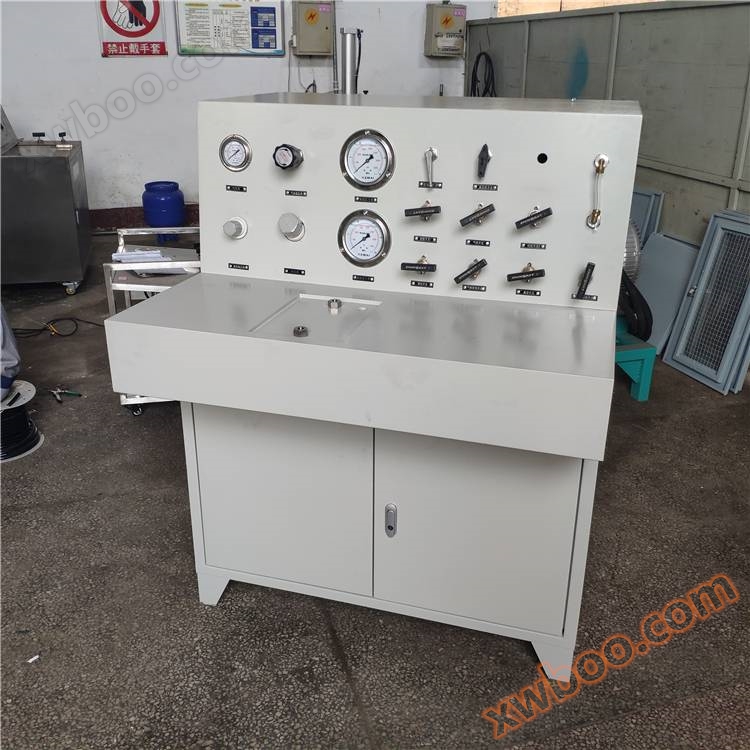

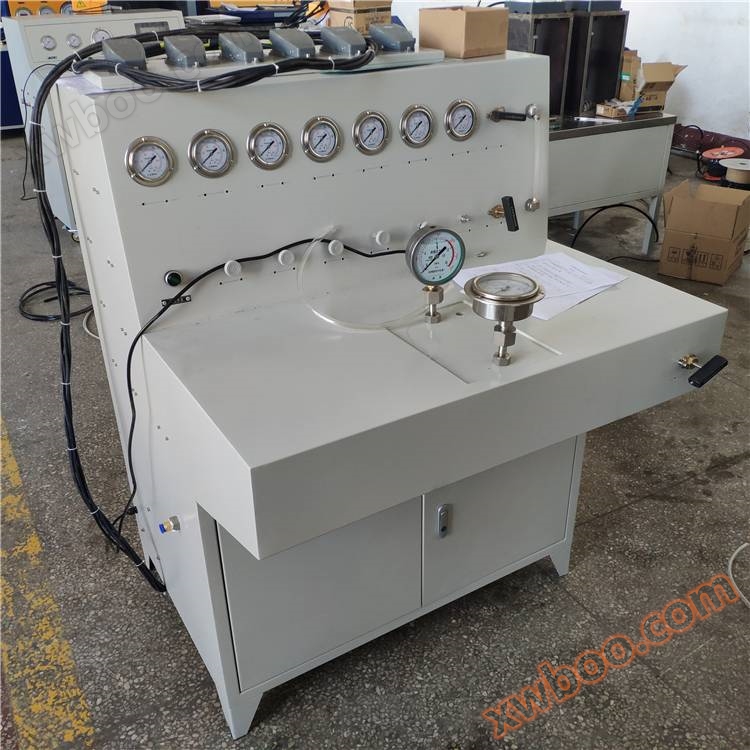

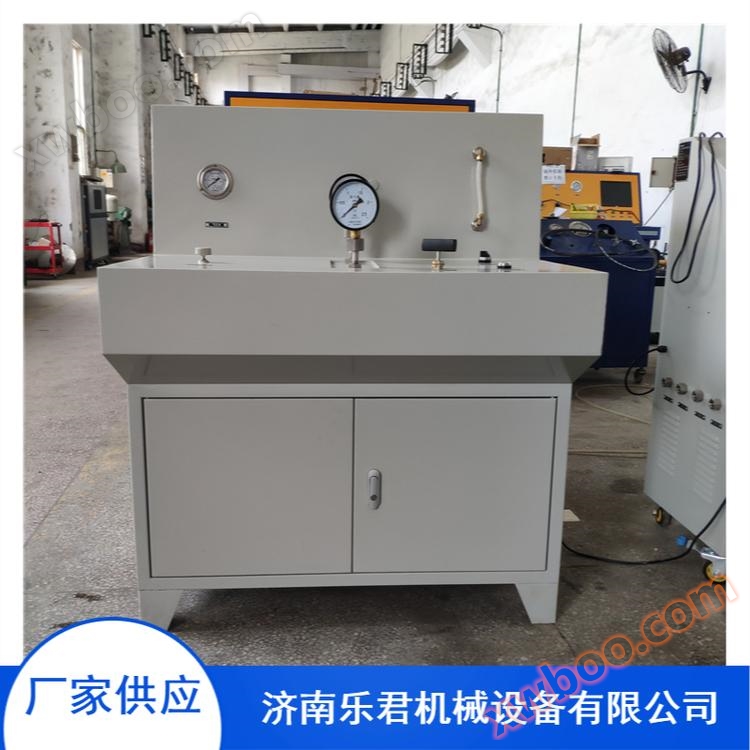

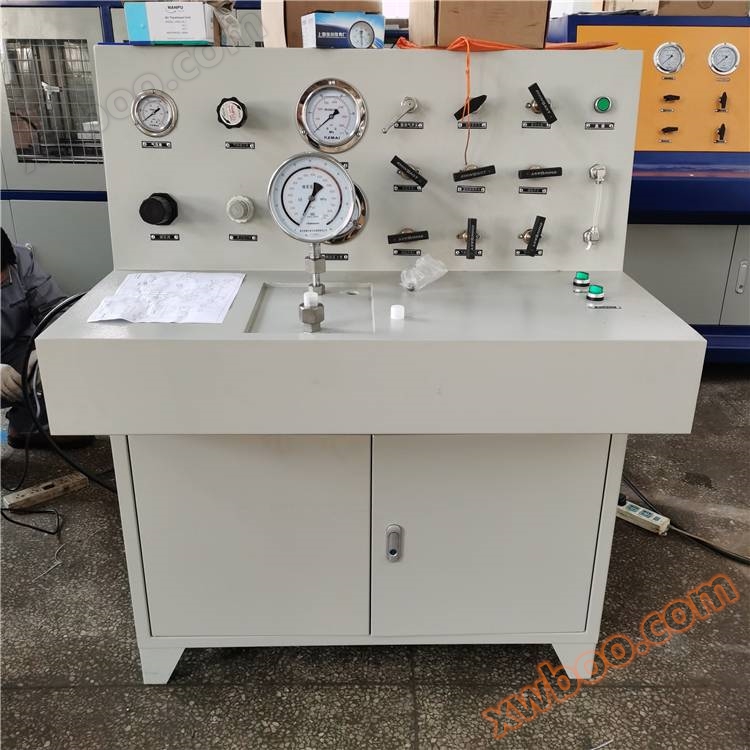

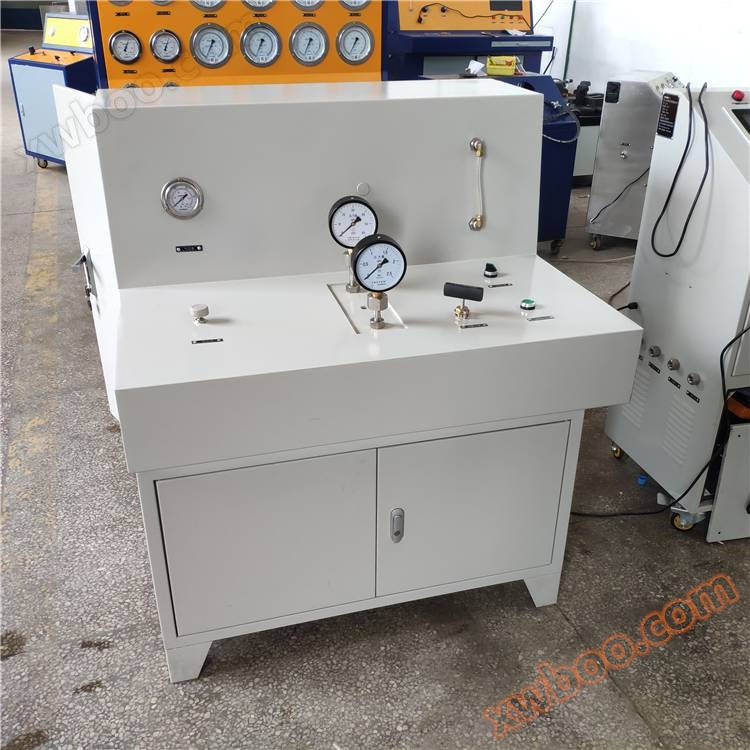

The Jinan Lejun pressure gauge calibration test bench is a fast pressure gauge calibration device developed based on the actual needs of pressure gauges. The equipment mainly uses a vacuum pump to obtain negative pressure, and a gas-liquid high-pressure booster to provide positive pressure detection pressure. The connection between the detection gauge and the standard gauge adopts a quick connection, making the entire equipment easy to operate, safe and efficient.

The high-end model can preset multiple sets of pressure calibration points, with foot pedal control, making calibration convenient and fast, and increasing efficiency exponentially. The pressure gauge calibration platform uses a gas-liquid high-pressure booster as the pressure source, powered by compressed air, and outputs hydraulic pressure proportional to the driving gas source pressure.

Install the benchmark table and the calibrated table onto the interface of the test bench

1. The manual control type can directly adjust the calibration table [pressure regulating valve] for pressure calibration.

2. Use and adjust 4 sets of preset pressure calibration points for the automatic control type;

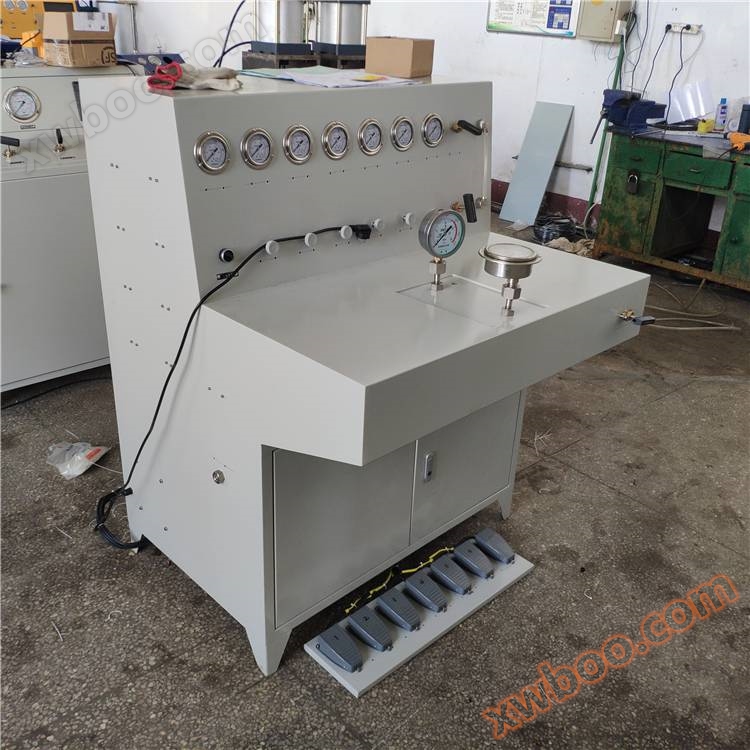

Press the foot switches for 【 Pressure 1 】, 【 Pressure 2 】, 【 Pressure 3 】, and 【 Pressure 4 】 respectively to verify the four preset pressure calibration points;

After verification, step on the foot pedal to release the system pressure and remove the calibrated meter;

Verification completed.
