Online high-speed industrial grade LED dedicated surface mount machine L8A

　

Granite sports chassis+adjustable mounting head design=high-speed stability and high precision=L8A

What is L8A?

1. L8A is a fully automatic LEDpick-and-place machine.

2. L8A is a specialized placement machine for LED light strips.

3. L8A is an online LED light strip placement machine. Can work with fully automaticscreen printing machine、reflow solderingRealize seamless connection.

4. L8A is a high-speed LED light strip placement machine. A 1200mm light strip with an actual mounting speed of 25000-30000 cph (3528 chip)

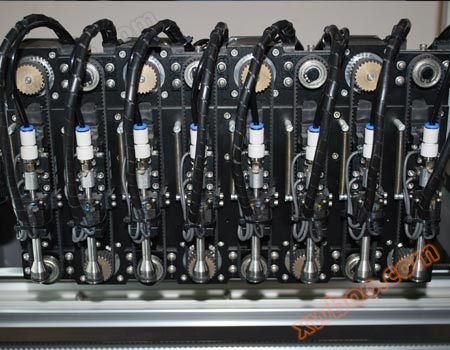

5. L8A is an LED placement machine with 8 mounting heads.

6. L8A is a high-precision LED light strip placement machine.

7. The meaning of the L8A model: L represents dedicated to the LED industry, and 8 represents 8 sets of sticker heads. A represents that the spacing between the sticker heads can be adjusted according to the spacing between the LED chips on the circuit board.

8. L8A is an industrial grade LED light strip placement machine. The entire chassis is made of granite ground, with a thickness of up to 150mm for the moving chassis and a flatness tolerance of up to 0.009mm. The mechanical accuracy changes little after long-term use. The granite chassis has been aged for a long time, with a uniform organizational structure, extremely low coefficient of linear expansion, disappearance of internal stress, and no deformation. This chassis has a water absorption rate of less than 0.13% and a Shore hardness of HS70 or higher. Ensure that this SMT machine has been in use for over ten years with minimal changes in accuracy.

　L8A features:

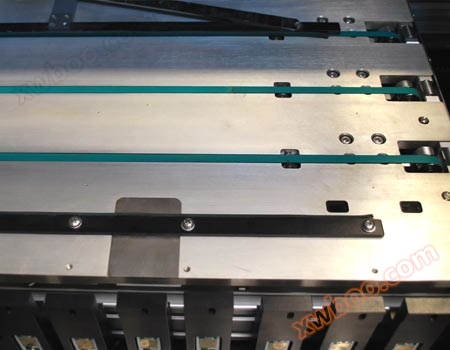

1. The transmission of the circuit board is achieved by using precision motors to drive industrial belts and precision guide rails, effectively improving the precision of surface mounting.

2. High precision motion platform technology using integrated design and manufacturing of granite. Ensure that the surface mount machine is used for more than ten years with minimal changes in motion accuracy, and the integrated structure also has seismic resistance.

3. Configure 8 sets of sticker heads to increase production efficiency by over 500% compared to 1 set.

4. Automatic visual programming is available, eliminating the need for manual input of component coordinates. Programming is simple, convenient, and practical for operators, meeting the needs of large-scale and multi variety product production.

5. Configuring different feeders can meet different LED mounting requirements.

6. High cost-effective LED placement machine, suitable for the production needs of large-scale LED production.

7. The entire machine is controlled by an industrial computer in conjunction with specialized software, making it easy to operate and practical.

8. It is very convenient to import circuit board CAD data.

9. It can program and install LED panels very stably and conveniently.

10. All coordinate points in the layout can be displayed in the software and fine tuned to achieve high-precision mounting.

11. The spacing between each layout can be set in the software, and all feeding coordinates can be displayed based on the spacing. You can choose not to paste the layout.

12. The software can achieve automatic optimization of eight groups of sticker titles.

13. Add limit detection for XYZ axis movement in the software.

14. The software has added a multi speed transmission function, which can obtain the ideal speed based on the moving distance and set the speed according to the table, which can improve the stability of the machine for long-term use.

15. The entire PCB platform has vacuum suction function, which makes the positioning of large PCB boards smoother and effectively improves the precision of surface mounting.

16. The machine realizes online transmission of circuit boards, effectively saving labor and improving efficiency. Compared to similar products, it can save at least one operator. If cooperatingAutomatic screen printing machineIt can save at least two operators. Improved the production efficiency and long-term cost of the entire production line.

L8A standard configuration:

1. 1 set of computer

2. Adjustable sticker opening 8 sets

3. 8 suction nozzles

4. Feeder chassis GFTA-T08 1 set (single-sided)

L8A optional accessories:

1. 8mm, 12mm, 16mm, 24mm, 32mm automatic feeders

2. Suction nozzle

3. Industrial air pump

4. UPS uninterruptible power supply

5. Feeder chassis GFTA-T08

　L8A Technical Parameters

	L8A
Maximum circuit board area	1200×280mm
Maximum range of movement	X 轴1500 mm，Y 轴410mm
Maximum Z-axis movement range	15mm
Actual SMT speed	25000-30000 cph (3528 chip)
Theoretical maximum surface mounting speed	35000cph
Repetitive SMT accuracy	±0.05mm
Alignment method	Visual positioning+mechanical positioning
Can mount electronic components	Resistive and capacitive components above 0603 and various LED chips, while meeting SOP SOT chip mounting requirements
programming method	Automatic data import/video learning/keyboard input
Belt feeder	8mm, 12mm, 16mm, 24mm, 32mm electric intelligent feeders
Number of feeders	Can accommodate 8 GF series electric intelligent feeders (up to 16 GF series feeders can be optionally selected)
operating system	WINDOWS XP/WIN7(32bit)
compressed air	80psi（0.5Mpa）， Gas flow rate ≥ 160L/M
power supply	220V,50Hz，4.5Kw
weight	800kg
External volume	2510×760×1280mm
