PH-MD17AT/BT inverted metallographic microscope

PH-MD17AT/BT inverted metallographic microscope is equipped with excellent flat field achromatic objective lens and large field flat field eyepiece. The illumination system adopts Kohler illumination method, and the field of view illumination is uniform. The product has a compact structure and is easy and comfortable to operate. Suitable for microscopic observation of metallographic structure and surface morphology, it is an ideal instrument for research in metallurgy, mineralogy, and precision engineering.

● Observation system

Hinged observation tube: binocular observation tube, adjustable single view, tube tilted at 30 °, comfortable and beautiful. Three eye observation tube, which can be connected to photography and video devices. Eyepiece: WF10X large field flat field eyepiece, with a field of view range of 18mm, providing a wide and flat observation space.

●mechanical stage

Mechanical mobile stage with a built-in rotatable circular stage, which can be rotated during polarized observation to meet the requirements of polarizer inspection.

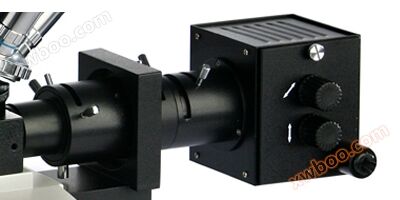

●Lighting System

Adopting the Kola illumination method, the aperture stop and field stop can be adjusted for aperture size through a dial, ensuring smooth and comfortable adjustment. The optional polarizer can adjust the polarization angle by 90 degrees to observe microscopic images under different polarization states.

●Function Expansion

By configuring camera observation accessories (CCD connector, digital camera connector, digital SLR camera connector, etc.), high-definition digital recording and camera observation can be achieved.
