PH50 series biological microscope

PH50 series biological microscope, excellent optical system design, classic shape, lightweight and beautiful, easy to observe and use, not easily fatigued after long-term observation. Multiple configurations are available, which can be connected to cameras, electronic eyepieces, etc. It is a multifunctional microscope.

The PH50 series biological microscope can be used for teaching, research, clinical experiments, and scientific analysis in biology, pathology, bacteriology, and many other fields such as universities, medical and health institutions, laboratories, and research institutes.

Product features:

● Wide angle eyepiece

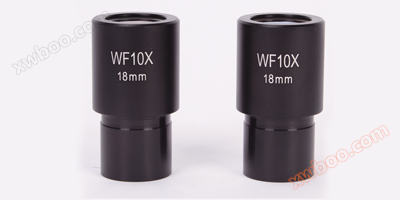

Wide angle WF10X/18mm

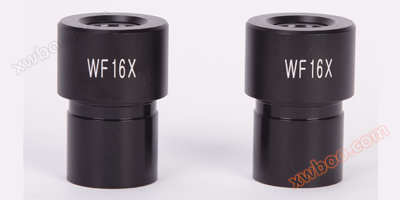

Wide angle WF16X/15mm

● Achromatic objective lens

4X, 10X, 40X (bullet), 100X (bullet oil)

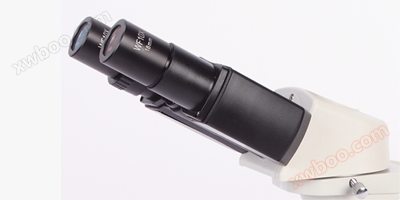

● Adjustable binocular tube

Articulated binocular, tilted at 30 °, pupillary distance: 48-75mm

Double layer mechanical mobile platform

Size: 115X125mm, 140x132mm (optional)

Mobile range: 76mmX52mm

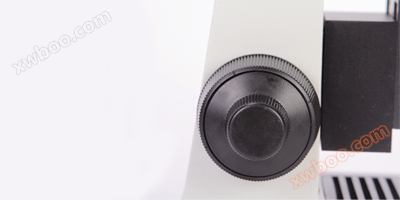

Coarse micro coaxial focusing

Coarse adjustment stroke: 22mm, fine adjustment accuracy: 0.002mm

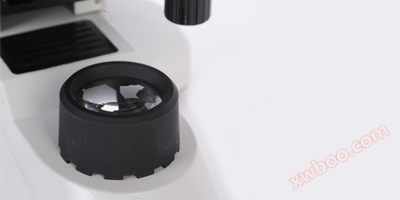

● Lighting system

Upper light source: 1W LED cold light source with lens (not standard, optional)

Lower light source: LED 3W, adjustable brightness

● Power supply

External switch power supply (adapter), AC100V-240V，DC5V/2A
