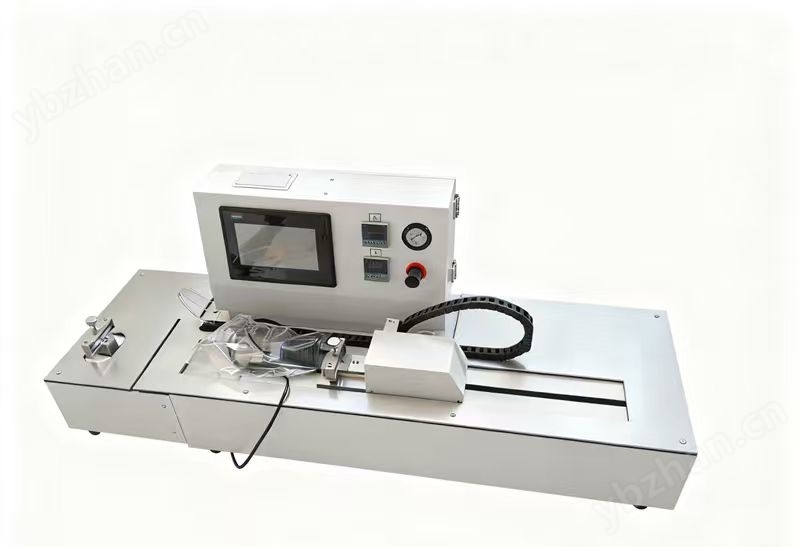

Plastic film thermal adhesion tester

NegotiableUpdate on 12/24

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The plastic film thermal adhesion tensile tester is specialized in testing the thermal adhesion and sealing performance of packaging materials such as plastic film and composite film. It is also suitable for testing the peeling and breaking of soft materials such as adhesives, adhesive tapes, stickers, adhesive composites, composite films, plastic films, and paper.

Product Details

塑料薄膜热粘拉力试验仪

Product Introduction:

Plastic film thermal adhesion testerSpecializing in testing the thermal adhesion and sealing performance of packaging materials such as plastic film and composite film. It is also suitable for testing the peeling and breaking of soft materials such as adhesives, adhesive tapes, stickers, adhesive composites, composite films, plastic films, and paper.

Product Features:

Four testing modes: hot adhesion, heat sealing, peeling, and tensile strength, one machine for multiple purposes

Temperature control technology can quickly reach the set temperature, effectively avoiding temperature fluctuations

Four levels of force range and six levels of test speed to meet different testing requirements

Meet the standards for thermal adhesion testingGB/T 34445-2017 Requirements for Test Speed

The hot adhesion test adopts fully automatic injection, simplifies the operation, reduces errors, and ensures data consistency

Automatic reset, fault prompt, overload protection, travel protection and other designs ensure safe operation

Manual and pedal start modes for testing, flexible selection as needed

Anti scald safety design enhances operational safety

All system accessories are made of imported branded components, with stable and reliable performance

Reference standard:

GB/T 34445、ASTM F1921、ASTM F2029、QB/T 2358、YBB 00122003

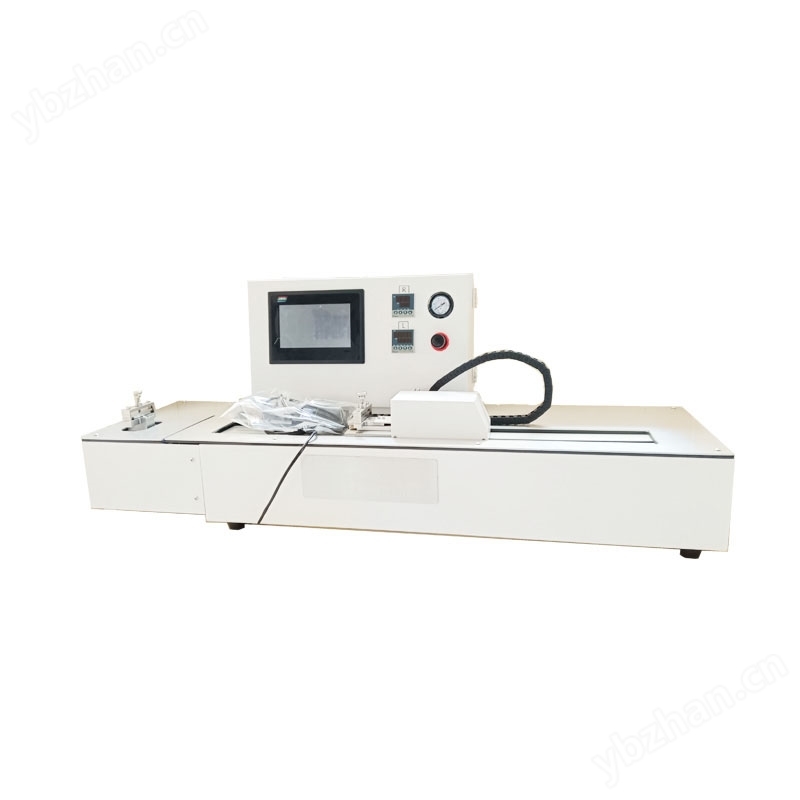

Plastic film thermal adhesion tester

Test application:

Basic Application	Thermal adhesion performance	Suitable for testing the thermal adhesion properties of plastic films, thin sheets, and composite films, such as instant noodle bags, milk powder bags, laundry detergent bags, and other food and drug packaging bags that use PE, PP, PET, and their composite films
	Heat sealing performance	Suitable for testing the heat sealing performance of plastic films, thin sheets, and composite films
	peel strength	Suitable for peel strength testing of composite films, adhesive tapes, stickers, adhesive composite products, composite paper and other materials
	tensile strength	Suitable for tensile strength testing of various thin films, sheets, composite films and other materials
Extended Application	Medical patch	Suitable for peeling and tensile strength testing of medical stickers
	Testing of textiles, non-woven fabrics, and woven bags	Suitable for peeling and tensile strength testing of textiles, non-woven fabrics, and woven bags
	Low speed unwinding force of adhesive tape	Suitable for low-speed unwinding force testing of adhesive tape
	protective film	Suitable for peeling and tensile strength testing of protective films
	magnetic card	Suitable for testing the peel strength of magnetic card films and magnetic cards
	Bottle cap removal power	Suitable for testing the removal force of aluminum-plastic composite covers

Technical Specifications:

project	parameter
Sensor specifications	30 N (standard) 50 N, 100 N, 200 N (optional)
Force accuracy	Indication ± 1% (10% -100% of sensor specifications) ± 0.1% FS (0% -10% of sensor specifications)
Force resolution	0.01 N
Test speed	150 200 300 500 Hot stack 1500mm/min, 2000mm/min optional
sample width	15 mm (standard), 25 mm, 25.4 mm optional
itinerary	500 mm
Heat sealing temperature	Room temperature~250 ℃
temperature fluctuation	±0.2℃
Temperature accuracy	± 0.5 ℃ (single point calibration)
Heat sealing time	0.1~999.9 s
Hot adhesion time	0.1~999.9 s
Heat sealing pressure	0.05 MPa～0.7 MPa
Hot Cover	100 mm x 5 mm
Hot head heating	Double heating (single-sided silicone)
gas source	Air (provided by the user)
air supply pressure	0.7 MPa（101.5psi）
air source interface	4 mm polyurethane pipe
Overall dimensions	1120 mm (L) × 380 mm (W) × 330 mm (H)
power supply	220VAC±10% 50Hz / 120VAC±10% 60Hz
Net weight	45 kg

Product Configuration:

Standard configuration: host, manual fixture, foot switch, sample takingSteel rulerCalibration bracket4 mm polyurethane pipe (2m)
Purchase: Air compressor
Note: Local air source interface system4 mm polyurethane pipe; Gas source users should bring their own
