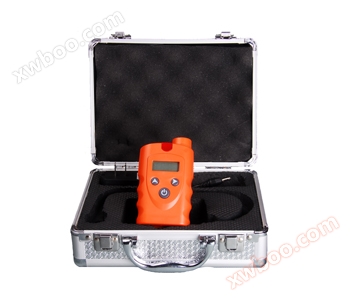

Portable diesel gas detector

Portable diesel detector|diesel oilProduct Introduction of Gas Detector:
Portable diesel gas detector is a safety instrument used to detect the concentration value of diesel on site. If there is a location where diesel concentration detection is needed based on the on-site situation, the staff can turn on the device to perform real-time diesel gas concentration detection and display the on-site concentration value in real time. Once the concentration value exceeds the set alarm point, the detector will emit three levels of alarm reminders: sound, light, and vibration.

Portable diesel detector|diesel oilGas detectorProduct features:
Digital module design:Adopting high-speed CPU processing, automatic fault recognition, automatic alarm, and high concentration over limit automatic protection;
High accuracy of automatic measurement:The sensor adopts imported gas sensitive components, which have the characteristics of high accuracy, high reliability, good gas selectivity, and strong anti-interference ability;
Low power consumption:Under normal monitoring conditions, the working time is greater than 8 hours;
LCD display:Adopting LCD display, it can intuitively display the gas concentration on site;
Intrinsic safety explosion-proof design:The explosion-proof level is Exd ib IICT3 Gb and the protection level is IP65.
Optional extension tube design for seamless detection:

Portable diesel detector|diesel oilgas detectorTechnical parameters:
Detection principle: catalytic combustion type
◆ Gas detection:diesel oil
◆ Detection range:0-100%LEL
Sampling method: natural diffusion method
Measurement accuracy: ± 5% F · S
Response time: ≤ 60 seconds
◆ Battery: High performance rechargeable lithium battery
◆ Standby working time:>8 hours (at room temperature) for flammable and explosive gases
Working temperature: -20 ℃~50 ℃
◆ Working humidity: 10% RH~95% RH
◆ Alarm system: three-level alarm of sound, light, and vibration
Explosion proof grade: intrinsic safety type
Alarm volume: ≥ 75dB
◆ Dimensions: 100 * 63 * 30mm
