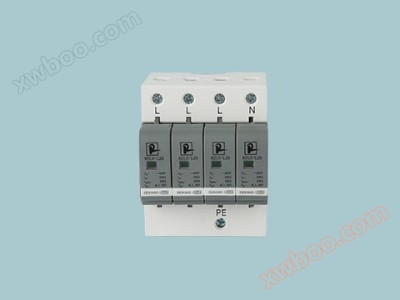

RELO-L20 Lightning Protection Device from the United States [Beam Lightning Protection]

NegotiableUpdate on 04/06

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Main application: Voltage limiting modular power surge protector, mainly used for the second level lightning protection of power supply systems below 400V, and can be used to protect electrical equipment such as distribution boxes and small three boxes. Product features: Modular design, easy replacement, power free, pluggable and replaceable lightning protection module. Advantages: Exclusive agency, exclusive distribution

Product Details

Exclusive agency, exclusive distribution.

Imax:40ka

The lightning protection module is suitable for different power grid standards.

Modular design, easy to replace, power free, pluggable and replaceable lightning protection module.

Built in automatic circuit breaker for overheating and instantaneous overcurrent.

Failure automatic monitoring indication and standard module installation. Anti misconnection method.

5-year quality assurance and lifetime free technical support.

Product Features

Installation method
1. A multi stranded copper wire with a power connection wire of not less than 10mm2, and a multi stranded copper wire with a grounding connection wire of not less than 16mm2. The connecting wire should be as short, straight, and thick as possible.
2. The front end of the lightning arrester should be connected in series with suitable backup protectors, fuses, or air switches.
Installation precautions
1. During installation, the power must be disconnected and live operation is strictly prohibited. The connecting wires must meet the requirements.
2. After installation, insert the lightning protection module into place and check if it works properly.
3. When the module fault display window of the lightning arrester indicates red (the remote signaling terminal outputs an alarm signal), it indicates that the lightning arrester has malfunctioned and should be replaced in a timely manner.
4. The lightning arrester does not require special maintenance, it only needs to be regularly checked for loose connections and normal status indicators.
