Sixuan Laser Diameter Measuring Instrument Rubber Pipe Diameter Measuring Instrument Laser Pipe Diameter Deviation Instrument Metal Pipe Diameter Deviation Instrument Sixuan Spot All kinds of transparent and semi transparent objects such as glass pipes, glass rods, etc. Local Area Network (LAN) cables, coaxial cables, optical fibers, flat cables, frequency cameras, communication cables, power cables, pipes, and wires Product Description Non contact optical measurement operation panel Multi angle display Laser or LED long-life light source adopts advanced DSP processing technology Excellent dust and pollution resistance design Protection level IP65

Product Details

Si Xuan laser caliper

Rubber pipe diameter gauge, laser diameter deviation gauge, metal diameter deviation gauge, Sixuan in stock

Various transparent and semi transparent objects such as glass tubes and glass rods
LAN cable
coaxial cable
Fiber optic cables and flat cables
Frequency camera cable, communication cable
Power cables, pipes, and wires

Product description

Non contact optical measurement
Multi angle display on the operation panel
Laser or LED long-life light source
Adopting advanced DSP processing technology
Excellent dust and pollution prevention design
Protection level IP65,NEMA4
S232/485communication interface
Fully automatic closed-loop control technology, automatic feedback control of wire diameter
Measurement is not affected by speed and vibration, and automatic alarm is triggered when the wire diameter exceeds the tolerance
Scanning speed of 600 times/second (up to 1400 times/second)

Main technical parameters

	SX-25	SX-40	SX-70/90/100/140
measurement range	0.1-25mm	1-40mm	1-70/120/140mm
Measurement accuracy:	0.002mm	0.003mm	0.004mm
Resolution:	0.001mm	0.001mm	0.001mm
Length × Width × Height	29066170mm	40068175mm	50486230mm
Weight:	5KG	8KG	10KG

Remote Display Product Description

Installation opening size: 91.5 * 43, features: not only has remote display function, but also has numbers; Interface: RS485/232; Diameter output: 0-10V; PID control output plusmn; 0.12.1V; Out of tolerance alarm output voltage (12V), with a distance of up to 300 meters.

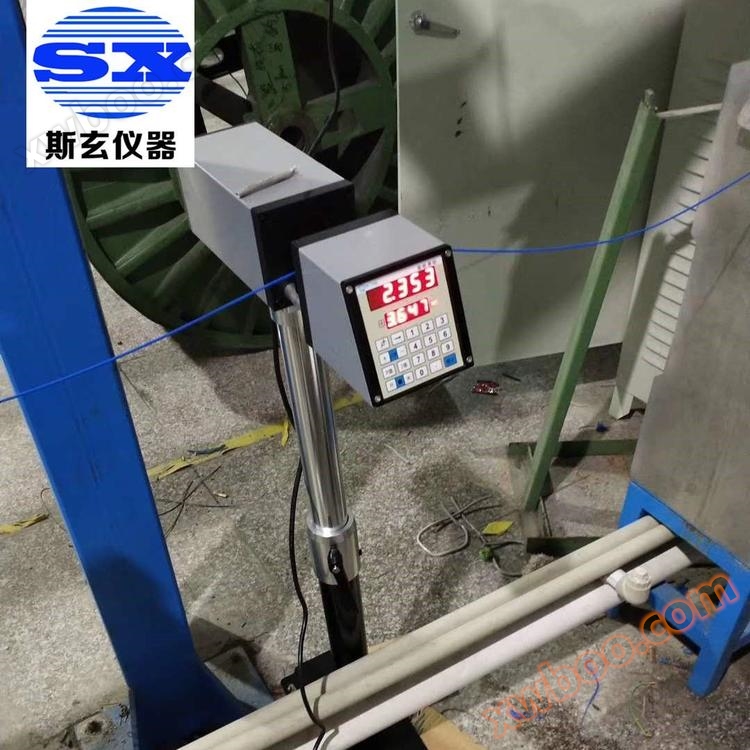

Installation location

The outer diameter measuring and controlling instrument can be installed before or after the cooling water tank. When installed in front of the sink, due to the proximity of the measuring head to the extruder, timely feedback control can achieve good control effect. However, the plastic has not yet solidified, and the set nominal value should be appropriately corrected. When installed behind the sink, the actual value of the cable outer diameter measured is relatively accurate and reliable, but the control lag is large and the control effect is slightly poor. Additionally, it should be noted that the tested cable should be dried, otherwise the water film on the outside of the cable will affect the measurement accuracy. In actual use, the nominal value should be appropriately increased according to the degree of water carried by the tested object.
