SMZ-171 Stereoscopic Microscope

Introduction to microscope:

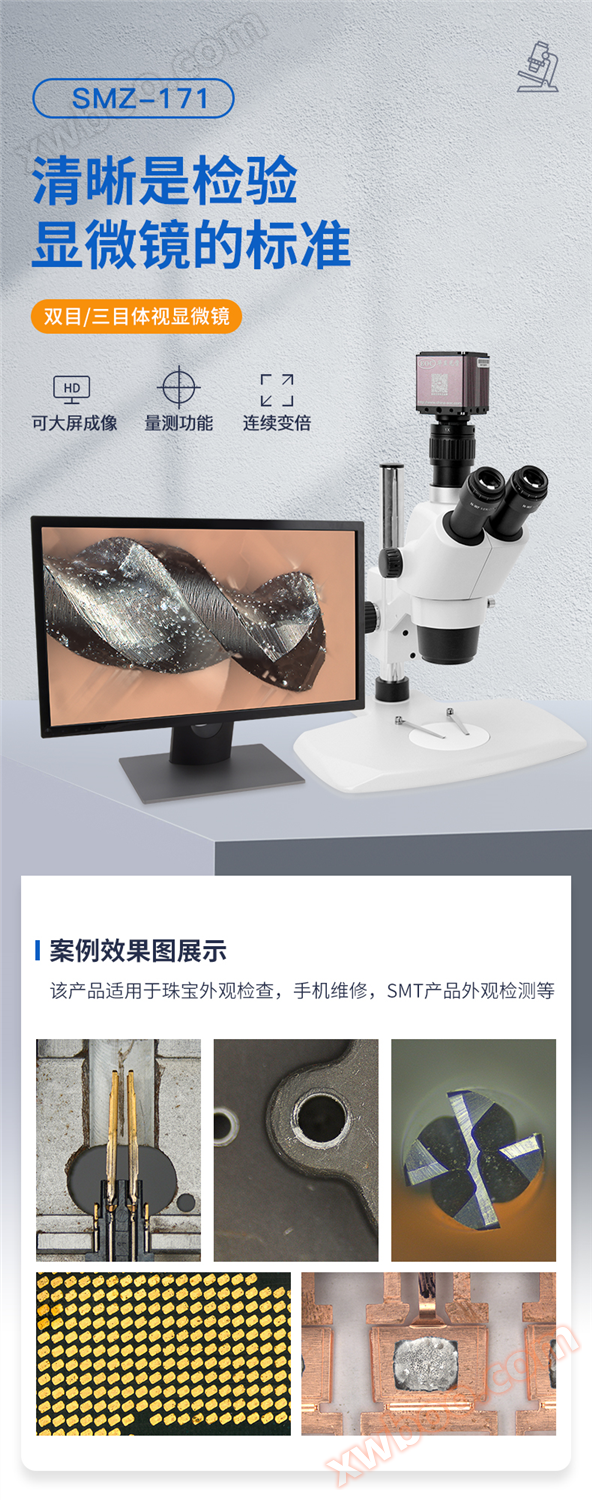

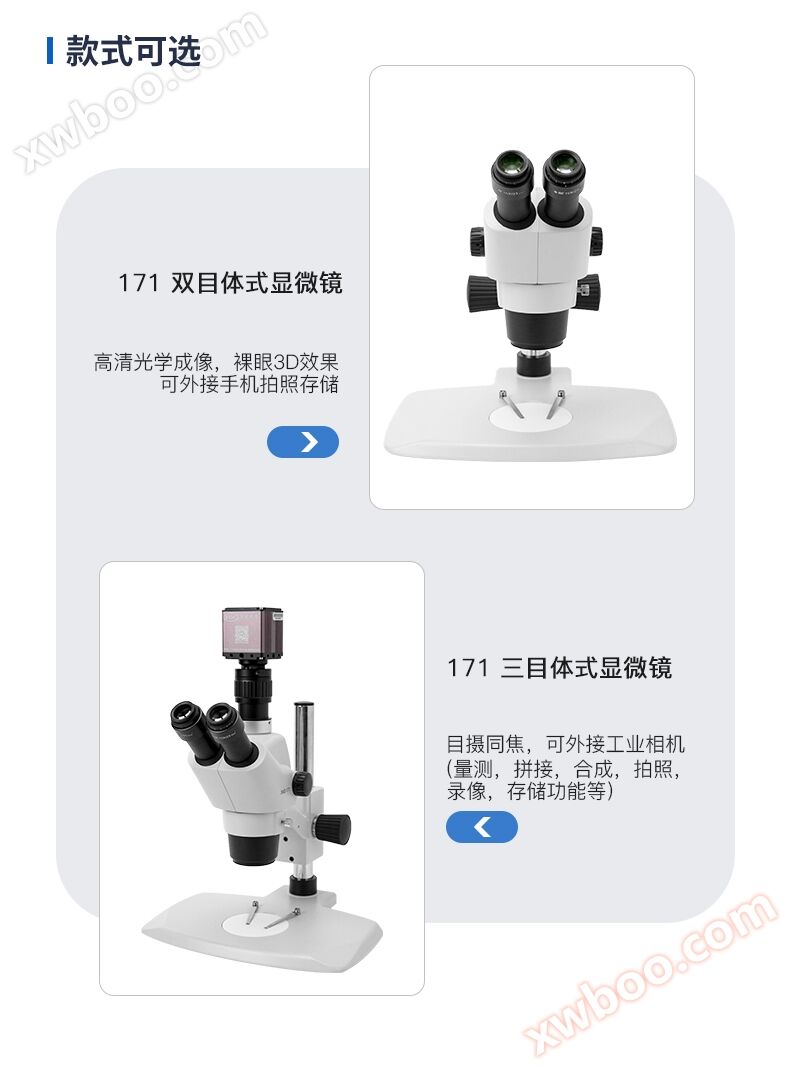

SMZ-171 Stereoscopic Trinocular Microscope

ZOOM 1:6.7 Dedicates Excellent Performance Price Ratio
Magnifying the image has a strong sense of three dimensionality, high resolution, and a flat image surface
Specially designed for industrial applications, with ultra long working distance, large depth of field, and anti-static (ESD) protection
Having complete attachment functions is your ideal tool.

Microscope features:

Eye mask: a pair of eye masks for easy observation

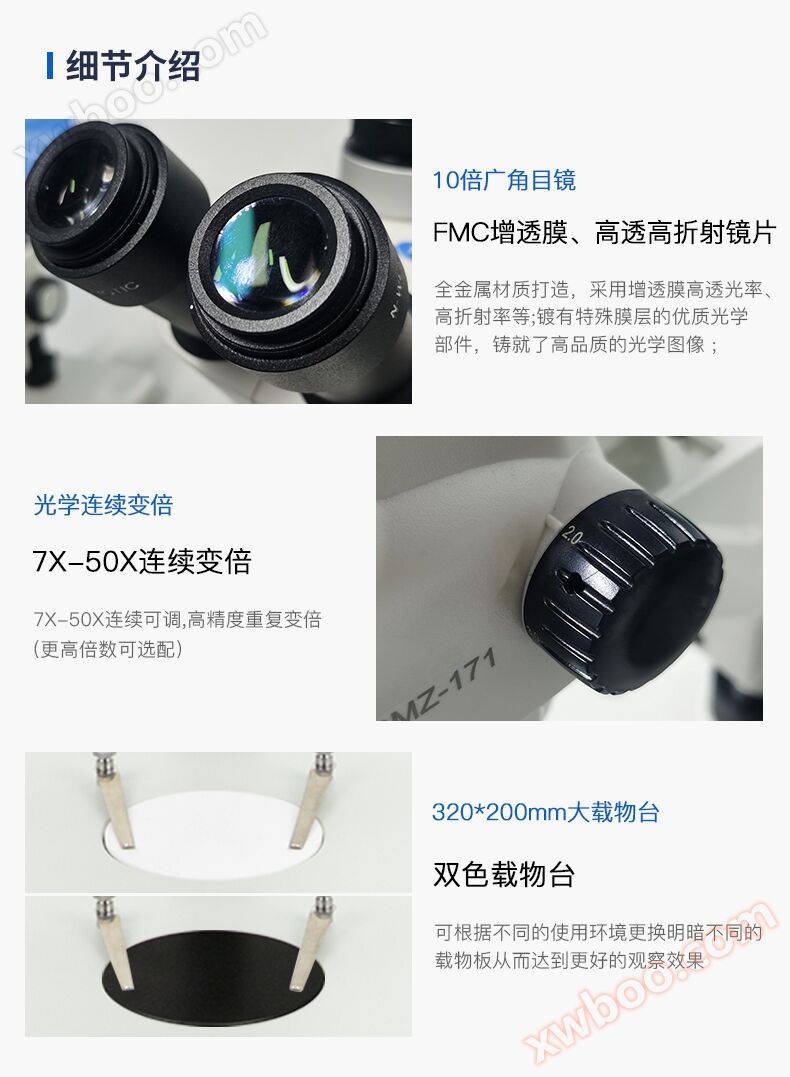

Wide angle ESD eyepiece: high eye point ultra wide angle
Adjustable visual acuity, adjustment range: ± 5 diopters WF10X/23
Anti static: (ESD)
Eyepiece:
10X/23 (with bonus scoreboard) ESD
12.5X/18 (with bonus scratch board) ESD (optional)
15X/16 (with optional marking board) ESD (optional)
20X/13 (with bonus scratch board) ESD (optional)
Partition board: (optional)
Mirror body:
The magnification is continuously variable,High definition, high depth of field stereoscopic images,The zoom handwheel is horizontally set on both sides, providing flexible and comfortable zooming
Variable magnification and gear shifting are lightweight and convenient, with high repeatability accuracy
Tilt the eyes 45 degrees,Pupil distance adjustment range: 48mm~75mm

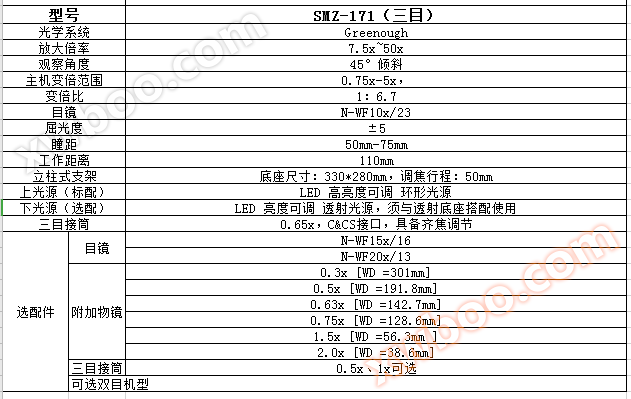

Magnification range: 0.75X~5X
Magnification ratio: 1:6.7
Working distance: 110mm
Additional objective lens: anti mold design(Optional)
0.63X [WD = 142.7 mm]/0.75X [WD = 128.6 mm]/1.5X [WD = 56.3 mm ]/2.0X [WD = 38.6 mm]
Focusing mechanism:The V-shaped guide rail and steel ball combination form a focusing mechanism to ensure adjustmentJiao is flexible, comfortable, stable and reliable
Upper light source:3W LED light, adjustable brightness and angle
Column type base focusing total stroke: 50mm
Vertical arm base focusing total stroke: 140mm
Mirror installation size: Ø 76mm,Automatic alignment of objective lens center with worktable center
Satisfy SMZ-171 with 0.3X, 0.5X, 0.63X, 0.75XThe need for 1.5X and 2X ESD additional objective lenses
Mirror installation size: Ø 76mm,The mirror frame is equipped with a 3W LED falling light source with adjustable angle and brightness
Column installation size: Ø 32mm,The base is equipped with a 3W LED transmission light source with adjustable brightness
Can be used alone or simultaneously with both incident and transmitted light sources
There are two types of bases to choose from: standard base and anti-static (ESD) base
The mirror frame is equipped with a 3W LED falling light source with adjustable angle and brightness
Can be used alone or simultaneously with both incident and transmitted light sources
When selecting an ESD flat base, a cold light source lighting fixture and fiber optic cable can be optionally used
