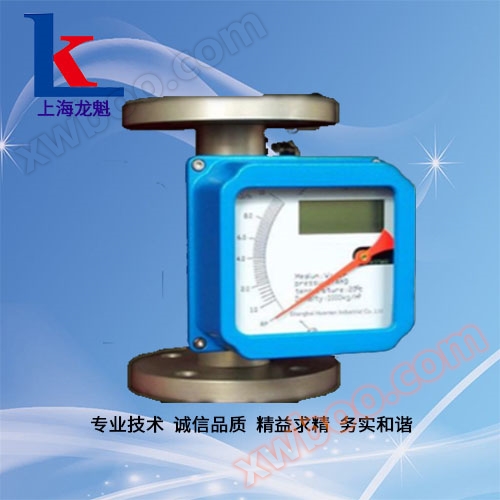

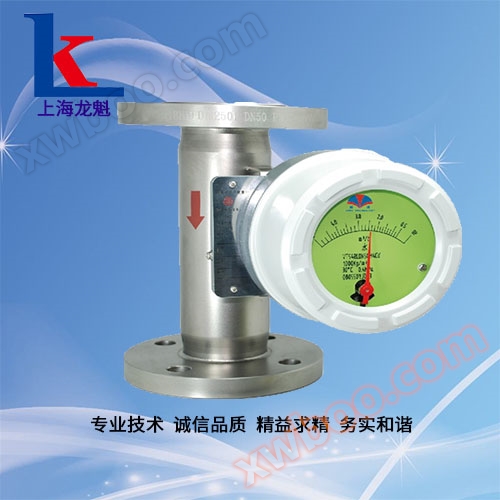

1、 Schematic diagram of Shanghai LKJ type ethanol metal tube float flowmeter

2、 Characteristics of Shanghai LKJ Ethanol Metal Tube Float Flow Meter:

1. Sturdy all metal structure design float flowmeter

2. Measurement tube indicator designed with independent concept

3. Stainless steel, Hastelloy, titanium, PTFE material measurement systems can be selected

4. Low pressure loss design

5. Suitable for flow measurement of small caliber and low velocity media.

6. Reliable work, minimal maintenance, and long lifespan.

7. The requirements for straight pipe sections are not high.

8. A wider traffic ratio of 10:1.

9. Dual row large LCD display, optional on-site instantaneous/cumulative flow display, with backlight.

10. Single axis sensitive display.

11. Non contact magnetic coupling transmission.

12. All metal structure, suitable for high temperature, high pressure, and highly corrosive media.

13. Can be used in flammable and explosive hazardous environments.

14. Optional options include two-wire system, battery, and AC power supply.

15. Equipped with data recovery, data backup, and power down protection functions.

3、 Measurement of Shanghai LKJ Ethanol Metal Tube Float Flow Meter:

1. Sturdy all metal structure design float flowmeter

2. Measurement tube indicator designed with independent concept

3. Stainless steel, Hastelloy, titanium, PTFE material measurement systems can be selected

4. Low pressure loss design

5. Short stroke, small structural design, total instrument height of 250

6. Magnetic coupling structure ensures data transmission and signal stability

7. Insulation or heat tracing jacket

8. Vertical, horizontal, and various installation methods are more suitable for different usage scenarios

9. Suitable for flow measurement of small caliber and low flow rate media, reliable operation, low maintenance, long service life

11. Not high requirements for straight pipe sections

12. Wide traffic ratio 10:1

13. Dual row large LCD display, optional on-site instantaneous/cumulative flow display, can be equipped with backlight

14. Single axis sensitive indication

15. Non contact magnetic coupling transmission

16. All metal structure, suitable for high temperature, high pressure, and highly corrosive media

17. Can be used in flammable and explosive hazardous environments

18. Choose a two-wire system, battery, and AC power supply method

19. Multi parameter calibration function

20. Equipped with data recovery, data backup, and power down protection functions

4、 Structure of Shanghai LKJ Ethanol Metal Tube Float Flow Meter:

1. High temperature structure (G-type)

High temperature structure type (G-type) is used for flow measurement of media with high or low temperatures that require insulation measures for the measuring tube. The high-temperature structure increases the distance between the measuring tube and the indicator to enhance heat dissipation and increase the thickness of the insulation material, ensuring that the indicator operates within the allowable ambient temperature range. Select the 'G' type.

The G-type anti-corrosion jacket insulation cooling water pure water formaldehyde metal tube float flowmeter can measure the flow rate of media with temperatures ranging from -80 ℃ to+300 ℃.

2. Structure with damper device (Z-type)

The damper structure type is used for measuring medium flow when the inlet flow rate (pressure) of the flowmeter is unstable, especially for gas measurement. Its structure is shown in the figure

3. Clamp type structure (T-shaped)

The jacket type structure is used for flow measurement of media that require heat tracing or cooling (such as high viscosity and easy crystallization). By heating or cooling the medium in the jacket, low boiling and low freezing point fluids are prevented from vaporizing and crystallizing.

The import and export connection of the heat tracing medium should use HG20594-97 DN15 PN1.6 flange for the standard type, and other flange specifications can be indicated by the manufacturer. The pressure rating of the jacket is 1.6MPa

The structure of the jacketed flowmeter is shown in the FA standard flowmeter flange and external dimension diagram.

4. High voltage structure (Y-shaped)

High pressure type structure is used for flow measurement when the measured medium pressure is greater than the standard pressure level. The high-voltage structure is shown in the following figure. At present, the maximum pressure of the FFM64 series can reach 32MPa. In addition, high-pressure flow meters can be provided with built-in magnetic filter types, with an installation height of 350mm. The maximum pressure of FA, FB, and FC types is 10MPa.

• Customized processing: Yes

• Type: Variable Area Formula

• Measurement range:

• Accuracy level: 1.0%

• Nominal diameter: DN15-DN300

• Applicable media: liquid, gas

• Work pressure: 1.6-64MPa

• Working temperature: -10-120
