Shanghai Sixuan manufacturer's spot S8160X melt index meter plastic particle flow rate measuring instrument

Shanghai Sixuan manufacturer's spot S8160X melt index meter plastic particle flow rate measuring instrument

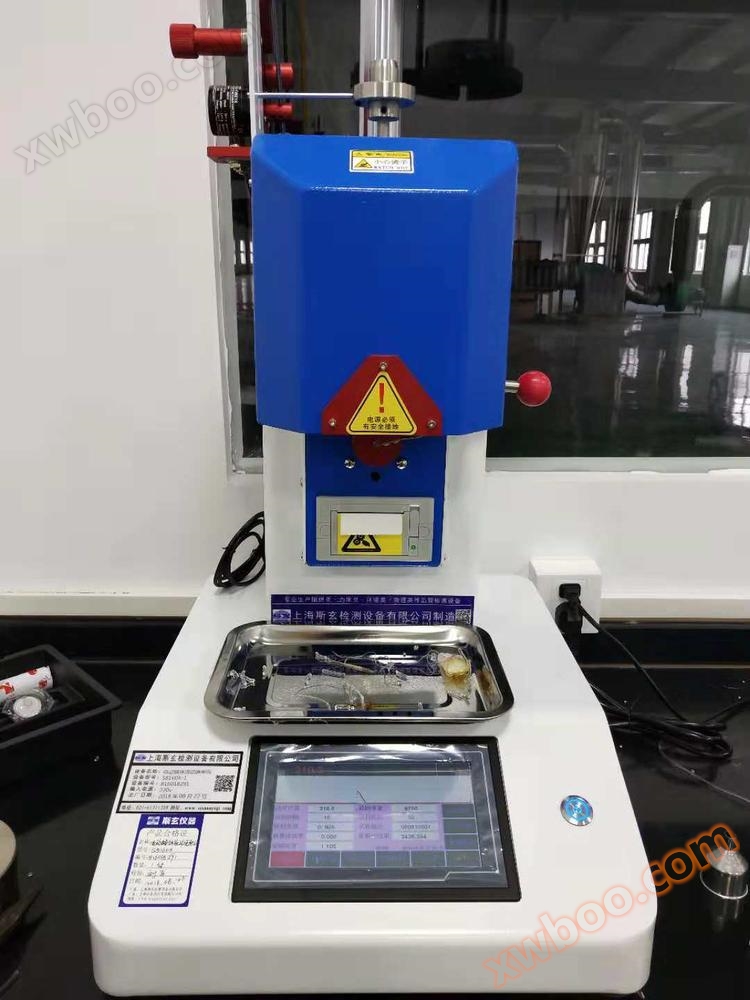

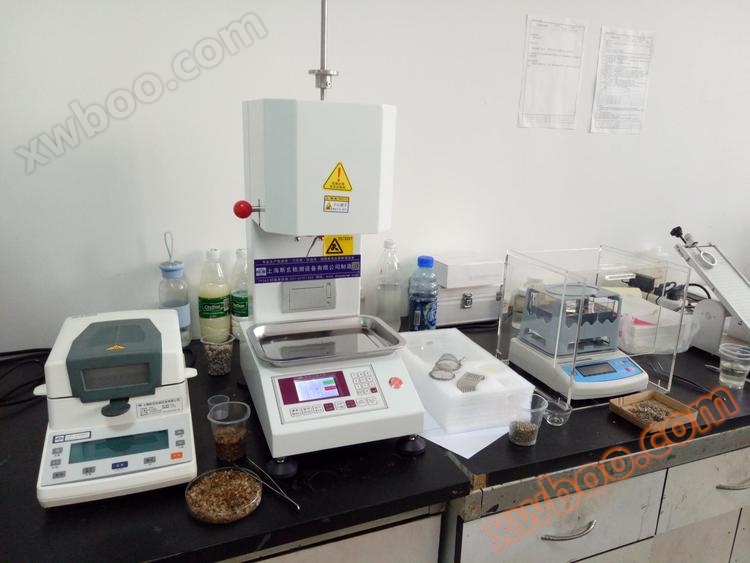

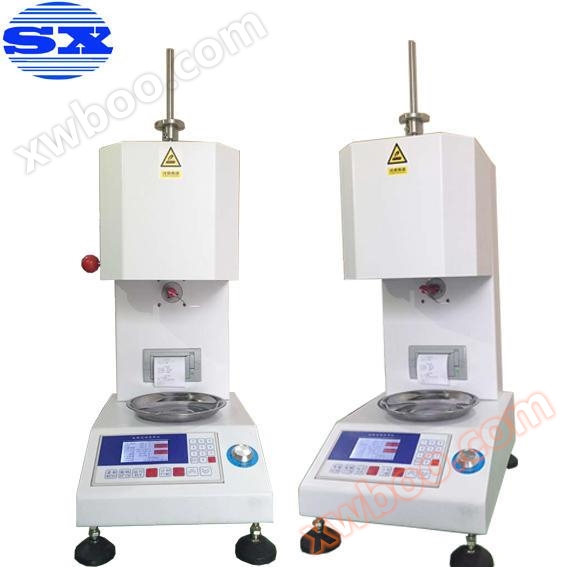

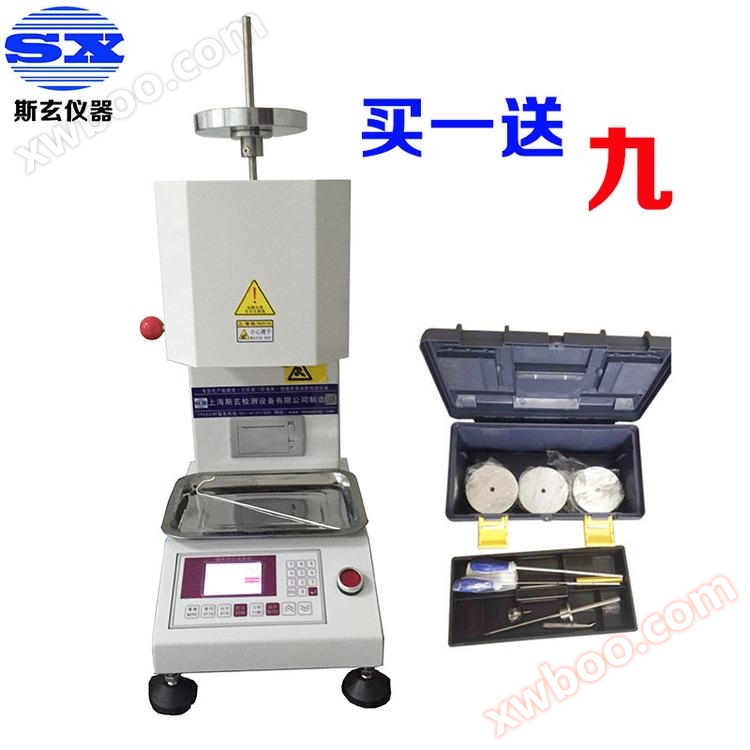

S8160XMelt flow rate meter (mass method)

1、 Product Introduction:

It is used to determine the MFR value of various plastics and resins in a viscous flow state through a certain temperature and load, and every 10 minutes through a standard die melt flow rate. It is suitable for engineering plastics such as polycarbonate, polyarylsulfone, fluoroplastics, nylon, etc. with high melting temperatures, as well as for testing plastics with lower melting temperatures such as polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, polyoxymethylene (POM), polycarbonate (PC) resin, etc. It is widely used in plastic production, plastic products, petrochemicals and other industries, as well as related universities, research units and inspection departments.

1、 Execution standards:

GB/T3682-2000 "Determination of Melt Flow Rate and Melt Volume Flow Rate of Thermoplastic Plastics"

ISO 1133:1997 "Determination of Mass Flow Rate (MFR) and Volume Flow Rate (MVR) of Thermoplastic Melts"

ASTM D1238 "Standard Test Method for Determining the Melt Flow Rate of Thermoplastic Materials by Extrusion Plastimeter"

2、 Testing methodQuality Law

3、 Display mode：Color LCD display in both Chinese and English

4、 Product Features：

Color LCD display in both Chinese and English

Ø Hand automatic cutting integrated

Ø Dual temperature control system, with more precise temperature control accuracy and higher heating efficiency

Ø Dual imported sensors, more accurate temperature gradient up and down, can be used independently, improving service life

Ø The material barrel is made of imported Hastelloy nitriding treatment, and the mouth mold is made of carbon tungsten steel material. The materials used are practical

Ø The insulation bucket is made of all sus304 stainless steel material, which does not rust at high temperatures for a long time

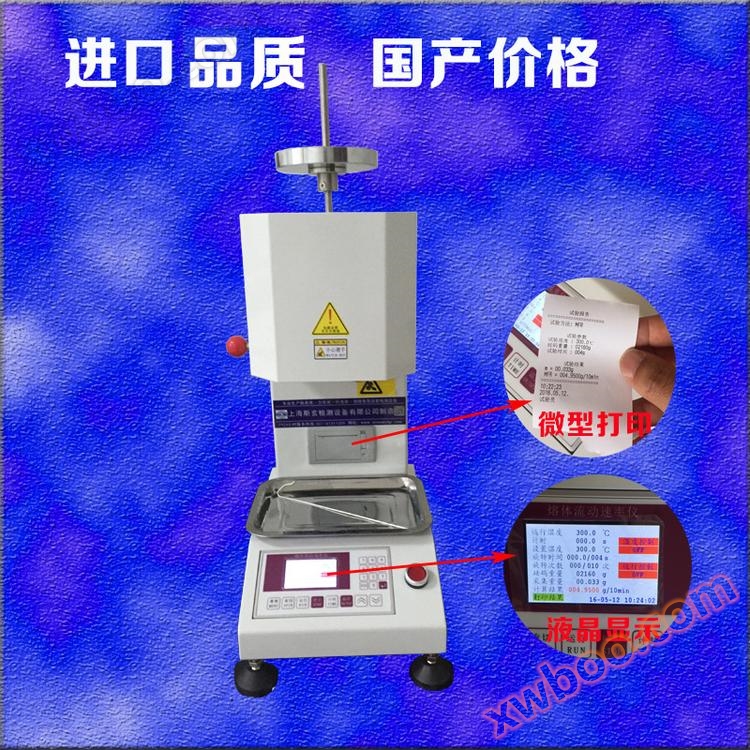

Ø Automatically calculate results and print them out

5、 Main technical parameters:

Ø Temperature range: 0 ℃ -450 ℃

Temperature fluctuation: ± 0.2 ℃

Temperature uniformity: ± 1 ℃

Ø Temperature display resolution: 0.1 ℃

Ø Time display resolution: 0.1S

Ø Material cylinder diameter: Φ 2.095 ± 0.005mm

Ø Discharge port length: 8.000 ± 0.025mm

Ø Loading cylinder diameter: Φ 9.550 ± 0.025mm

Ø Weight accuracy: ± 0.5%

Output method: Micro automatic printing output

Ø Cutting method: Hand automatic cutting integrated

Ø Test load: 8 levels in total, 8 sets of weights

Ø Power supply voltage: AC220V ± 10% 50HZ

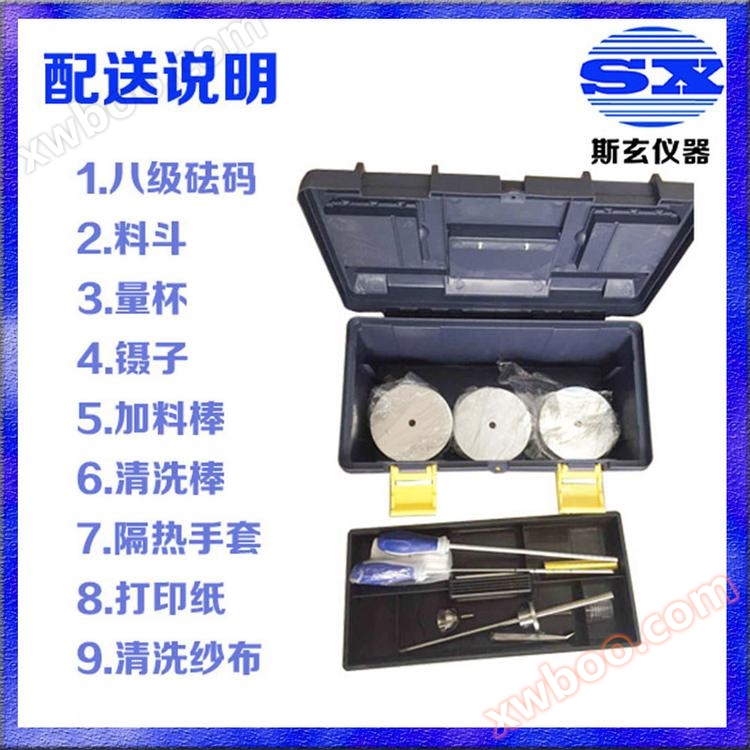

Introduction to Level 8 Weights

Standard test load (8 levels in total)

Level 1: 0.325kg=(piston rod+weight tray+insulation sleeve+No.1 weight body)=3.187N

Level 2: 1.200kg=(0.325+No.2 0.875 weight)=11.77N

Level 3: 2.160kg=(0.325+No. 3 1.835 weight)=21.18N

Level 4: 3.800kg=(0.325+No. 4 3.475 weight)=37.26N

Level 5: 5.000kg=(0.325+No. 5 4.675 weight)=49.03N

Level 6: 10.000kg=(0.325+No. 5 4.675 weight+No. 6 5.000 weight)=98.07N

Level 7: 12.500kg=(0.325+No.5 4.675 weight+No.6 5.000 weight+No.7 2.500 weight)=122.58N

Level 8: 21.600kg=(0.325+No.2 0.875 weight+No.3 1.835 weight 0.325+No.4 3.475 weight+No.5 4.675 weight+No.6 5.000 weight+No.7 2.500 weight+No.8 2.915 weight)=211.82N
