Shenzhen Fuyida Instrument Co., Ltd
THA series high and low temperature wet heat test chamber
NegotiableUpdate on 02/17
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Introduction to the Characteristics of FUYIDA THA Series Constant Temperature and Humidity Test Chamber High and Low Temperature Alternating Damp Heat Test Chamber, also known as Constant Temperature and Humidity Test Chamber, Programmable Constant Temperature and Humidity Test Chamber, Constant Temperature and Humidity Chamber, etc
Product Details
Introduction to the characteristics of FUYIDA brand THA series constant temperature and humidity test chamber
The high and low temperature alternating humidity test chamber, also known as the constant temperature and humidity test chamber, programmable constant temperature and humidity test chamber, constant temperature and humidity test chamber, etc. Here, the commonly used small vertical series constant temperature and humidity test chamber products are standardized. Fuyida Instrument provides three standard specifications and models of vertical structure constant temperature and humidity test chambers. After optimizing their configuration and various functions, they are specially made into selection materials for new and old customers to choose from!
This model has been mass-produced with another model: THA4-240L (D500-W800-H600), which has complete performance and configuration. It is separately introduced under the "High and Low Temperature Alternating Damp Heat Test Chamber" product series. The high and low temperature alternating humidity test chambers introduced here are all configured at -40 ℃. For this vertical series of high and low temperature alternating humidity test chambers at -60 ℃ and -70 ℃, Fuyida's manufacturing process and configuration are also mature.
|
Product Name |
High and low temperature alternating humidity test chamber Programmable constant temperature and humidity chamber |
Product Specifications |
THA4-80L、THA4-100L 、THA4-120L |
|
manufacturer |
Shenzhen Fuyida Instrument Co., Ltd |
||
|
Scope of Application |
Suitable for environmental testing of electrical and electronic products, components, and other materials in high and low temperature environments, temperature and humidity environments, and high temperature and high humidity environments. It is also used for adaptability testing of electronic and electrical products during storage, transportation, and actual use |
||
|
Features of the equipment |
The programmable constant temperature and humidity chamber adopts a stainless steel inner liner and stainless steel outer shell (optional A3 board surface spraying), with an elegant and beautiful shape; ◆ Independent of the main temperature control system, the over temperature protection system operates more safely and reliably; ◆ Adopting touch screen and control, combined with temperature module PID automatic temperature and humidity control; ◆ Adopting a flat embedded door handle without reactive force, it is easier to operate, safe and reliable; Equipped with over temperature, over pressure, and phase loss alarm protection systems; ◆ The left side is equipped with one set of ￠ 50mm cable holes and one silicone plug; ◆ Configure two layers of sample racks (made of stainless steel square tubes). |
||
|
technical standard |
The device is manufactured based on one or a combination of the following standards: GB 10589-89 Technical Conditions for Low Temperature Test Chamber GB 10592-89 Technical Conditions for High and Low Temperature Test Chambers GB 11158-89 Technical Conditions for High Temperature Test Chamber GB/T5170.2-1996 Basic parameter calibration methods for environmental testing equipment for electrical and electronic products - Temperature testing equipment GB2423.1-89 Basic Test Procedures for Electrical and Electronic Products - Test A: Low Temperature Test Method GB2423.2-89 Basic Test Procedures for Electrical and Electronic Products - Test B: High Temperature Test Method GB2424.1-89 Basic Environmental Testing Procedures for Electrical and Electronic Products - Guidelines for High Temperature and Low Temperature Testing |
||

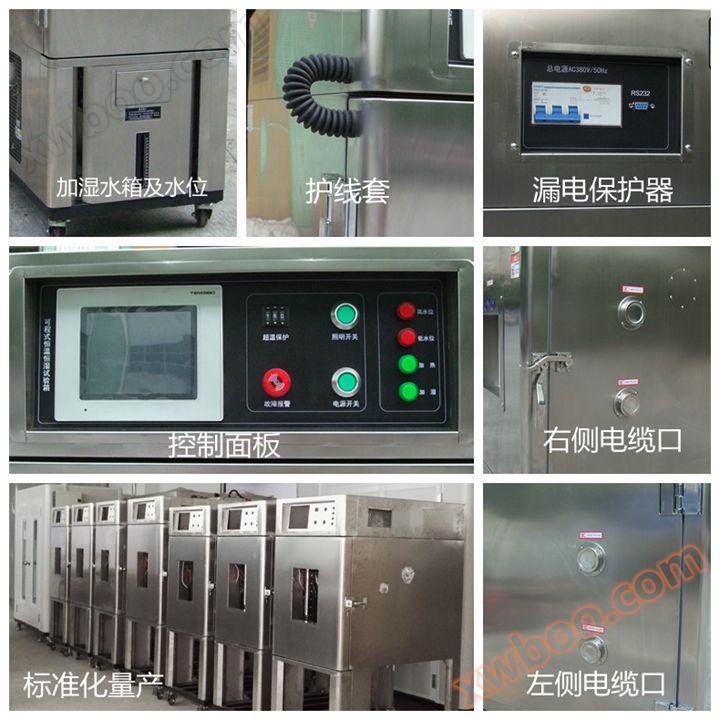

FUYIDA brand THA series constant temperature and humidity test chamber equipment component displaySpecifications
FUYIDA brand THA series constant temperature and humidity test chamber selection information
Compiled and published in 2018
Shenzhen Fuyida Instrument Co., Ltd. 2015 Product Standardization fuyidatest.com
