Three dimensional seven axis laser machining center

NegotiableUpdate on 02/21

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The 3D five axis laser cutting system is a series of high-performance products developed by our company based on market demand for the subsequent processing of automotive interior and exterior parts, new energy battery boxes, cruise ship and submarine interior parts, bathroom and other industries. This series of products adopts an integral gantry structure, which is designed to achieve the processing of ultra large workpieces. In addition, an automatic feeding platform can achieve simultaneous processing and feeding. The system is equipped with a high-power carbon dioxide laser that introduces laser energy into the precision cutting head through a lens system. The control system precisely controls the motion trajectory of the XYZAC axis to achieve three-dimensional cutting. It is a high-end machine tool equipment that integrates light, machinery, electricity, and gas.

Product Details

1、 Performance characteristics:

The product adopts a gantry mobile structure, which is flexible and efficient;
2- This structural design can achieve the processing of ultra large workpieces;
3- Fully enclosed external light guiding system;
4- Dual station mobile exchange workbench, which can achieve simultaneous processing and feeding;
5- Fully automatic dust and smoke removal system.

2、 Application scope:

Suitable for industries such as automotive interior and exterior parts, automotive metal structural components, home appliance liners, new energy battery boxes, cruise ship and submarine interior parts, high-speed rail interior parts, bus interior parts, and bathroom parts.
Processing materials: ABS composite materials, carbon fiber materials, fiberglass materials, glass fiber materials, wood materials, leather materials, acrylic materials, ceramics and other materials.

3、 Technical indicators:

model	NL0102-SD3018
Laser type	Carbon dioxide (wavelength 10.6um)
laser power	1000W/2000W/4000W/6000W (power size can be selected according to the cutting material)
Laser brand	FANUC/NOBOT
structure type	Fixed beam gantry style
workbenches	c
Workbench load capacity	800KG
Laser cutting head	two
machine range	3000×1800×600
positioning accuracy	±0.05mm
Cutting speed	Maximum 20m/min (depending on material and thickness)
repeatability	±0.03mm
Servo and driver	FANUC/Yaskawa
control system	FANUC/NOBOT
Programming method	Offline programming+demonstration programming
cover an area	13000x7500x4500mm

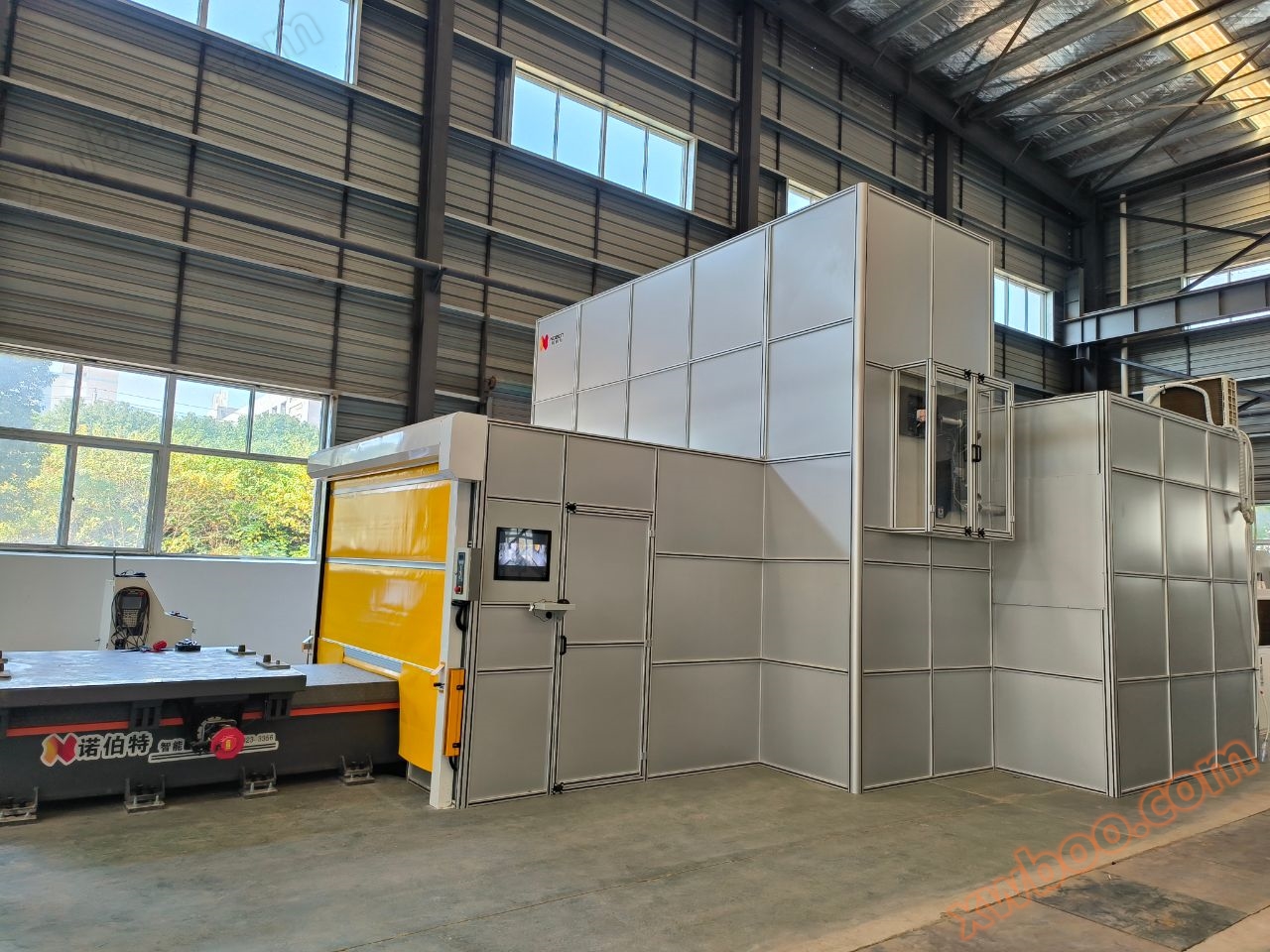

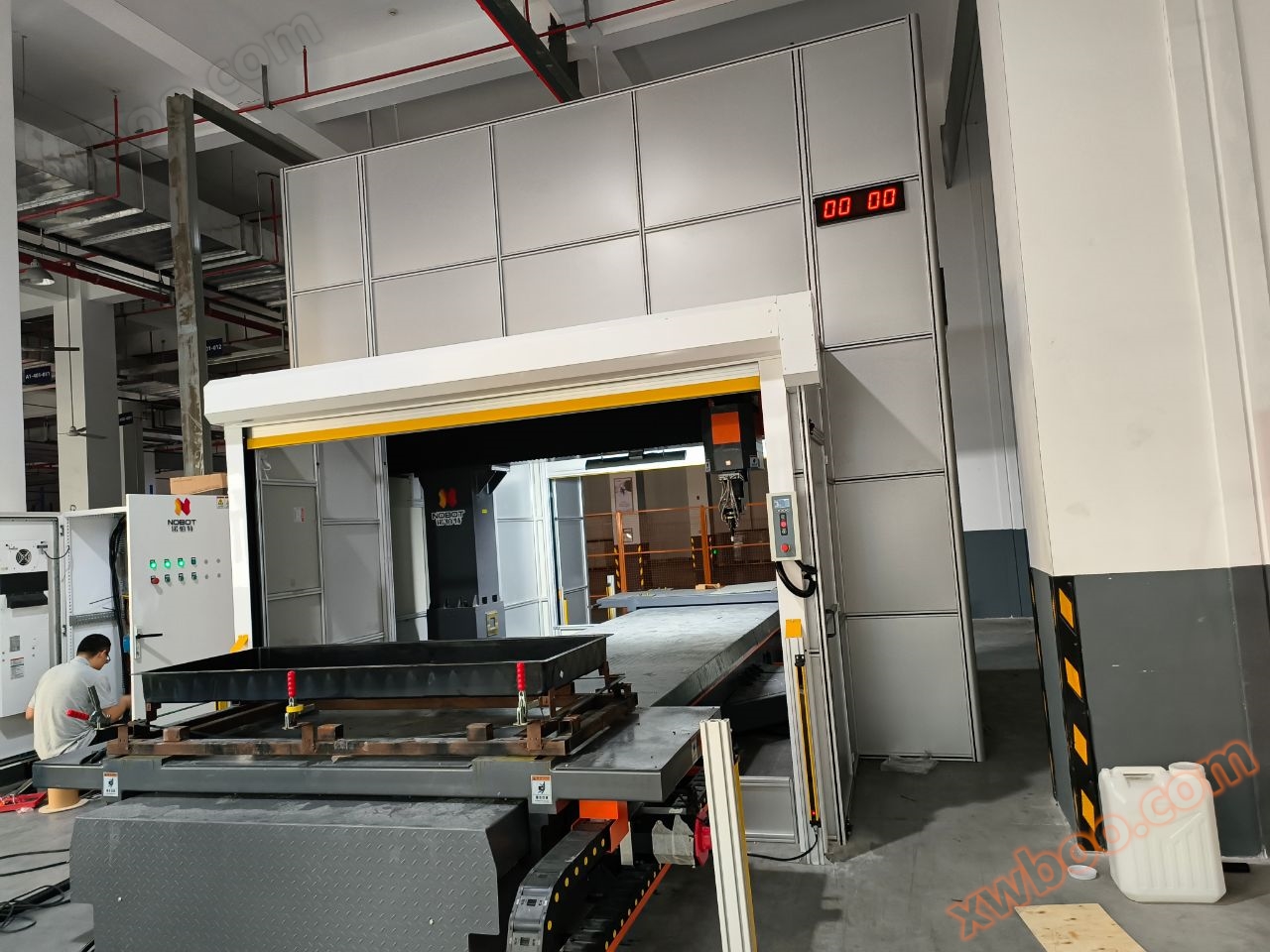

4、 Case photo:
