Beijing Tianda Qingyuan Communication Technology Co., Ltd
Tian Da Qingyuan Conference Room Document Monitoring System
NegotiableUpdate on 05/02
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The Tian Da Qingyuan Conference Room Document Monitoring System has the functions of systematizing the management of meeting documents. It can manage important meeting documents and items in place, controllable when going out, and auditable for content. It has planned the process of preparing, conducting, and ending important meetings, strengthened the full process management of important meeting documents, eliminated the hidden dangers of document and item loss during important meetings, and improved the monitoring ability of important meeting room documents
Product Details
Tian Da Qingyuan Conference Room Document Monitoring System
system function
Conference RoomcharacterThe document monitoring system systematically manages meeting documents, ensuring that important meeting documents and items can be managed in place, controlled when going out, and reviewed for content. It has planned the process of preparing, conducting, and ending important meetings, strengthened the full process management of important meeting documents, eliminated the hidden dangers of document and item loss during important meetings, and improved the monitoring ability of important documents in important meeting rooms.
In order to complete this function, the system mainly includes the functions of inputting meeting documents, monitoring meeting documents, collecting meeting documents, and auditing meetings.

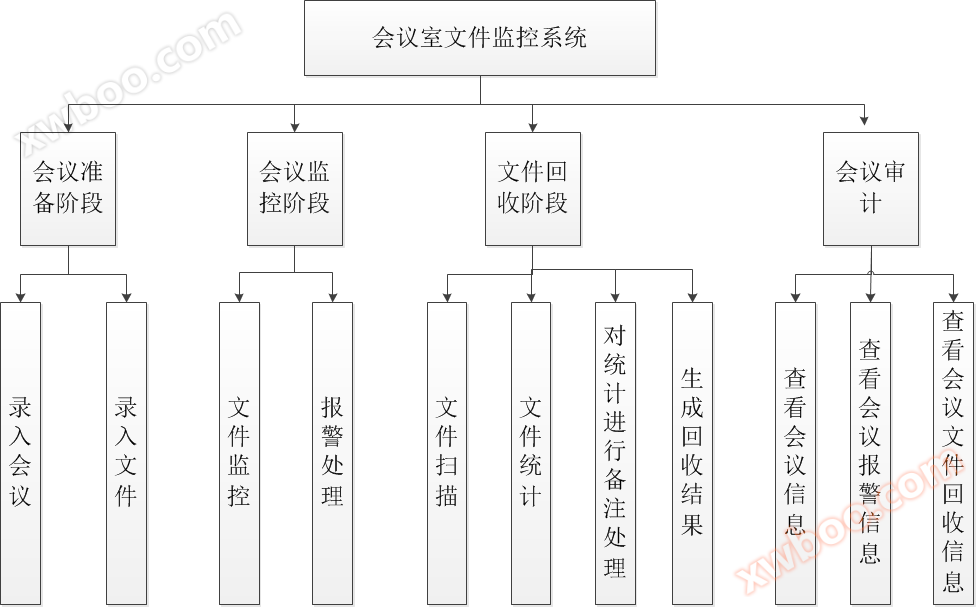

Figure 1 System Functional Architecture Diagram
System composition and deployment
Figure 2 System Deployment Diagram
The system is deployed at the entrance of the conference room, and in practical applications, the antenna is facing the entrance and exit passage of the conference room.
The conference room document monitoring system consists of two parts: hardware and software. The hardware part includes RFID tags, reading and writing devices, antennas, and tablets, while the software part is installed on the tablets.
1. Hardware functions
RFID tag: uniquely encoded, used to bind files, items, etc. one by one, facilitating system collection and identification.
Antenna: Used to activate and collect RFID tag data within the coverage range of the collector.
Reading and writing device: used to collect and process RFID tag data, and send it to the application program.
Tablet computer: Install and deploy application software, perform monitoring initialization, monitoring, recycling, and later audit work.
2. Connections between hardware
Read/write devices and antennas: connected through dedicated feeders.
Reading and writing devices and tablets: Connected through Ethernet cables to complete network communication between the reader and the applications on the tablet.
