Universal intelligent integrated moisture content sensor F-IEC100
NegotiableUpdate on 04/14
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
● Regular collection, reporting and storage of water content and temperature ● Water content, surface tilt early warning and reporting, GPS mobile alarm ● edge computing surface displacement early warning and reporting and storage ● Regular collection and reporting of battery voltage, ambient temperature, signal strength and other working conditions ● Automatic timing of products, automatic warning of abnormal equipment working conditions ● Support for remote early warning linkage and LoRa self-organized network linkage early warning ● Support for serial port and remote software upgrading ● With lightning protection, earthquake resistance and impact resistance ● IP67 waterproof and dustproof grade, anti-corrosion
Product Details
Intelligent integrated moisture content sensorF-IEC100It is a new, universal, intelligent sensor that adapts to various industry applications. It integrates data acquisition, 2G/3G/4G/5G/NB IoT/LoRa wireless communication, power supply, and self-protection to comprehensively monitor soil moisture content and surface tilt. Its main function is to measure soil moisture content and surface displacement at various depths within 0-100cm of the earth's surface. It has the characteristics of moisture content, temperature, angle, and displacement warning triggering, low power consumption, high protection level, easy installation, stable performance, and high reliability.
Guidelines for Combining Monitoring and Early Warning Technologies for Geological Hazards
Requirements for communication technology for geological hazard monitoring
Timely collection, reporting, and storage of moisture content and temperature
Moisture content, surface tilt warning and reporting, GPS mobile alarm
Edge computing surface displacement pre-warning report and storage
Regularly collect and report battery voltage, ambient temperature, signal strength and other working conditions
Automatic timing of products, automatic warning of abnormal equipment operating conditions
Support multiple communication methods and work modes
Support remote warning linkage and LoRa self-organizing network linkage warning
Support reporting function for multiple data centers and primary/backup data centers
Support serial port and remote software upgrades
Built in watchdog ensures long-term stable operation of the system
Adopting a comprehensive anti drop mechanism to ensure that the terminal is always online
The power interface has built-in reverse phase protection and overvoltage protection
Equipped with lightning protection, earthquake resistance, and impact resistance
SIM/UIM card interface with built-in 15KV ESD protection
Soil moisture sensors can be widely used in geological disasters, soil moisture research, flood control and drought resistance, agricultural intelligent irrigation and other scenarios, for monitoring the moisture content of geological disasters, surface tilt, surface displacement, agricultural intelligent irrigation moisture monitoring and other applications.
Guidelines for Combining Monitoring and Early Warning Technologies for Geological Hazards Requirements for communication technology for geological hazard monitoring
Timely collection, reporting, and storage of moisture content and temperature Moisture content, surface tilt warning and reporting, GPS mobile alarm Edge computing surface displacement pre-warning report and storage Regularly collect and report battery voltage, ambient temperature, signal strength and other working conditions Automatic timing of products, automatic warning of abnormal equipment operating conditions Support multiple communication methods and work modes Support remote warning linkage and LoRa self-organizing network linkage warning Support reporting function for multiple data centers and primary/backup data centers Support serial port and remote software upgrades Built in watchdog ensures long-term stable operation of the system Adopting a comprehensive anti drop mechanism to ensure that the terminal is always online The power interface has built-in reverse phase protection and overvoltage protection Equipped with lightning protection, earthquake resistance, and impact resistance SIM/UIM card interface with built-in 15KV ESD protectionSoil moisture sensors can be widely used in geological disasters, soil moisture research, flood control and drought resistance, agricultural intelligent irrigation and other scenarios, for monitoring the moisture content of geological disasters, surface tilt, surface displacement, agricultural intelligent irrigation moisture monitoring and other applications.

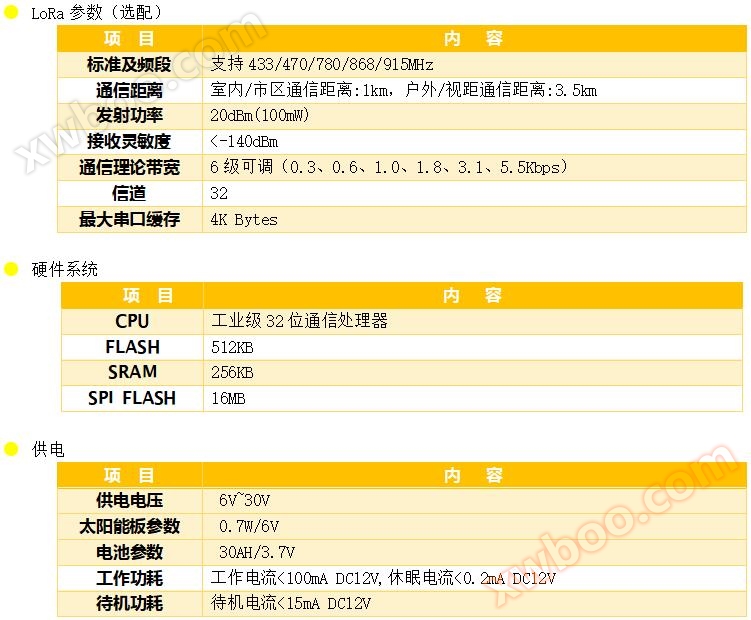

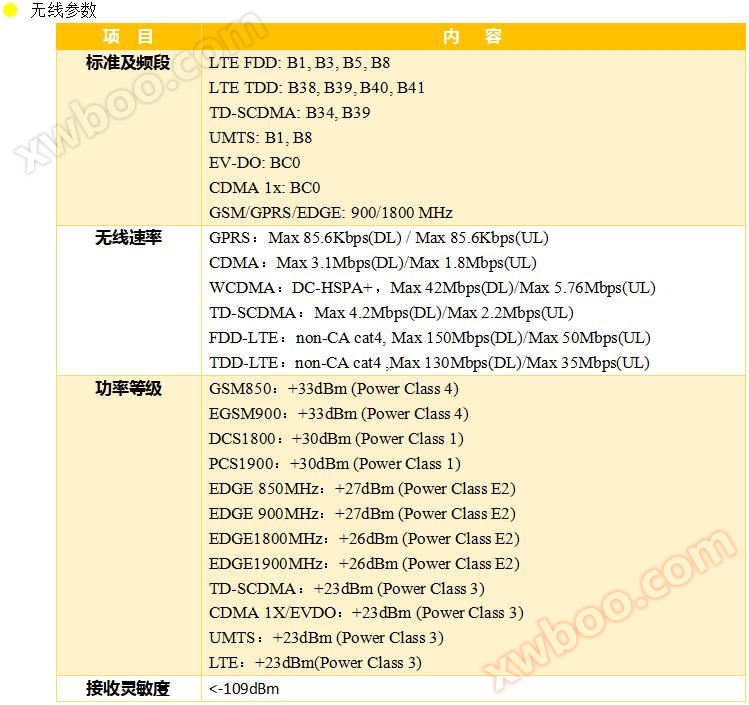

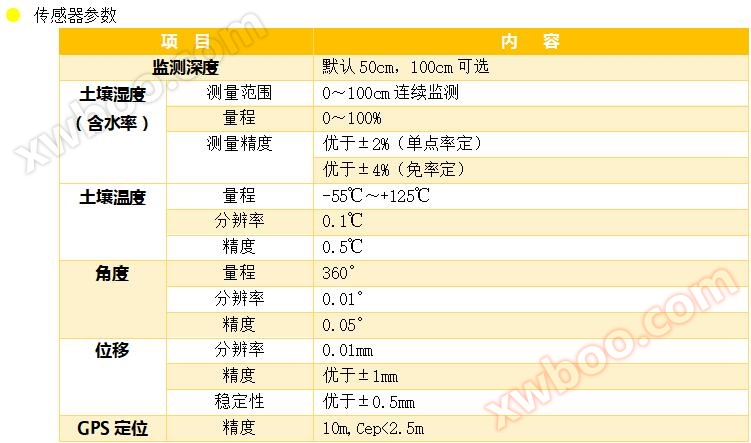

Technical Specifications
