Vortex cyclone refrigeration unit

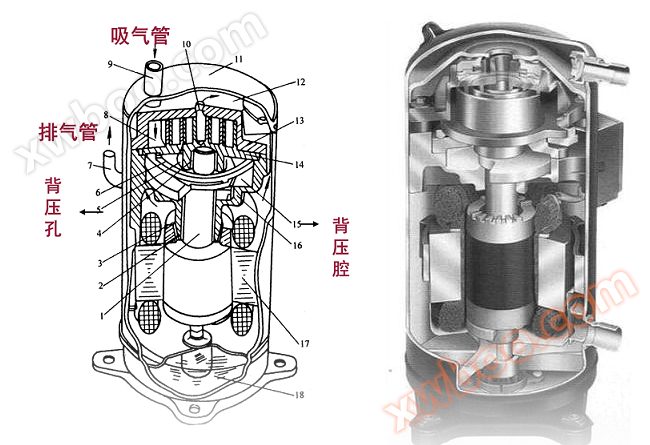

Vortex cyclone refrigeration unitMingtong Refrigeration SelectionEmersonThe valley wheel compressor, as the heart function of the unit, has advantages1. High volumetric efficiency: The pressure difference between adjacent crescent shaped spaces of the vortex compressor is small, with less leakage, no suction and exhaust valves, low resistance, and no expansion of the clearance volume. 2. High adiabatic efficiency: Under the same cooling capacity, vortex compressors are about 10% higher than reciprocating compressors.3. Low noise and minimal overall vibration.4. The valley wheel compressor has a sturdy cast iron body that provides a large heat dissipation area to improve the cooling effect of the compressor, and uses lightweight aluminum pistons to reduce friction and vibration. It also has an electronic protective film block that can provide comprehensive motor protection.

Vortex cyclone refrigeration unit：

Vortex cyclone refrigeration unitFlexible assembly and easy installation. No cooling tower required, suitable for use in water scarce areas or mobile environments. Based on factors such as environmental conditions, water quality, and production needs in various regions, our company offers a variety of models including shell and tube type, box type water pump with water tank type, titanium alloy type, stainless steel type, open type, screw type, evaporative type, split type, explosion-proof type, low-temperature type, and integrated cold and hot type, which are suitable for different places

Vortex cyclone refrigeration unitapplication

1. Chemical industry

Mainly used for cooling chemical reaction vessels (chemical heat exchangers), timely removing the ordinary heat generated by chemical reactions to achieve the purpose of cooling and improving product quality.

2. Manufacturing industries of plastic products, plastic containers, food packaging films, medical packaging films, etc

In the injection molding process of plastic products (such as televisions, computers, washing machines, mobile phones, refrigerators, air conditioners, plastic toys, car plastic parts, etc.), timely and effective cooling (cooling) will directly affect the brightness and qualification rate of the product's appearance, thereby affecting consumption efficiency, consumption costs, and enterprise profits.

The consumption of plastic containers (blowing bottles) and packaging films cannot be separated from refrigerators (ice water machines). If plastic containers are not cooled and shaped in a timely manner during the consumption process, the resulting containers will not be full, the wall thickness will be uneven, the color will not be bright, and even cannot be molded, resulting in lower product quality. Without the cooling and shaping of cold water (air) in the consumption of packaging film, qualified products cannot be produced. If the cold water (air) provided by the freezer (ice water machine) is used for cooling, it can not only greatly improve product quality, but also increase consumption efficiency.

3. Cooling of electroplating solution, hydraulic oil, and machine tool cutting tool coolant

In electroplating consumption, the electroplating solution continuously generates heat during the electroplating reaction, causing the temperature of the electroplating solution to gradually decrease. When the temperature of the electroplating solution exceeds the requirements of the process, it has a significant impact on the stability, uniformity, flatness, and brightness of the surface coating of the electroplated product consumed. Choosing to use a freezer (ice water machine) to freeze electronic components during consumption requires keeping or cooling the components at a specific temperature in order to control the performance parameters of the electronic components in the designed state. Using water to cool and maintain the constant temperature of the electroplating solution will greatly improve the consumption process and efficiency of electroplating.

The cooling of machine tool cutting tool coolant and the control of tool edge temperature will directly affect the application life and product quantity of the tool.

4. Pharmaceutical industry

The pharmaceutical industry is mainly used for controlling the temperature and humidity in the consumption workshop, as well as for removing the reaction heat during the consumption of raw materials

5. Electronic industry

During the consumption process of electronic components, it is necessary to maintain or cool the components at a specific temperature in order to control the performance parameters of the electronic components in the designed state

6. It is widely used in various fields such as papermaking, textiles, brewing, pharmaceuticals, food, machinery, beverages, vacuum coating, electroplating, central air conditioning, etc. It is also commonly used in centralized cooling methods to facilitate centralized pipes
