XSP-00 series biological microscope

The XSP-00 series biological microscope is highly suitable for observing biological sections and specimens in primary and secondary schools, and can also be used for routine biological and pathological testing and analysis in health inspection departments.

Main advantages:

Mechanical cylinder length 160mm

Pure optical glass lens, all optical components are coated with film

The objective lenses are all in focus and the center is consistent

Refined metal gear rack focusing mechanism, comfortable, stable, and durable

● Focusing limit mechanism, which can effectively avoid collision between the objective lens and the glass slide

● Anti slip protection mechanism for focusing handwheel to prevent damage to the focusing system during focusing overload

Metal platform, corrosion-resistant

Metal horseshoe shaped base, sturdy and stable, with a bent arm bracket that can tilt 45 degrees

Product details:

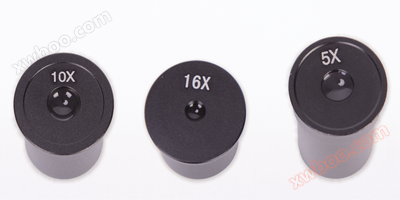

● Eyepiece

Huygens H5X, H10X, H16X

● Achromatic objective lens

4X, 10X, 40X (bullet), 100X (bullet oil)

Metal die-casting fixed single-layer square platform, slicing clamp

Size 120mmX120mm

● Focusing mechanism

Rough adjustment range: 50mm, 20mm

Fine tuning range: 1.8-2.2mm

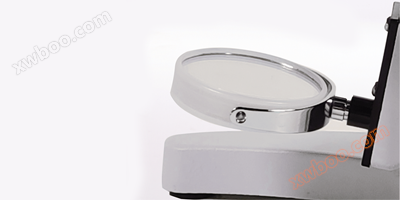

● Flat concave reflector

Diameter: Φ 50mm

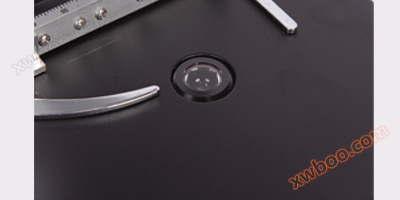

Abbe spotlight

N. A.=1.25， Variable aperture, filter holder

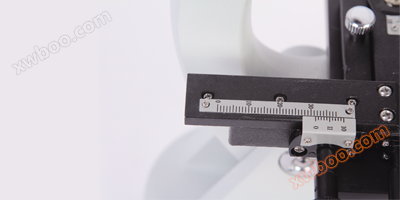

● Mobile ruler

X-axis ± 20mm, Y-axis ± 15mm

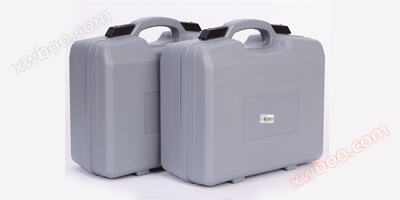

● Packaging

Environmentally friendly wooden box, plastic box
