XZD-YB Explosion proof Vibration Transmitter

XZD-YB Explosion proof Vibration Transmitter

1、 Product Overview

XZD-YBIt is an intrinsic safety integrated explosion-proof vibration transmitter, which integrates a magneto electric speed sensor and a precision measurement circuit, and can directly output standard signals corresponding to the vibration quantity. Its core function is to monitor the vibration intensity (velocity effective value) of rotating machinery and provide continuous 4-20mA current signal output, making it easy to connect to control systems such as DCS and PLC. This product adopts intrinsic safety design, with an explosion-proof rating of Exia Ⅱ CT6 Ga, and can be used in flammable and explosive environments.

2、 Main technical parameters

The following table details the key performance indicators of the vibration sensor:

Parameter category, specific specifications, remarks/explanations

model identificationXZD-YBThe codes in the model correspond to the range, output mode, structure, etc.

Vibration measurement

▪ The "A4" in the model with a range of 0-10 mm/s (true RMS) usually represents this speed intensity range.

▪ The frequency response of 10-1000 Hz covers the common vibration frequencies of most rotating machinery.

▪ Sensitivity 30mV/mm/S ± 5%

▪ Accuracy ± 1% (full scale, at+25 ° C environment)

Output signal

▪ Signal type 4-20 mA standard two-wire system, saving wiring costs.

▪ Maximum load ≤ 500 Ω

Electrical characteristics

▪ The working voltage is DC 24V, and the common allowable range is DC 18-30V.

Temperature parameters

▪ The operating temperature range of -30 ℃~+70 ℃ (some data shows -30 ℃~+120 ℃) refers to the working environment temperature range of the sensor itself.

▪ Storage temperature -35 ℃~+100 ℃

▪ Environmental humidity ≤ 95% (non condensing)

Physical characteristics

▪ The external dimensions are approximately 35mm x 72mm, with a compact design that is easy to install.

▪ Installation thread M10 × 1.5

▪ Weight approximately 0.3kg

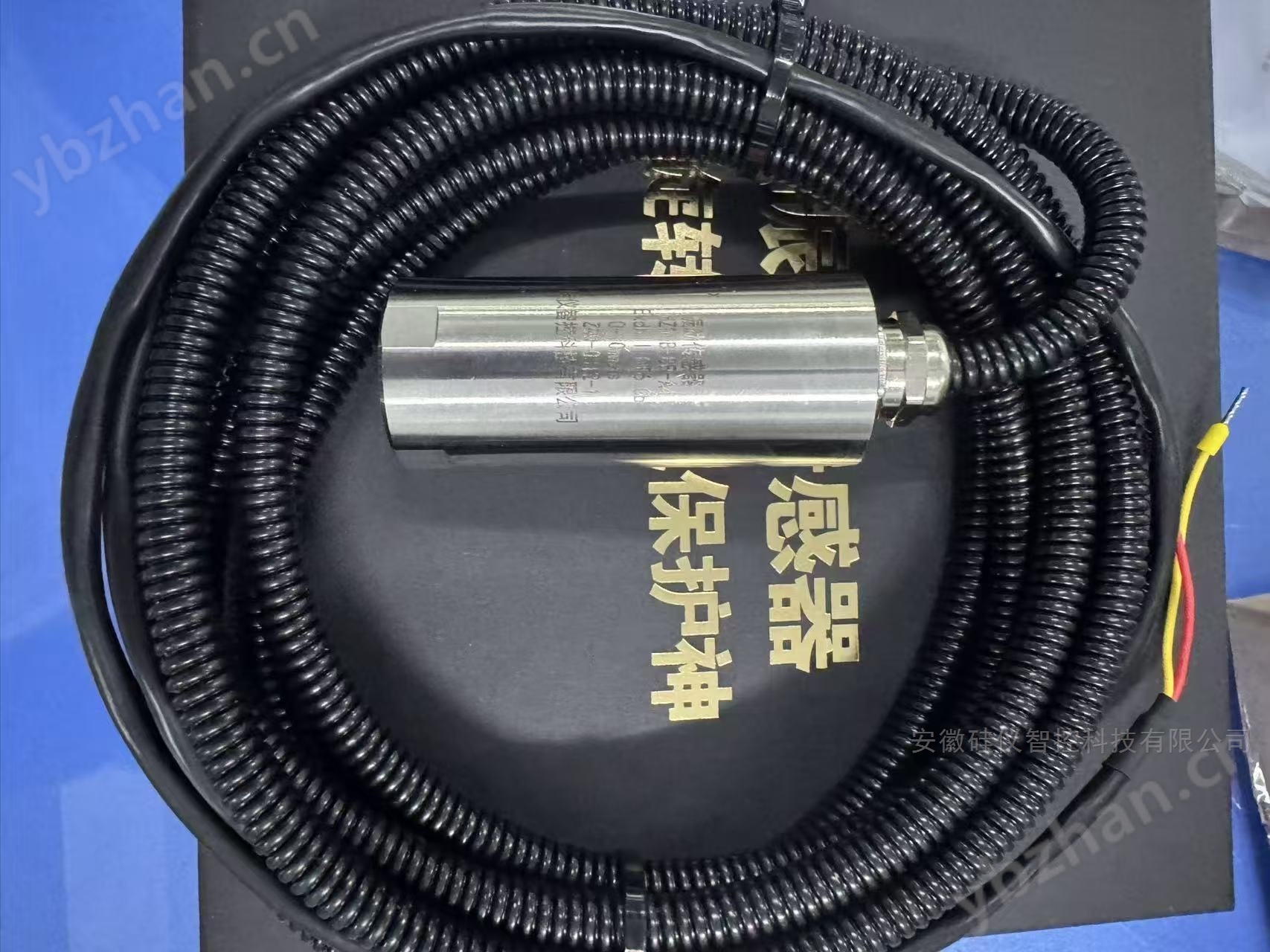

YZHB-A4-B1-C1-D6-E2-F2-G1 Explosion proof Vibration Sensor

3、 Explanation on Temperature and Oil Level Monitoring

It should be noted that based on existing information,XZD-YB Explosion proof Vibration TransmitterThe main function is to monitor mechanical vibration. In its standard function, the oil level monitoring function is not directly integrated.

In terms of temperature parameters, the temperature indicators listed in the table mainly refer to the ambient temperature range within which the sensor can operate normally, rather than its ability to actively measure the temperature of the external environment. This sensor is mainly used to measure the vibration of parts such as the casing and bearing seat.

If your application scenario requires simultaneous monitoring of vibration, temperature, and oil level, the usual solution is to equip the system with independent temperature sensors, oil level sensors, or specialized multi parameter monitoring instruments that work in conjunction with the YZHB vibration sensor.

4、 Installation and wiring requirements

1. Installation position: Choose a position that can truly transmit rotor vibration to the bearing box or casing. The installation surface should be flat and can be installed horizontally or vertically.

2. Installation method: Prepare a platform on the casing, open M10 × 1.5 screw holes, and fix the sensor with bottom screws or double headed screws to ensure a tight fit between the bottom and the casing.

3. Wiring specifications:

·Use shielded cables for connection.

·Usually, the red wire is connected to the positive terminal of the DC24V power supply, and the blue wire is connected to the negative terminal of the power supply. These two wires are also 4-20mA output leads.

·When wiring, avoid parallel connection with strong interfering power lines and control cables.

4. Safe operation: It is strictly prohibited to carry out disassembly or wiring operations while live.

5、 Typical applications

This sensor is an ideal choice for vibration monitoring of the following types of rotating machinery:

·Power equipment: fan, compressor, steam turbine, water turbine

·Fluid machinery: water pump, air compressor

·Power unit: motor, generator

·Transmission equipment: gearbox

6、 Troubleshooting tips

If there is measurement drift or instability, you can check in sequence:

1. Are all mechanical connection parts securely fastened.

2. Check if the sensor installation is loose.

3. Are all electrical connections secure.

4. Whether the grounding of the shielding layer is reliable.

5. Is there any abnormal heat source around the sensor that causes it to exceed the operating temperature range.
