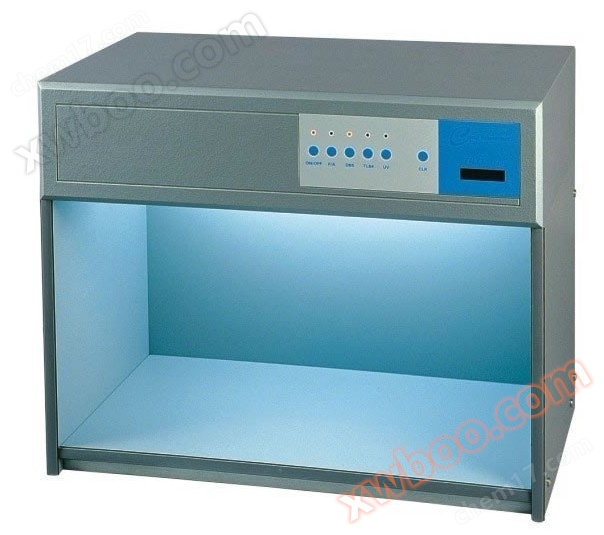

YQ60 (4) Color matching lightbox for printing and dyeing

YQ60 (4) Color matching lightbox for printing and dyeingProduct Introduction

YQ60 (4) Color matching lightbox for printing and dyeingadvantage

Display the usage time and total time of each light source

The light source automatically switches and has the function of same color but different spectra

No preheating required, no flashing, ensuring fast and reliable color evaluation

Low energy consumption, no heat generation (no need for heat dissipation), high luminous efficiency

Small size, easy to use, and low price

YQ60 (4) Color matching lightbox for printing and dyeingLight source description

D65 standard artificial daylight color temperature: 6500K power: 20W model: F20T12/65 AiSe Li Pin, Canadian made lamp tube.

Philips brand

TL84 European, Japanese, and Chinese store light source Color, temperature: 4000K Power: 18W Philips brand

F family hotel lighting, colorimetric reference light source Color, temperature: 2700K Power: 40W Philips brand

YQ60 (4) Color matching lightbox for printing and dyeingexplain:

Standard light sources are widely used in the field of color management in various industries, for accurately checking the color deviation of goods.

Because different light sources have different radiation energies, they will appear different colors when shining on objects. Color management in industrial production, although quality inspectors have carefully compared the colors of goods, it is difficult to determine the color difference of goods due to non-standard environmental light sources or inconsistent light sources with those used by customers, resulting in different colors seen under different lighting conditions. Customers may complain or even return goods due to color differences exceeding the standard range during inspection, which seriously affects the company's reputation.

To effectively solve the above problems, a useful method is to use the same light source and controllable conditions when inspecting the color of goods. For example, seven color artificial sunlight is often used in general standards（CIE D65--Artificial Daylight 6500KColor temperature is used as a standard light source to evaluate the color of goods.

Especially during night shifts, it is particularly important to use standard light sources to detect color deviations in goods.

The standard light source box can provideD65In addition to the light source, it also providesTL84、CWF、UV、A／FWaiting for light source, with the function of testing the same color spectral effect.

YQ60 (4) Color matching lightbox for printing and dyeingWidely used in various industries such as textiles, toys, printing and dyeing, plastics, paints, inks, printing, pigments, chemicals, ceramics, footwear, leather, hardware, food, etc. for color management and visual evaluation of color fastness, color matching sampling, identification of color differences and fluorescent substances, etc., enabling samples, production, quality inspection, and acceptance to be carried out under the same standard light source, accurately checking the color deviation of goods, and ensuring that the color quality of goods meets the requirements. Thus improving product quality and market competitiveness.
