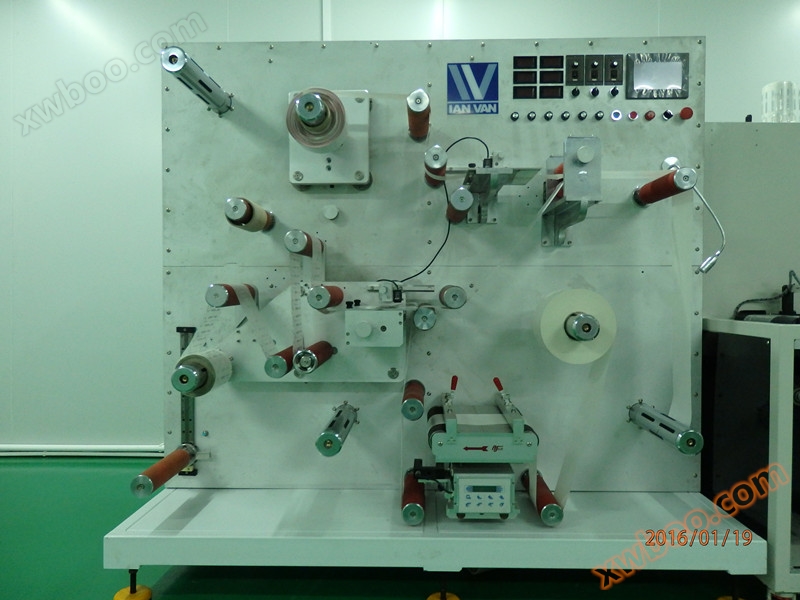

Zhiling TF200-1 Electronic Label Compound Machine

Product Introduction

Zhiling SeriesThe electronic tag laminating machine is a device used for laminatingRFIDEfficient and high-precision production equipment for electronic tags.

Product Features

1. InlayThe conveying is driven by servo motors, with an accuracy of ±0.2mm；

2. The discharge shaft is driven by an inflatable shaft and a magnetic powder clutch, while the receiving shaft is driven by a speed regulating motor and an inflatable shaft

The shaft and magnetic powder clutch are driven together to maintain a stable and constant tension, ensuring the composite accuracy of the product;

(Inflatable shaft and hand expandable shaft are optional Magnetic powder, servo motor optional)

3. Adopting a correction system to effectively eliminate material transmission deviations;

4. existINLAYThe feeding and adding fine-tuning device can be adjusted at any time during the production process

5. Equipped with an electrostatic cleaning system to effectively protect the chip and improve the qualification rate;

6. Select high-quality materials to ensure the durability and stability of the equipment;

7. Processing materials with wide width200 mmSatisfyRFIDLabel requirements;
