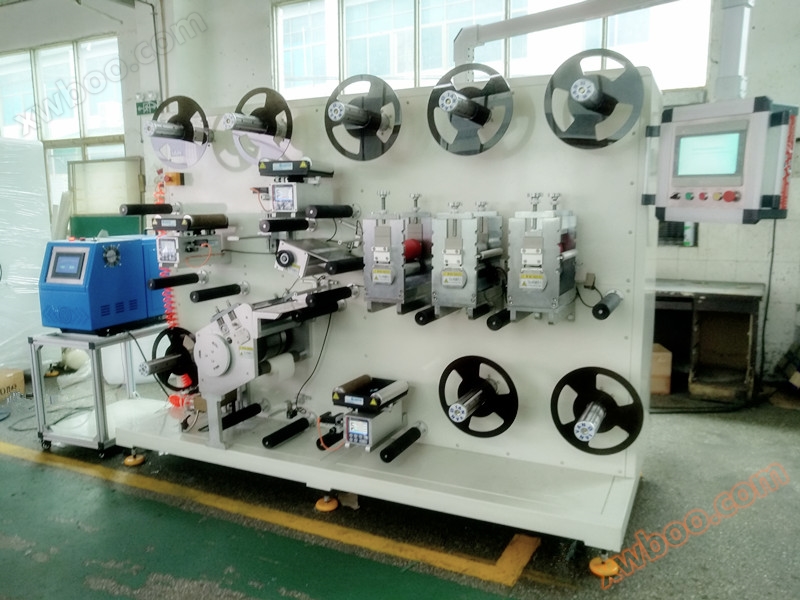

Zhiling TF200Z-2L2 Electronic Label Composite Die Cutting Production Line

Product Introduction ：

The Zhiling series electronic tag laminating machine is used for laminatingRFIDEfficient and high-precision production equipment for electronic tags.

Product Features:

1.Adopting high-performance technologyPLCThe combination of human-machine interface and dedicated controller improves control accuracy, ensures system compatibility, and greatly reduces equipment failure rate

2Equipped with label tracking function, it can perform high-precision repetitive die cutting; Can achieve post press die-cutting and online marking multi-layer composite+Die cutting function;

3Die cutting/Composite mold seat fully servo driven, independently adjustable, with cutting accuracy up to±0.15mm；

4Efficient anti sticking treatment of tension shaft reduces factors of unstable tension and improves the precision of composite die-cutting;

5Can add auxiliary feeding axis;

6Can increase the mold seat, stack the blade molds, or use large-diameter blade molds;

7The user interface is entirely in Chinese, making it easy for operators to get started and saving training time;

8Mobile integrated operation interface, reducing the probability of damage and improving operational efficiency;

9High precision automatic correction system ensures the smooth operation of materials;

10. Standard mold seat design, good compatibility with the cutting die, saving mold development costs;

11. Can perform stable full and half cutting operations without the need for manual adjustment or bottom filling;

12Machine speed:0－50M/MIN,Maximum width of raw materials200MMThe maximum die-cutting thickness of raw materials0.9MM; SatisfiedRFIDRequirements for label production;

13Die cutting reliably achieves half cutting operation, with the minimum thickness of the base paper0.025MM．

14. The feeding shaft is driven by a combination of an inflatable shaft and a magnetic powder clutch, while the receiving shaft is driven by a speed regulating motor, an inflatable shaft, and a magnetic powder clutch to maintain a stable and constant tension, ensuring product composite accuracy;(Magnetic powder and servo motor are optional for material feeding and unloading

15. atINLAYThe feeding and adding fine-tuning device can be adjusted at any time during the production process

16. Equipped with an electrostatic cleaning system to effectively protect the chip and improve the qualification rate;

17. The machine adjustment time is short, and the loss of raw materials during mass production can be ignored. After debugging, the device runs stably.

18. The adhesive unit has stable performance, can achieve full coating and fixed length spraying, high degree of freedom, and can save costs.

19. The vacuum roller cutting unit can realize the whole roll Inlay machine, and when combined with the glue coating unit, it can save a lot of glue costs

20. The machine is easy to operate, with low requirements for operators. The design concepts of modularity, standardization, and humanization are constantly reflected in the production process.
