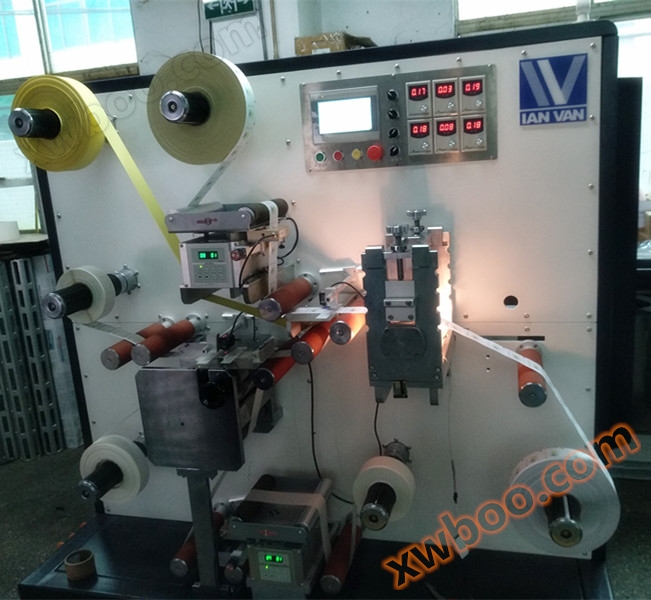

Zhiling TFZ200-1 Electronic Label Compound Machine

Product Introduction ：

The Zhiling series electronic tag laminating machine is used for laminatingRFIDEfficient and high-precision production equipment for electronic tags.

Product features:

1.Adopting high-performance technologyPLCThe combination of human-machine interface and dedicated controller improves control accuracy, ensures system compatibility, and greatly reduces equipment failure rate

2Equipped with tag tracking function, it can achieve online tag tracking and multi-layer compositefunction;

3．Composite mold seat fully servo driven, independently adjustable, with cutting accuracy up to±0.15mm；

4Efficient anti sticking treatment of tension shaft reduces factors of unstable tension and improves the precision of composite die-cutting;

5Can add auxiliary feeding axis;

6The user interface is entirely in Chinese, making it easy for operators to get started and saving training time;

7High precision automatic correction system ensures the smooth operation of materials;

8. The vacuum roller cutting unit can be installed on the machine as a whole roll of Inlay Save a lot of time and cost;

9. The feeding shaft is driven by a combination of an inflatable shaft and a magnetic powder clutch, while the receiving shaft is driven by a speed regulating motor, an inflatable shaft, and a magnetic powder clutch to maintain a stable and constant tension, ensuring product composite accuracy;(Magnetic powder and servo motor are optional for material feeding and unloading

10. existINLAYThe feeding and adding fine-tuning device can be adjusted at any time during the production process

11. Equipped with an electrostatic cleaning system to effectively protect the chip and improve the qualification rate;

12. The machine adjustment time is short, and the loss of raw materials during mass production can be ignored. After debugging, the device runs stably;

13. The machine is easy to operate, with low requirements for operators. The design concepts of modularity, standardization, and humanization are constantly reflected in the production process;

14. The whole machine is compact and compact, with dimensions of 1800 * 1700 * 1200mm, making it easy to operate.
