shineso automated colony-counter

1shineso automated colony-counterProduct Introduction

shineso automated colony-counterIt is an automatic colony counting system that integrates image acquisition, data processing, and statistics. It is widely used in the fields of food, medicine, cosmetics, environmental monitoring, medical and health care, and scientific research institutions for colony counting. This instrument adopts advanced digital image processing technology and has fluorescent bacteria recognition and sterilization functions. It can achieve fast, accurate, and fully automatic counting of colonies in culture dishes, significantly improving experimental efficiency and reducing manual errors.

2、 Performance indicators

1. Imaging device

Fully enclosed dark box, capable of eliminating stray light interference from the external environment

Tri color LED visible light

Built in 254nm ultraviolet lamp, capable of sterilizing, disinfecting, and inducing mutations in the cavity

Built in 366nm ultraviolet lamp can excite bacterial fluorescence, meeting the needs of counting Escherichia coli and observing green fluorescent protein

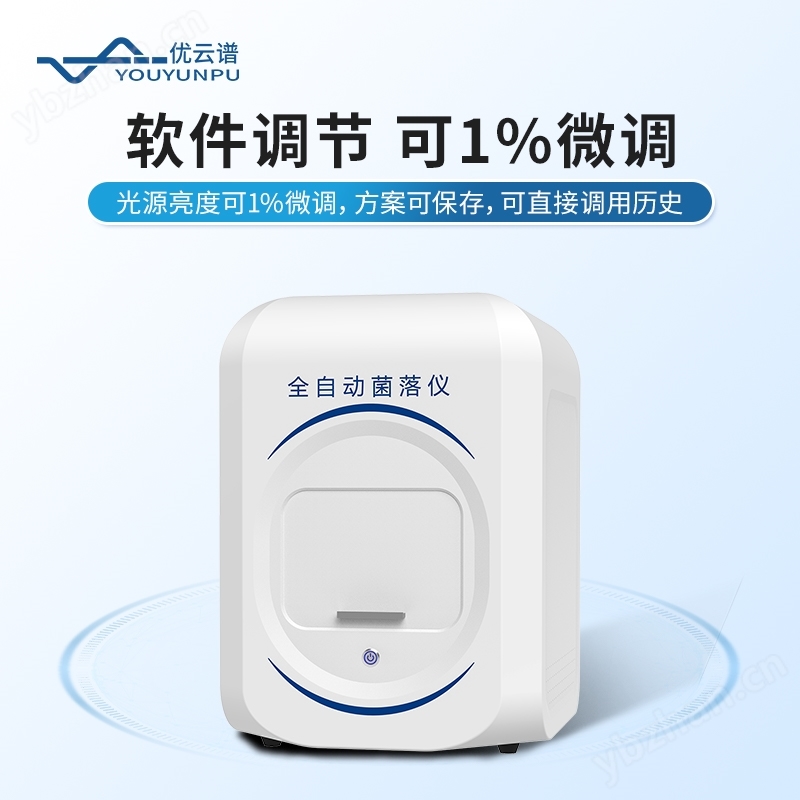

★ The brightness of the upper and lower light sources can be freely adjusted and turned on/off through software

★ The intensity of the light source can be freely adjusted, and the light source scheme can be saved for convenience

20 million pixel ultra clear color camera;

12 million pixel 12mm high-definition lens

★ Minimum detectable colony size: 0.04mm

★ Counting accuracy: ≥ 98%

★ Counting time: 1200CFU/S

Suitable diameter for petri dishes: standard 90-100mm (other smaller petri dishes placed in the center of the aperture)

2. Software functions

1) 7 modes of classification, one click counting:

One click counting of dispersed bacteria

One click counting of adhesive bacteria

One click counting of microorganisms

One click counting of large bacterial colonies

Compact Dry Black Grid ™） One click counting

Grid Filter Membrane (RIDA) ™） One click counting

One click counting of bacteria with similar backgrounds

2) Auxiliary statistical tools

Manual correction: Double click with the mouse to add or delete missing colonies; Box select to add or remove missing colonies

Intelligent correction: Based on one click statistics, intelligent correction can be performed

Measurement tools: angle, line segment, area, curve

Removal of contaminating bacteria (impurities): Remove impurities based on color, diameter, and roundness

Single colony morphology analysis: Clicking on a single colony can reveal information such as roundness, diameter, circumference, and area of the colony

All colony morphology: After statistics, the roundness, diameter, circumference, area, and other information of all colonies on the plate can be obtained

Colony size classification: After counting, display the colony size in 25 categories based on the contour size of each colony

Conversion of total number of bacterial colonies in the sample: Based on the actual diameter of the culture dish and the dilution of the sample, automatic conversion is achieved
